INSTALLATION [continued]

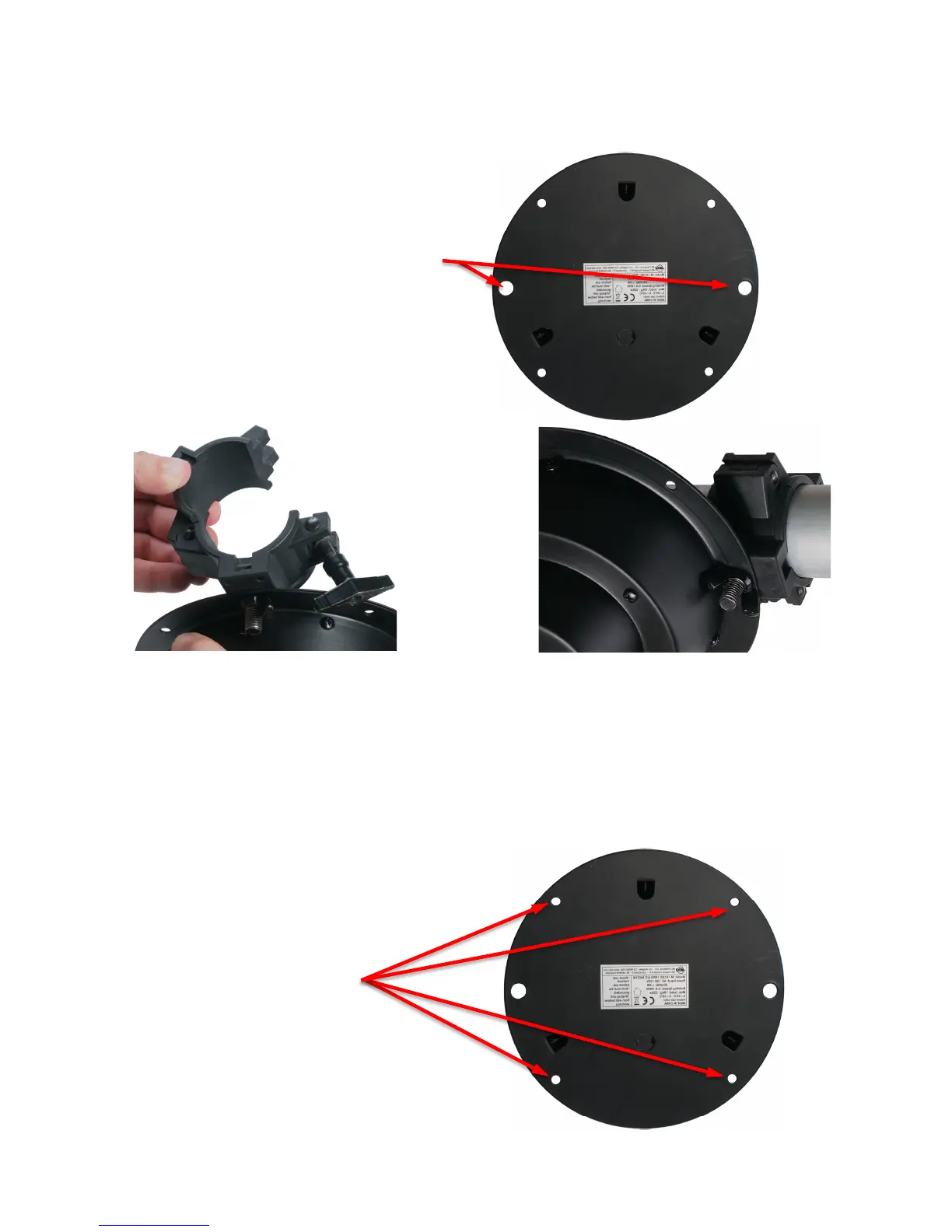

CLAMP / TRUSS MOUNTING
Attach clamps securely to the mounting holes
on the motor. Make sure clamps are firmly
attached to the motor before mounting to truss.
Attach motor to truss with both clamps making
sure the motor is fully secured.
CEILING MOUNTING
Motor can be mounted onto a flat ceiling surface using the (4) mounting holes along the outside
edges. Ceiling surface must support 10 times the combined total weight of the motor and the attached
mirror ball.
Motor can be mounted to truss
using (2) ADJ clamps (not included)
attached to the (2) larger mounting
holes on each side of the motor.
Ceiling mounting holes
