ADJ M-101HD - Light Source Setup; Mounting the Light Source

13

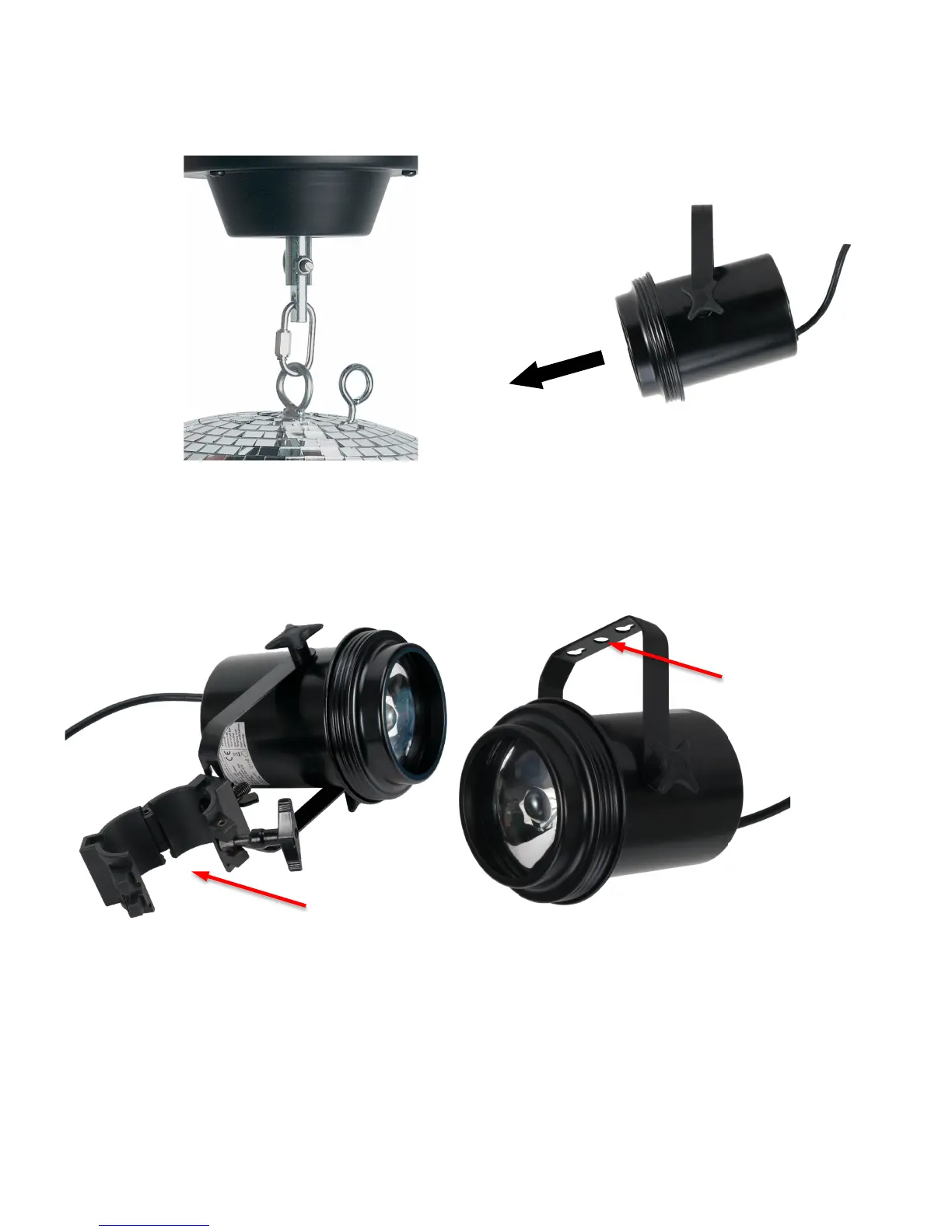

AIMING LIGHT SOURCE
Experiment with different angles and distances before mounting light to achieve desired result.
MOUNTING LIGHT SOURCE
Light can be mounted onto a truss using an ADJ (not included) clamp, or a flat surface using the
mounting yoke holes along the inside. Ceiling surface must support 10 times the total weight of the light.
Ceiling
mounting
holes
ADJ Clamp
(Optional)
