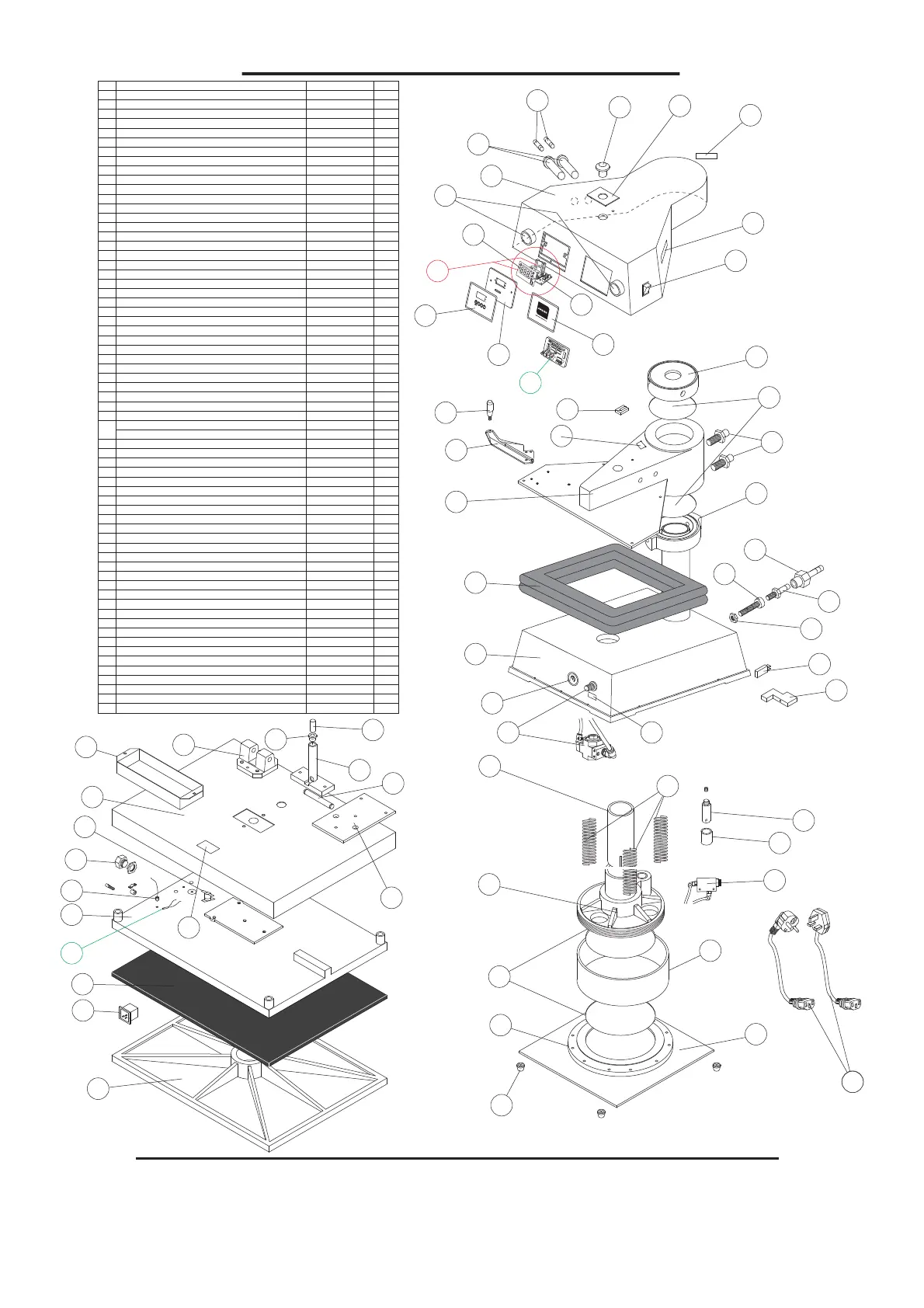

5.3 Exploded Diagram and Parts List
Page 16
No. Description Part No. Qty.
1 Emergency stop button complete AME340 1
2 Cycle start buttons AME311 2
3 Instrument cover AME111 1
4 Controller complete BMC322/COMP 1
4a Front controller LED (buzzer board) BMC322/A 1
4b Back controller power board BMC322/B 1
4c Controller back plate AM628/C 1
4d Green button controller BM322/YF 1
5 Green rocker switch BM448 1
6 Overlay R/H Adkins Major fascia BM629 1
7 Pivot post top cap AMC106 1
8 Micro switch cam AMC373 1
9 Pivot "o" ring AMC204 2
10 Swing arm handle BMC508 1
11 Arm AMC110 1
12 Swing head AMC103 1
13 Micro switch AM312 1
14 Pivot post stop colar AMC107 1
15 Insulation cover dark grey AMC27 1
16 Terminal box BMC460/3 1
17 Terminal box gland and nut BMC460/2 1
18 Standard fuse holder BMC468 2
19 1/8 standard BSP grease nipple BMC201 2
20 Overlay L/H touch pad fascia AM628 1
21a PTFE ring probe FP3057/5 1
21b PTFE bullet probe BM478/PTFE 1
22 Thermal cut out BM338 1
23 PTFE pillar AMC207 4
24 Guide post insulator BM247 1
25 Hollow guide post AMC332 1
26 Yoke AMC108 1
27 Yoke pin BMC22/C 1
28 Adaptor plate AMC353 1
29 15 x 20 Heat plate (inc loom) BMC460/COMP 1
30 Non adhesive silicone pad 38 x 50 cm BMC341 1
31 Mains lead Maxi/Major 2 pin BMC619 1
Mains lead Maxi/Major 3 pin BMC617 1
32 Major table 15 x 20 AMC113 1
33 Socket for mains lead BMC426 1
34 Base AMC101 1
35 Quick release socket check unit AMC352/O 1
36 Fibre washer AM342 1
37 Capacitor AM323 1
38 Solenoid valve comp with fitting AMC352/D 1
39 Table spigot AMC114/ME 1
40 Compression spring AMC201A 3
41 Anti rotation pin AMC117 1
42 Olite bush BMC321/S 1
43 Piston and sleeve AMC104 1
44 Piston "o" ring AMC203 2
45 Piston bore sleeve AME112 1
46 Cylinder end cap AME105 1
47 Base board BM335 1
48 Rubber foot SW33 4
49 Foam gaiter AM327 1
50 Gauge AMC352/C 1
51 Regulator AM352U/A 1
52 Exhaust valve AMC352/M 1
53 Bulk head AMC352/I 1
54 Male adaptor AMC352/N 1
55 Emergency stop plastic label AM325 1
56 Live electric connections label MPC6549 1
57 Caution live fuse label BMC470 1
58 Caution hot label MPC6548 1
59 Max pressure label AMC326 1
60 12.5 Amp fuse BM356 2
* Parts for older machines
* Controller complete
37
34
SMC
MPA
psi
35
38
14
12
1
8
10
11
7
2
9
5
18
13
59
49
57
56
19
A
CT
T
E
MP
S
E
T
T
IM
E
50
36
54
53
51
55
47
46
48
44
45
41
39
40
43
33
42
32
30
31
27
23
17
22
29
28
21a
25
24
16
15
58
52
6
4a
4b
4c
3
26
60
20
4
4d
21b
UK
EU
31
