Advanced RF Technologies, Inc.
8.2.1 Navigation Tree
The navigation tree located on the left hand side of the Web-GUI allows the user to switch between the
various modules that are connected to the system.

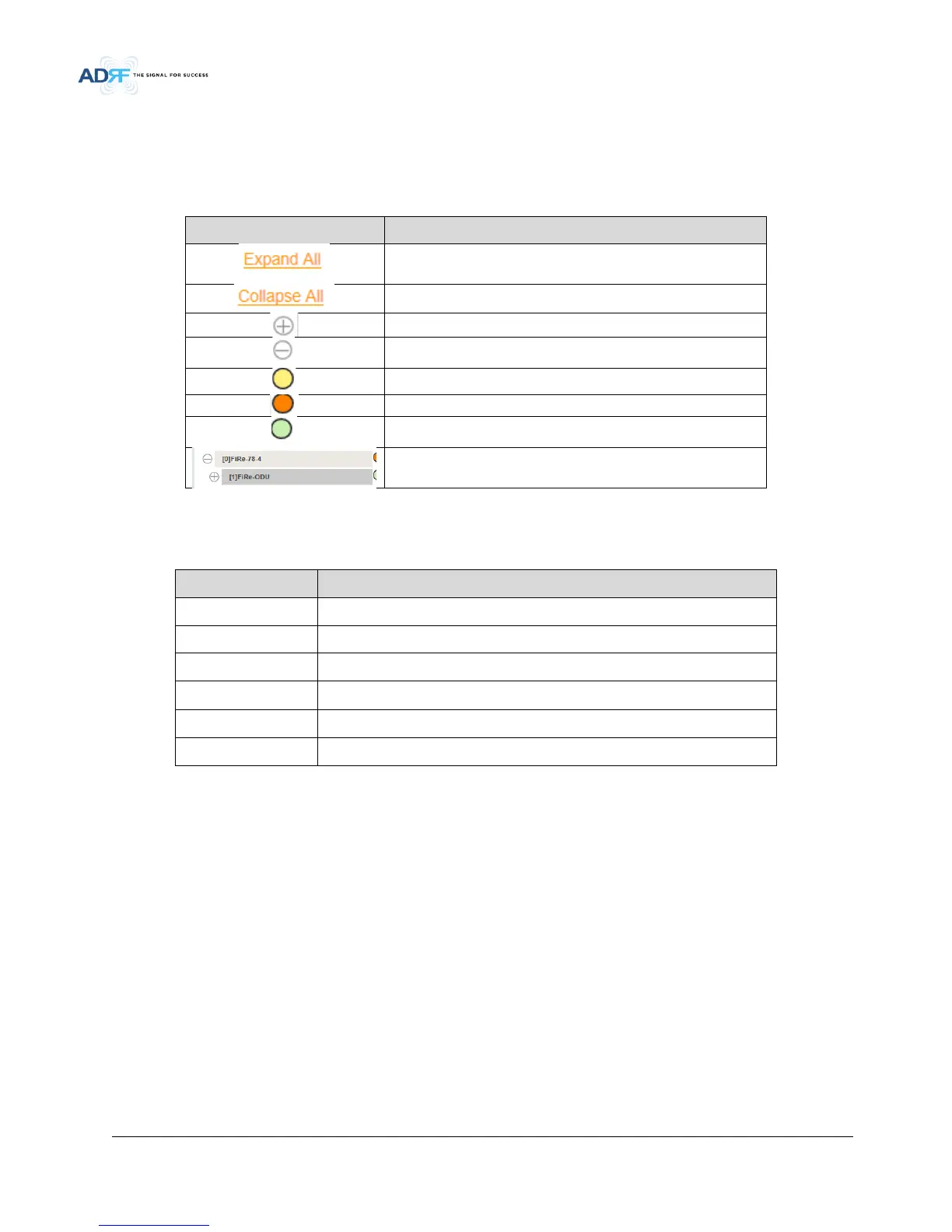

Table 7-1 Navigation tree
Parameters Description
Expands the entire navigation tree
Collapses the entire navigation tree
The module has the expandable subordinate modules
The branch is currently expanded
The module has soft fail alarm
The module has hard fail alarm
The module has no alarms (normal)
The selected module will have bright gray color
8.2.2 System Summary
Table 7-2 System Summary Description
Parameters Description
Connected Display the number of modules physically connected to ADXV DAS
Soft Fail Display the number of soft fail present on each module
Hard Fail Display the number of hard fail present on each module
Link Fail Display the number of link fail present on each module
Not Commissioned Display the number of non-commissioned or commission failed module
Commissioned Display the number of successfully commissioned module
8.2.3 Band Info
The Band Info section displays frequency information along with the corresponding bandwidths that have been
set from the Install tab. Input levels for each channel are also displayed in this section.
