ADS

EOS

Extraoral

Suction

System

,

Instructions

For

Use

and

installation

ADS

Dental

System

2

.

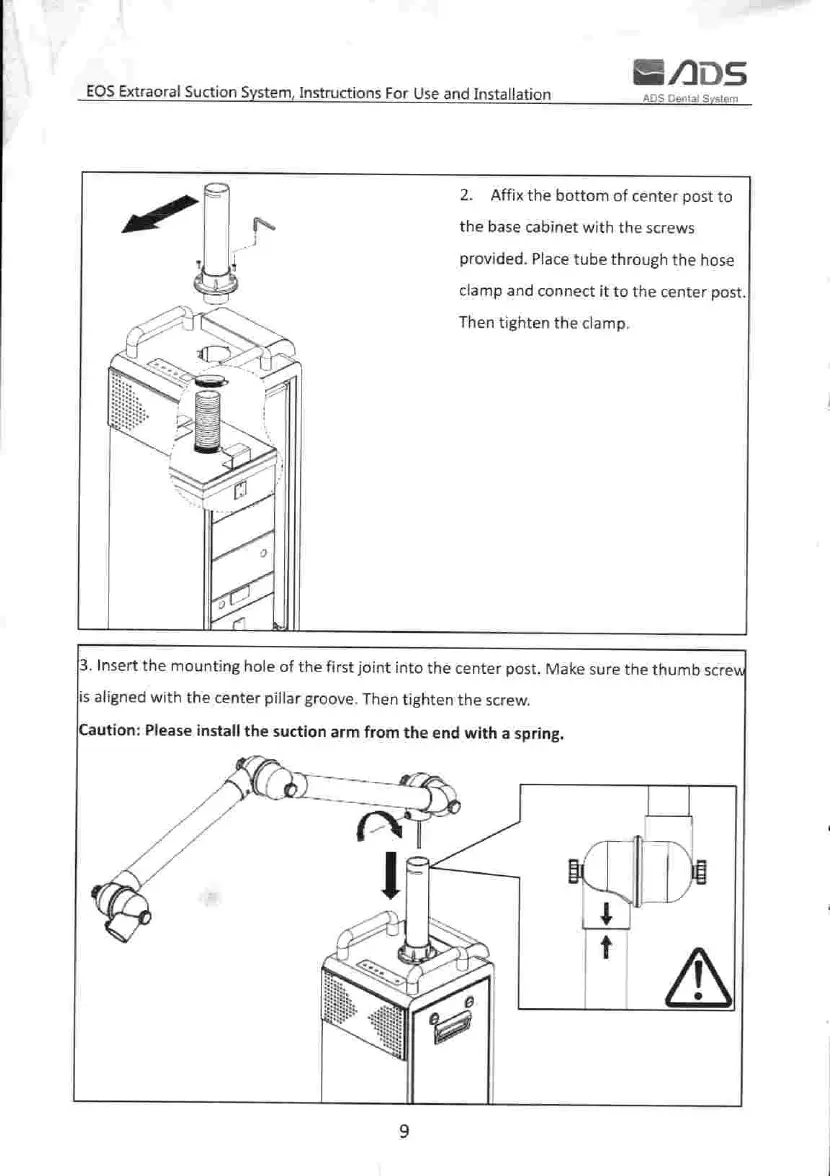

Affix

the

bottom

of

center

post

to

the

base

cabinet

with

the

screws

provided

.

Place

tube

through

the

hose

clamp

and

connect

it

to

the

center

post

.

Then

tighten

the

clamp

.

3.

Insert

the

mounting

hole

of

the

first

joint

into

the

center

post

.

Make

sure

the

thumb

screw

is

aligned

with

the

center

pillar

groove

.

Then

tighten

the

screw

.

Caution

:

Please

install

the

suction

arm

from

the

end

with

a

spring

.

SC

See

MD

ATT

1

A

9
