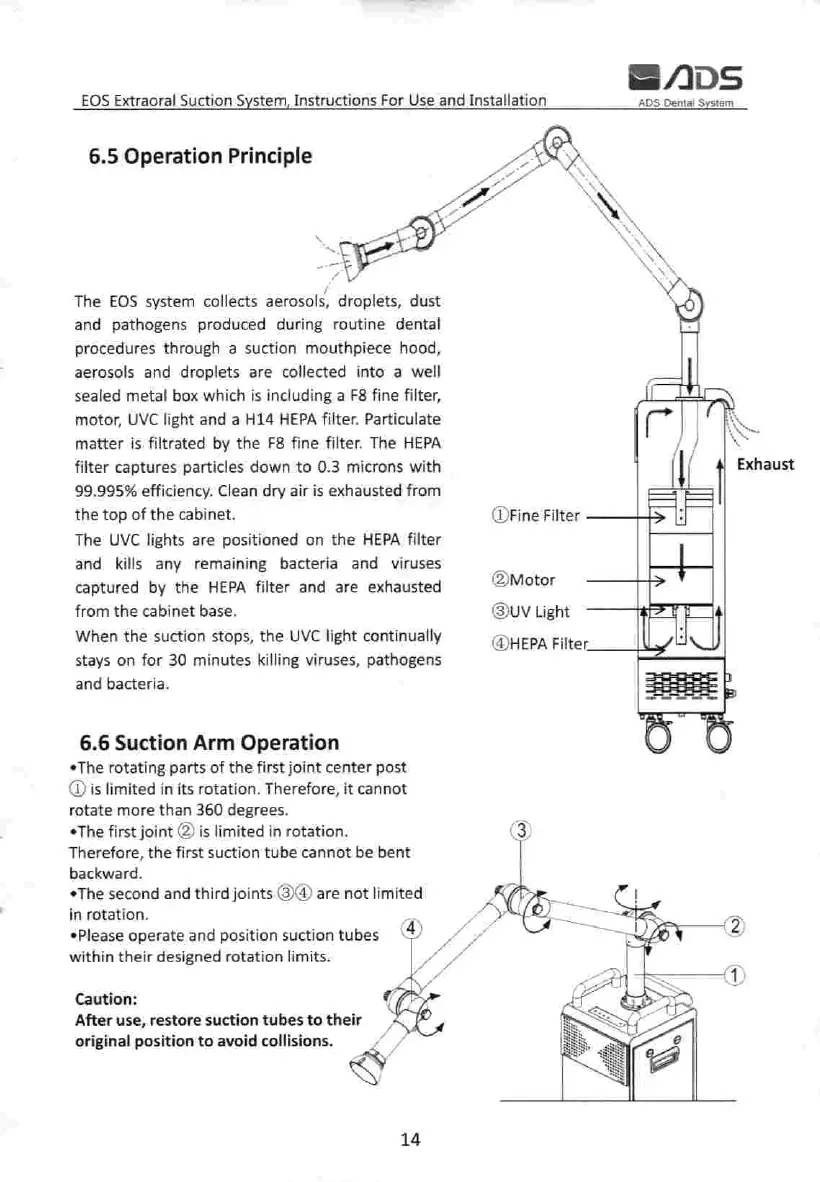

6.5 Operation Principle
Exhaust
The EOS system collects aerosols , droplets , dust
and
pathogens
produced during routine
dental
procedures through a suction mouthpiece hood ,
aerosols and droplets are collected into a well
sealed metal box which is including a F8 fine filter ,
motor , UVC light and
a H14 HEPA
filter .
Particulate
matter is filtrated by the F8 fine filter . The HEPA
filter
captures
particles down to 0.3
microns with
99.995 % efficiency
. Clean dry air is exhausted
from
the top
of the
cabinet .
The UVC lights are positioned on the HEPA filter
and kills
any
remaining bacteria and
viruses
captured
by the HEPA
filter and are
exhausted
from the
cabinet base .
When the suction stops , the UVC light continually
stays on for 30 minutes killing viruses , pathogens
and bacteria .
Fine Filter
2
Motor
3
UV
Light
HEPA
Filter
6.6
Suction Arm
Operation
• The rotating parts of the first joint center post
is limited in its rotation . Therefore , it cannot
rotate more than 360 degrees .
• The first joint
2 is limited in rotation .
Therefore ,
the first suction tube cannot
be bent
backward .
The second and third joints 34 are not limited
in rotation .
.Please operate
and position suction tubes
within their designed rotation limits .
1
Caution :
After use
, restore suction
tubes to their
original position
to avoid
collisions .
