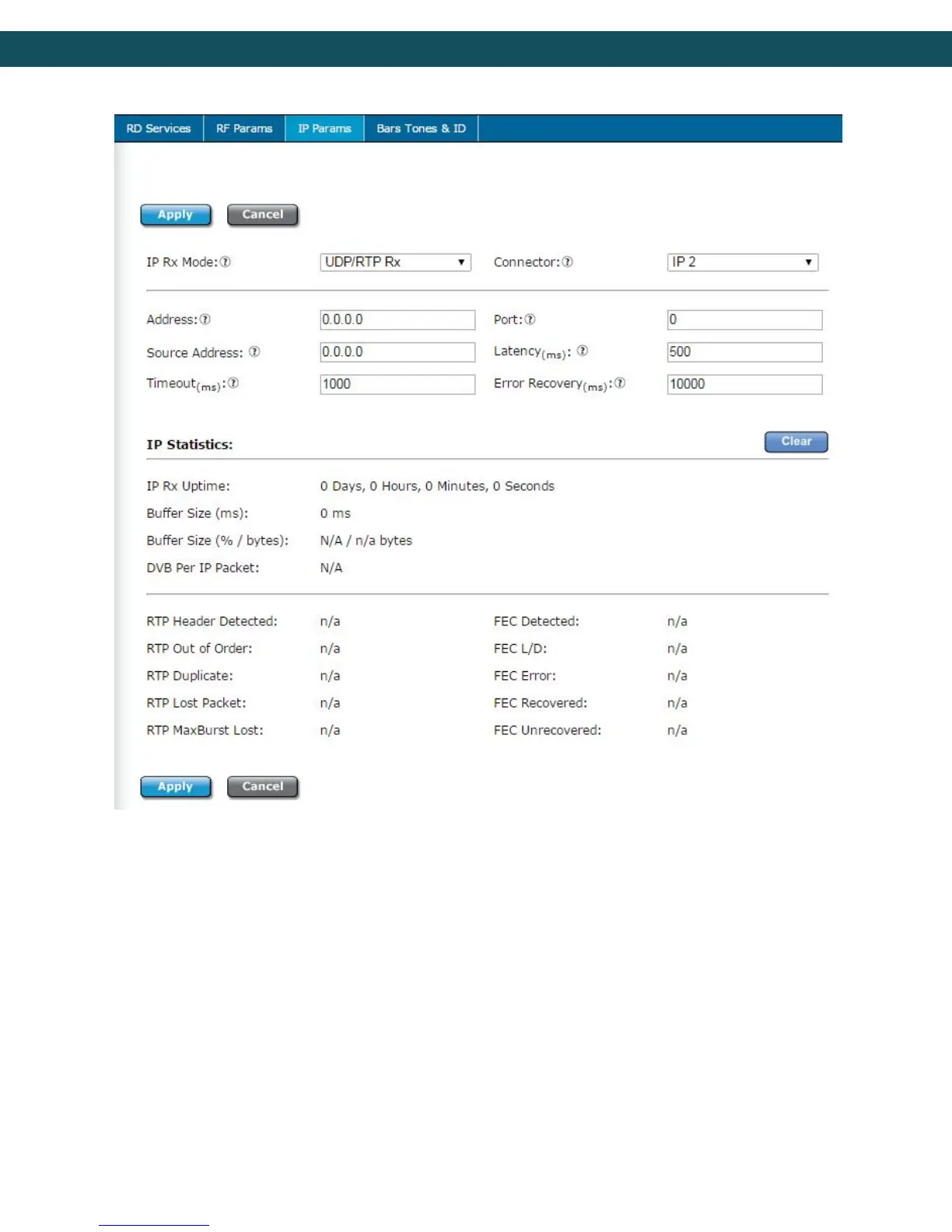

IP Rx Mode - Selects where the receiver should automatically detect UDP/RTP/FEC streams
(UDP/RTP), whether it is setup for TCP, ZIXI-Link or ZIXI Rx. The IRD needs rebooted
when changing between TCP/Zixi and UDP/RTP and will be prompted via the Web interface.
TCP and Zixi are not configurable via SNMP or Front Panel at this time.
Connector - Multicast Connector setting sets the physical connector (on the rear of the
unit) to use for IP receive purposes. The appropriate interface will be used based on this
connector setting. Currently, IP 1 (0) and IP 2 (1) connectors are supported.
Address - UDP/RTP Mode: Multicast IPA sets the multicast receive Group IP address. IP
Multicast receiving is supported from compatible streamers. The range of the multicast
group IP is 224.XXX.XXX.XXX to 239.XXX.XXX.XXX - Where 0 <= XXX <= 255.
Note: If a unit is receiving a unicast, the address field is ignored. A value of 0.0.0.0 can be
52
