IP TS Source - IP TS Source configures the transport stream input to IP output routing of
the IRD.
NOTE: This is a GLOBAL IP setting. IE, Each IP destination can have it’s own set of filtered
programs, but each program set must come from the same TS input source.

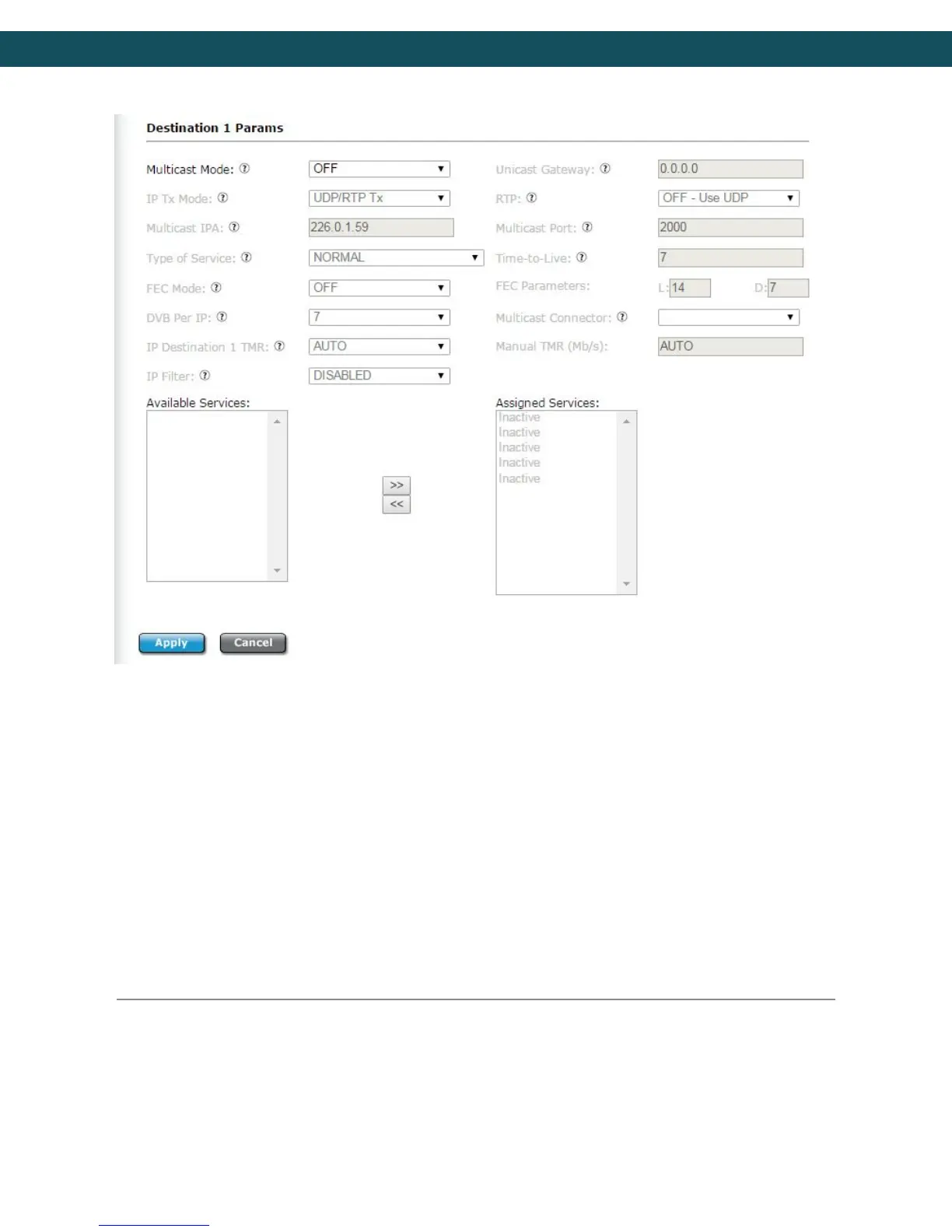

Multicast Mode - Multicast can be turned OFF or set to SEND mode. SEND Mode transmits
the current encode via the GigE port. Multicast group IP and Port addresses must be
specified.
Unicast Gateway - The Unicast Gateway automatically handles IP routing for unicast
transmissions. This must be configured if the outgoing unicast requires a different gateway
from the configured system default gateway. A route is automatically added when the unit is
configured for transmit and a Unicast Gateway exists. The route is deleted if set to 0.0.0.0
or Multicast Mode set to OFF.
NOTE: An unwanted route removal corner case exists at this time. This can occur for
applications requiring the same send IP address and the same unicast gateway IP for more
than one destination. When one of the mirrored destinations is disabled the shared route
will be deleted. If this type of application is required, only use one Unicast Gateway for the
group of matching send IP addresses.
71
