NETVANTA 4305 (SYSTEM) P/N 1200890L1
Quick Start Guide
Quick Start Guide, 61200890L1-13A, June 2004 Technical Support 1-888-4ADTRAN (1-888-423-8726) © 2004 ADTRAN, All Rights Reserved
For more detailed documentation, visit us online at www.adtran.com
LED DESCRIPTIONS (CONTINUED)
For these
LEDs…
This
activity…
Indicates that…
WIDE SLOT 1
STATUS
Off Card is not installed.
Green (solid) Card is recognized by the system
Red (solid) Alarm condition with card.
WIDE SLOT 1
ACTIVITY
Green
(blinking)
There is data activity on the card (e.g., for the Octal T1
Module, this indicates TD/RD data).
Off There is no data activity on card.
WIDE SLOT 1
TEST
Off Card is not in test.
Yellow (solid) Card is in test mode.
CONSOLE PINOUT
Pin Name Description
1 DCD Data Carrier Detect (output)
2 RD Receive Data (output)
3 TD Transmit Data (input)
4 DTR Data Terminal Ready (input)
5 SG Signal Ground
6 DSR Data Set Ready (output)
7 RTS Request to Send (input)
8 CTS Clear to Send (output)
9 RI Ring Indicate (output)
COMMANDS
Refer to the ADTRAN Operating System (OS) Command Reference Guide
(provided on the ADTRAN OS Documentation CD) for details on configuring the
system using the Command Line Interface.
ETHERNET PINOUT
Pin Name Description
1 TX1 Transmit Positive
2 TX2 Transmit Negative
3 RX1 Receive Positive
4, 5 — Unused
6 RX2 Receive Negative
7, 8 — Unused

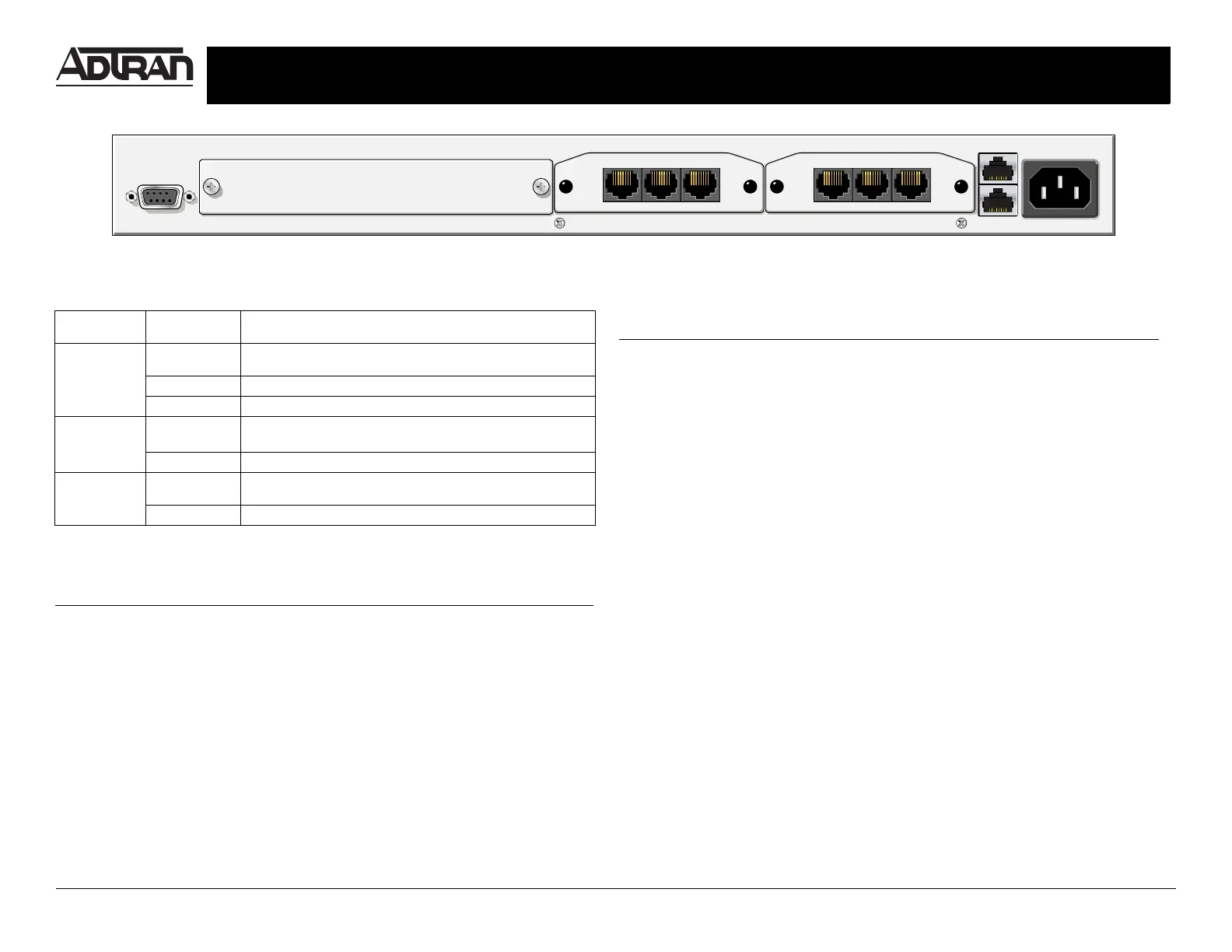

SLOT 1 NET/DBU
CONSOLE
SLOT 2 NET/DBUSLOT 3 WIDE MODULE
WAN-T1 DSX-1 DBU
ETH 0/1
ETH 0/2
100- 250VAC, 0.75A
50/60Hz
WAN-T1 DSX-1 DBU WAN-T1 DSX-1 DBU
