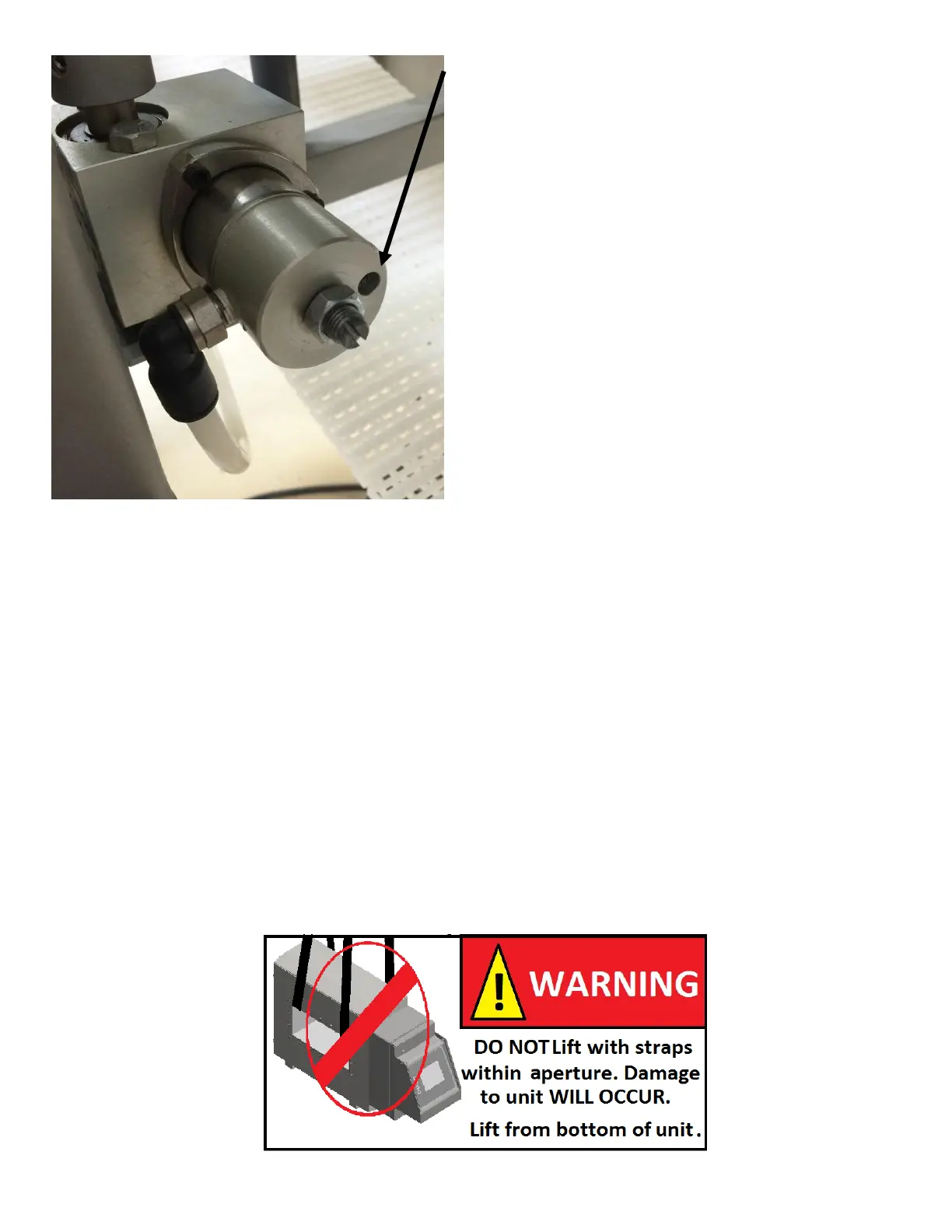

These set screws should only be adjusted with the
assistance of the factory.
If you experience the sweep arm traveling too far, or not
far enough, it may be necessary to adjust the range of
motion, or stroke, of the arm. This is done by loosening
the lock nut in the center of the cylinder and adjusting the
large screw.
Troubleshooting: If you experience the sweep arm
retracting too far, or not far enough, and the cylinders
have not been adjusted prior, check the sweep arm
attachment point on the cylinder shaft. If the cushions are
not soft enough, the arm will “slam”, and over time the
arm will slip on the shaft. Do not adjust cylinder throw to
compensate for this, adjust the cushioning then loosen and
reposition the sweep arm on the cylinder shaft.
Contact the factory at 414-672-0553 if you have any
questions regarding sweep arm adjustments.
HANDLING, MOVING, AND TRANSPORTING THE UNIT
When moving the detector, be sure the unit is powered off. Exercise caution to avoid tipping the unit. When
lifting the unit with a forklift, be sure the unit is balanced and no wires are pinched. Lift unit from the conveyor
frame.
If you are removing the head or moving the unit with a hoist, DO NOT sling straps through the aperture
opening, this will cause serious damage to the head. Hoisting straps should be located around the underside of
the metal detector head or on the conveyor frame. Detectors on conveyors are top-heavy during lifting.
If transporting the unit crating is recommended. Wheels should be locked, and the unit secured to the shipping
pallet with tie-down straps. Call the factory if you have any questions regarding the transporting of a unit.
WARNING: Do Not Weld anywhere on the unit with the metal detector head attached.
Welding on the unit WILL DESTROY the electronics of the detector and void any and all
warranties.
