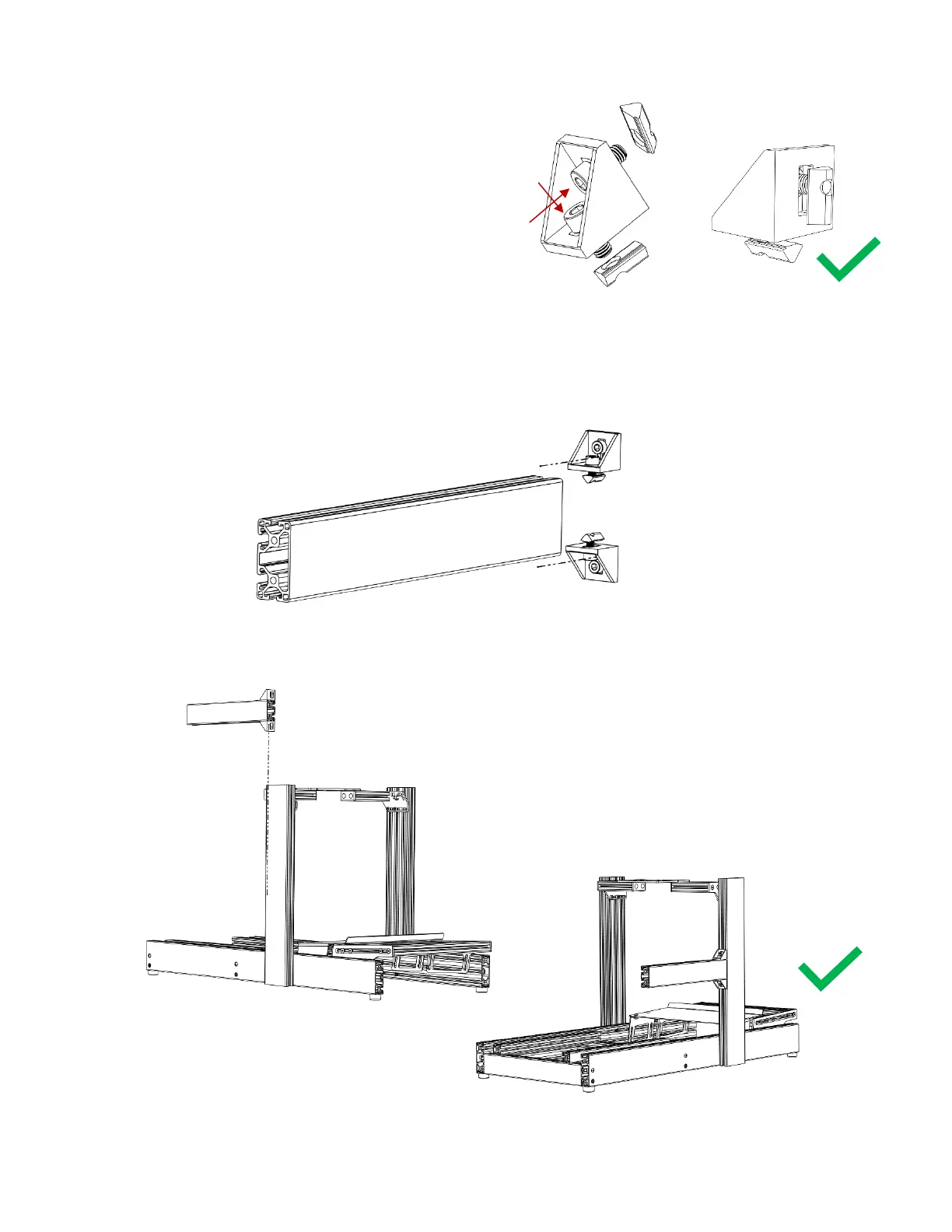

15.
Assemble 3 X corner gussets
with 2 M8 screws and 2 M8 T-Nuts.
Screw in the T-Nuts no more than a turn.
Make sure to respect the shown orientation
of the T-Nuts for trouble-free assembly.
16.
Slide two corner gussets on either side of the 3” x 18” extrusion. Place flush to
the end and tighten fully.
17.
Slide down the arm on the desired side of your peripherals (for either left or right
hand drive config, shown here is for a LHD setup). Don’t tighten yet.
