WP-T810 Thermal Printer
28

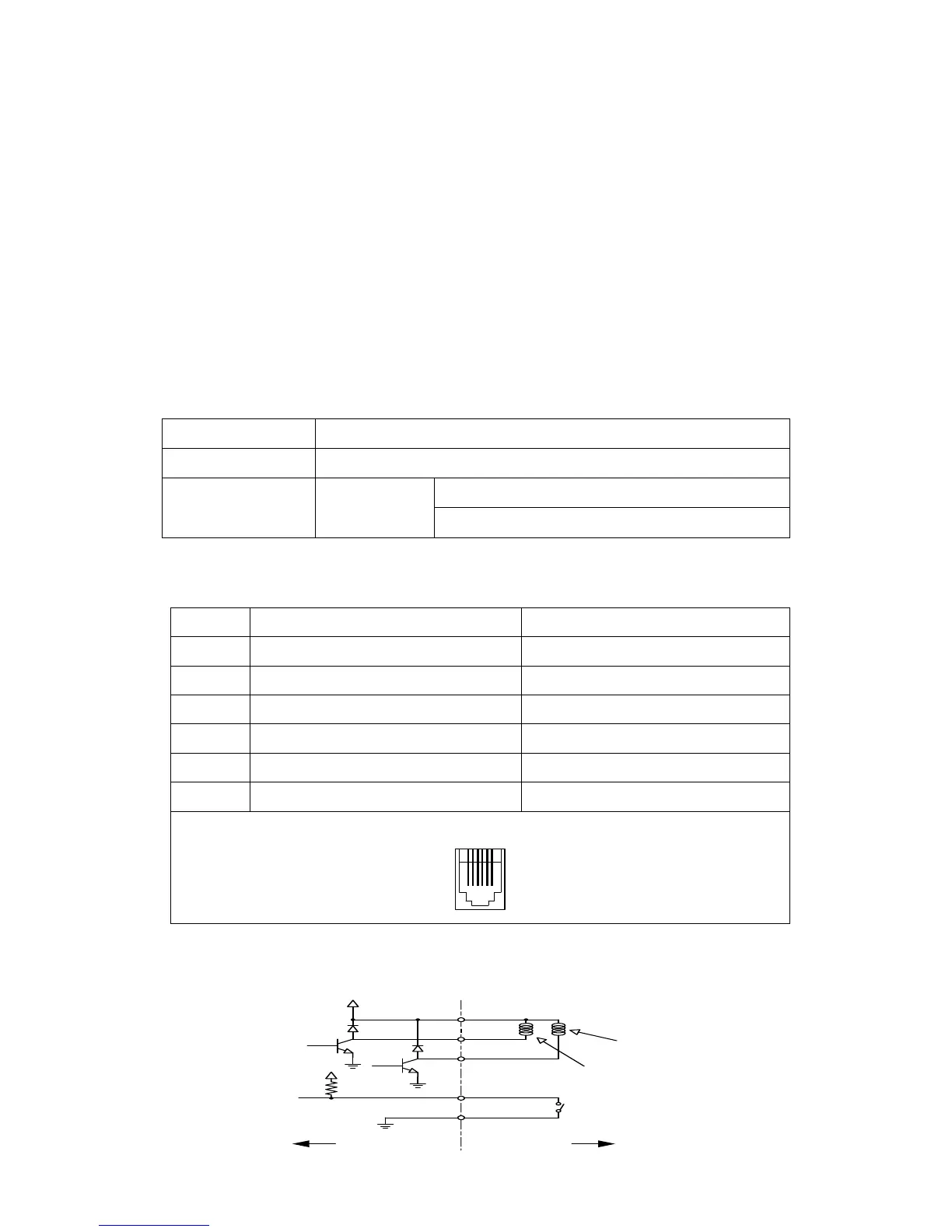

7 Cash Drawer Connector
1 Specifications
z Data Transfer System
The pulse specified by “ESC p” is output to this connector. The host can
confirm the status of the input signal by using the “ESC u” command.
z Electrical Characteristics
Drive voltage DC 24V
Drive current 0.8A at maximum (Should be within 510 ms)
Switch signal Signal level
“L” = 0 to 0.5V
“H” = 3 to 5V
2 Connector’s Pin Connection
No. Signal Name I/O
1 NC -
2 Drawer kick-out 1 Output
3 Drawer open/close signal Input
4 +24V -
5 Drawer kick-out 2 Output
6 Signal GND -
1 6
3 Drive Circuit
+24V
2
4
5
+5V
6
3
Printer Side User Side
Drawer 1
Drawer 2
To Next Page
