Advantage Controls MegaTron Quick Steps

4700 Harold Abitz Dr
Muskogee, OK 74403
918-686-6211 phone
918-686-6212 fax
www.advantagecontrols.com
Get the Advantage
Additional Troubleshooting:

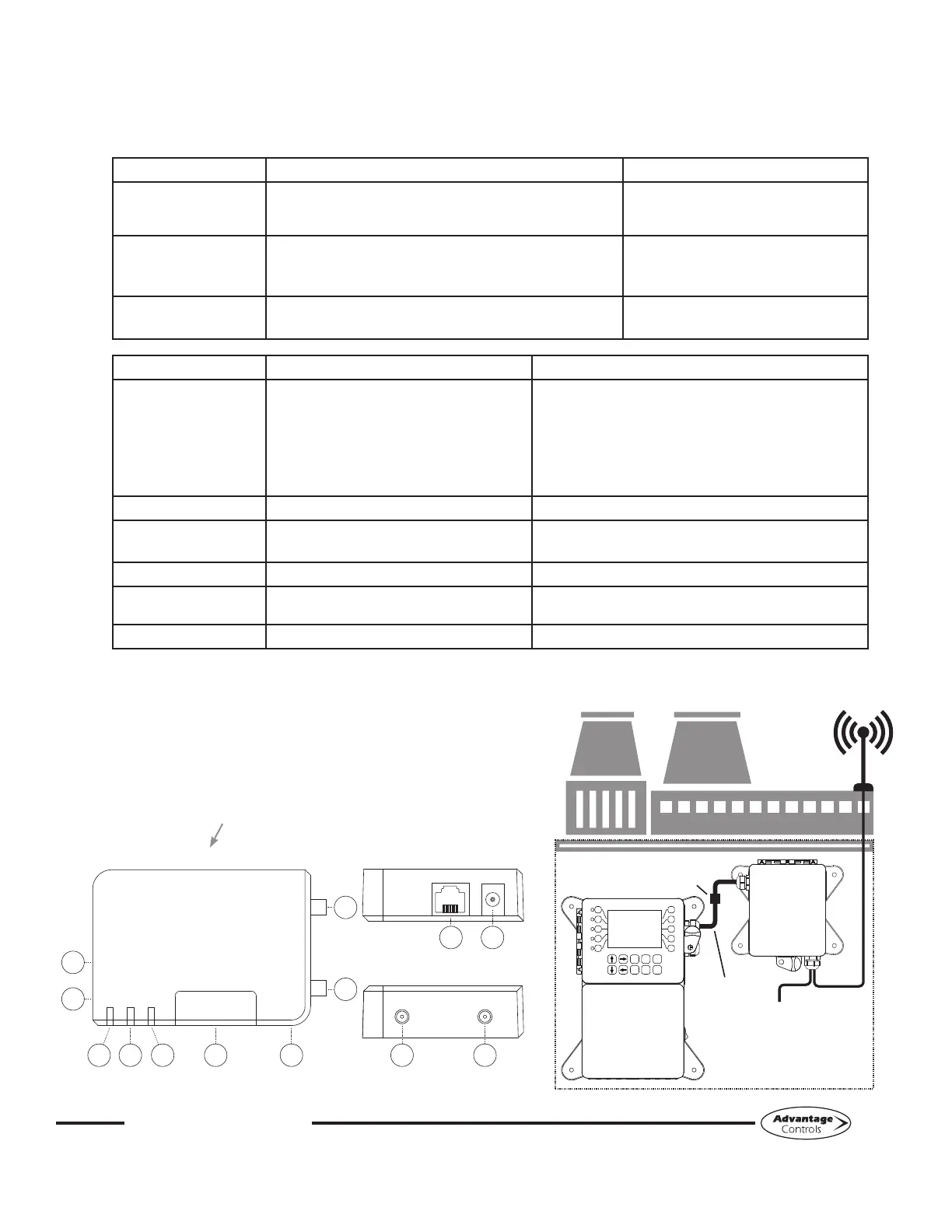

Open front panel of ROUTER-3 to reveal connections and LED lights.
LED Description
A - Service LED
Indicates LTE interface availability and use.
* Allow up to 5 minutes for the connections to
WebAdvantage & the cellular network to be established.
O󰀨 = No Cellular Service
(6) Blinks = LTE mode
B - Signal LED
Indicates strength of cellular signal.
O󰀨 = Poor or No Signal
Amber = Fair
Green = Good
C - Power LED
Device power indicator.
O󰀨 = No Power
Green = Powered
General Description
D - WWAN PRI Antenna Connection
* Antenna wire length approx. 9 ft.
- Ensure cable is properly threaded.
- Check for frayed or damaged wire.
- Move to location optimal for cell reception.
- Do not splice antenna wire to extend length.
Instead, extend CAT5 up to 328 ft. max.
E - WWAN SEC
Not used
F - Ethernet CAT5 connection to controller. CAT5 can be extended up to 328 ft. before
signal repeater is required.
G - Power Cord
* Only use supplied power cord.
H - SIM Card Tray
Mini-SIM (2FF)
* Only use #1 SIM card slot.
I - Reset (Pin Hole)
Not used
3
4
5
2
1
8
9
0
7
6
SET UP
RUN
CANCEL HELP BACK
ENTER HOME
CAT5
COUPLER
POWER
Max 328 ft.
(total length)
Position cell antenna
for best possible
reception.
Controller
ROUTER-3
RIGHT SIDE
CELL ROUTER - TOP LEFT SIDE
POWER
WWAN
PRI
WWAN
SEC
ROUTER CYCLES
WITH POWER RESTORE
ACCESSING INTERNAL PARTS
MAY VOID WARRANTY
B E D
F G
I
E
D
G
F
A C H
WWAN
PRI
WWAN
SEC
SERVICE
SIGNAL
POWER
ETHERNET
Note:
Please have ID number available when calling in for
troubleshooting. This allows us to identify the specic
line and carrier.
The ID number can be found inside of the ROUTER-3
enclosure, attached to the top of the cell router.
