System Card Wiring

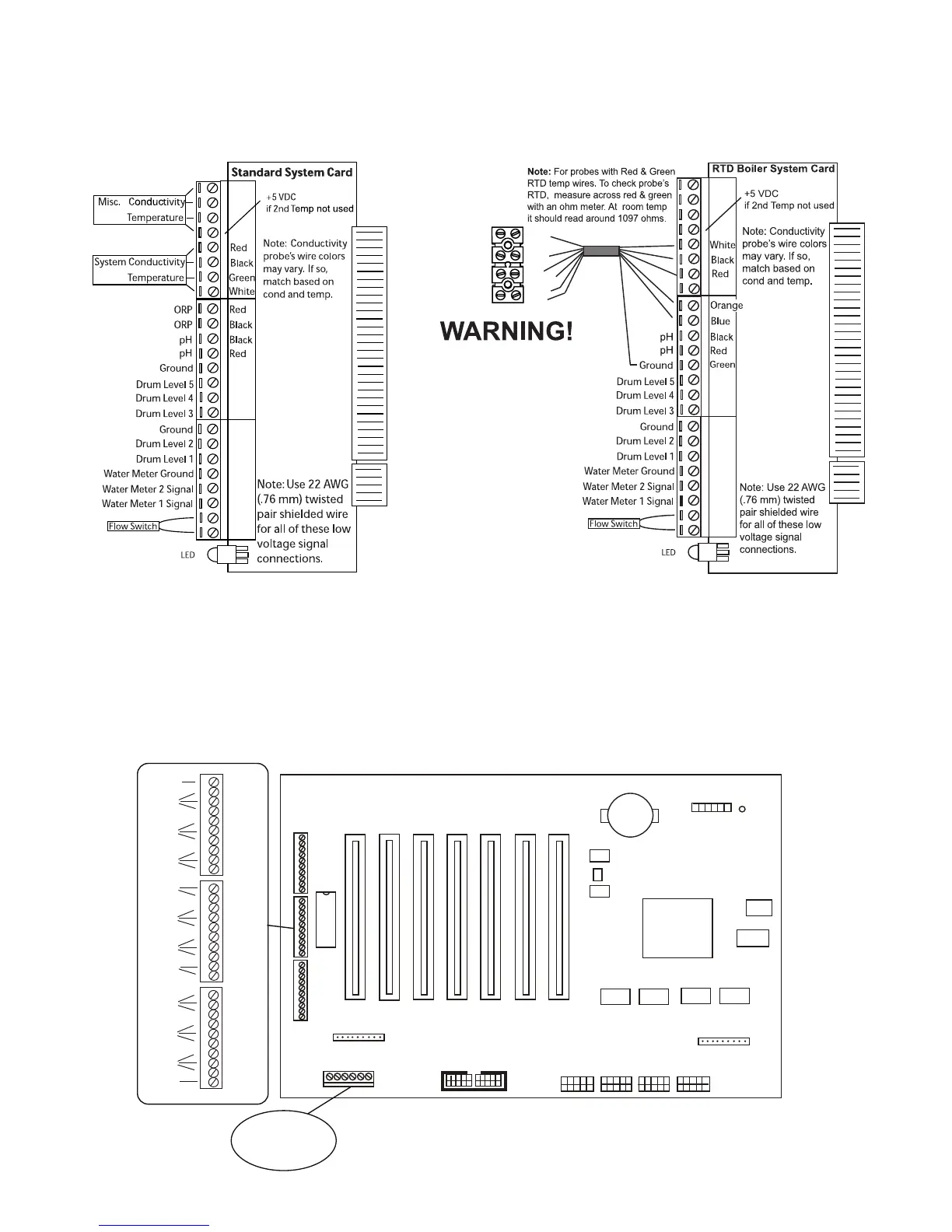

To wire directly to the system cards the following diagram indicates all connections for the two styles of system
cards. This requires removal of display panel and power must be o󰀨.
White
Black
6 conductors plus a
shield must be ran
from the controller
to the probe. Connect
the 4 wires for the
temperature at the
terminal block
supplied with
the sensor
as shown.
Red
Green
Orange
Blue
White
Black
Red
Green
Mother Board Connections
The communications card is always the rst slot and system 1 card the second. The 4-20mA output card will
be the slot after the last active system card and the 4-20mA input card 2 after the last system card.
MegaTron Mother Board
Relay Card Outputs
1-5
6-10
11-15
16-20
+12
-12
Incoming
Power
Display Ribbon
Cable Connection
Key Pad Ribbon
Cable Connection
Key Pad Ribbon
Cable Connection
Comm,
Sys 1
Processor
Program / Memory
Card Connection
Aux.
Meter
Inputs
+5
+5
Card Slots
+5 VDC
Signal
Ground
+5 VDC
Signal
Ground
+5 VDC
Signal
Ground
Ground
Aux. 1
Aux. 2
Aux. 3
+5 VDC
Signal
+5 VDC
Signal
Ground
+5 VDC
Signal
Ground
Ground
Signal
Aux. 5
Aux. 6
Aux. 7
Aux. 4
Aux. 4
+5 VDC
+5 VDC
Signal
Ground
+5 VDC
Signal
Ground
Ground
Signal
Aux. 8
Aux. 9
Aux. 10
+5 VDC
Aux. 7
+12 VDC
for paddlewheel
flowmeters
