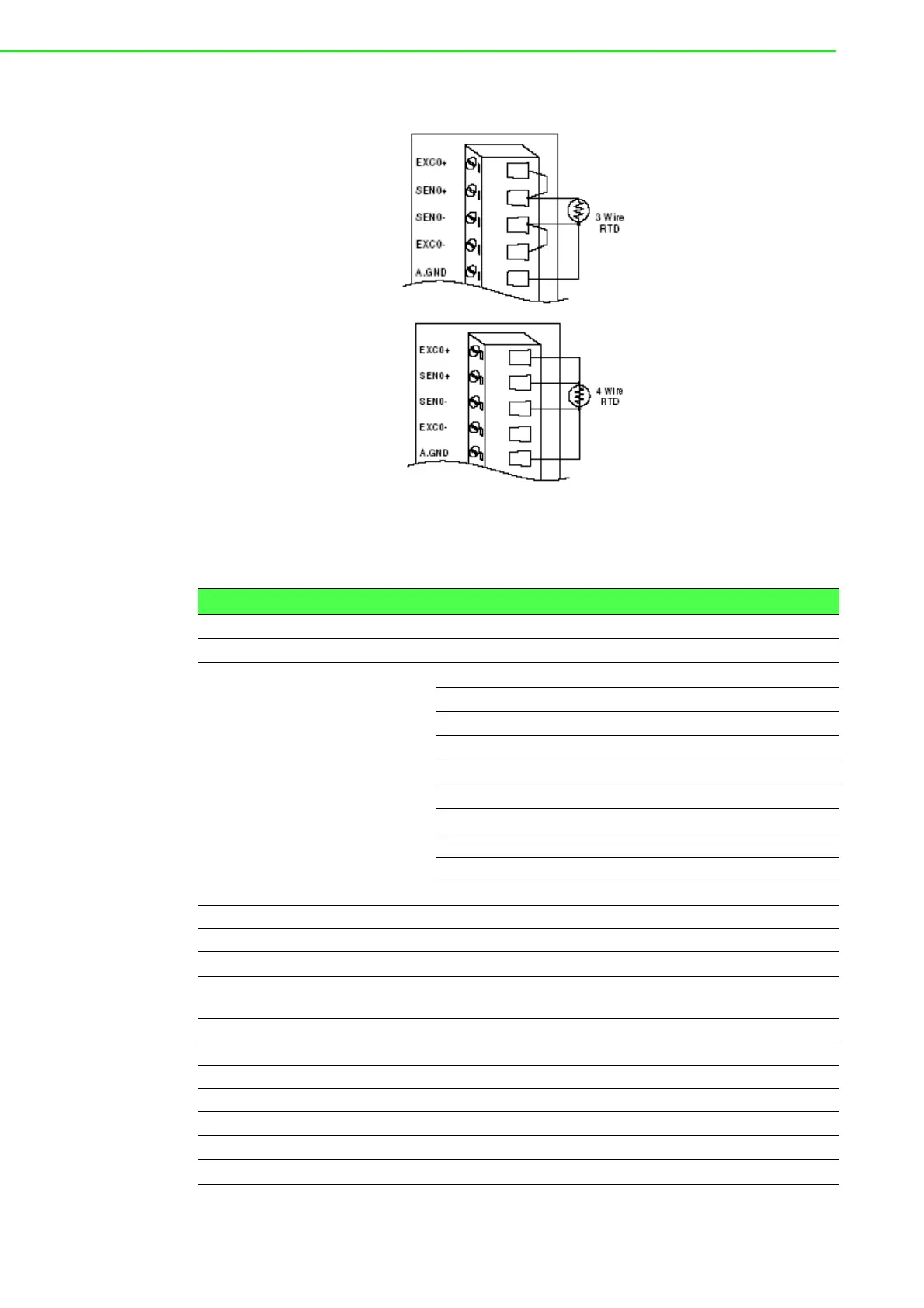

Application Wiring
Figure 1.2 RTD Inputs
Technical Specifications of ADAM-5013
Table 1.2: Technical Specifications of ADAM-5013
Analog input channels 3
Input type Pt or Ni RTD
RTD type and temperature range Pt -100 to 100°C a=0.00385
Pt 0 to 100°C a=0.00385
Pt 0 to 200°C a=0.00385
Pt 0 to 600°C a=0.00385
Pt -100 to 100°C a=0.00392
Pt 0 to 100°C a=0.00392
Pt 0 to 200°C a=0.00392
Pt 0 to 600°C a=0.00392
Ni -80 to 100°C
Ni 0 to 100°C
Isolation voltage 3000 V
DC
Sampling rate 10 samples/sec (total)
Input impedance
2 M

Bandwidth 13.1 Hz @ 50 Hz
15.72 Hz @ 60 Hz
Input connections 2, 3 or 4 wire
Accuracy ± 0.1% or better
Zero drift ± 0.015°C/°C
Span drift ± 0.01°C/°C
CMR@50/60 Hz 150 dB
NMR@50/60 Hz 100 dB
Power consumption 1.2 W
