Advantech ADAM-5051

ADAM-5000 Series User Manual 66

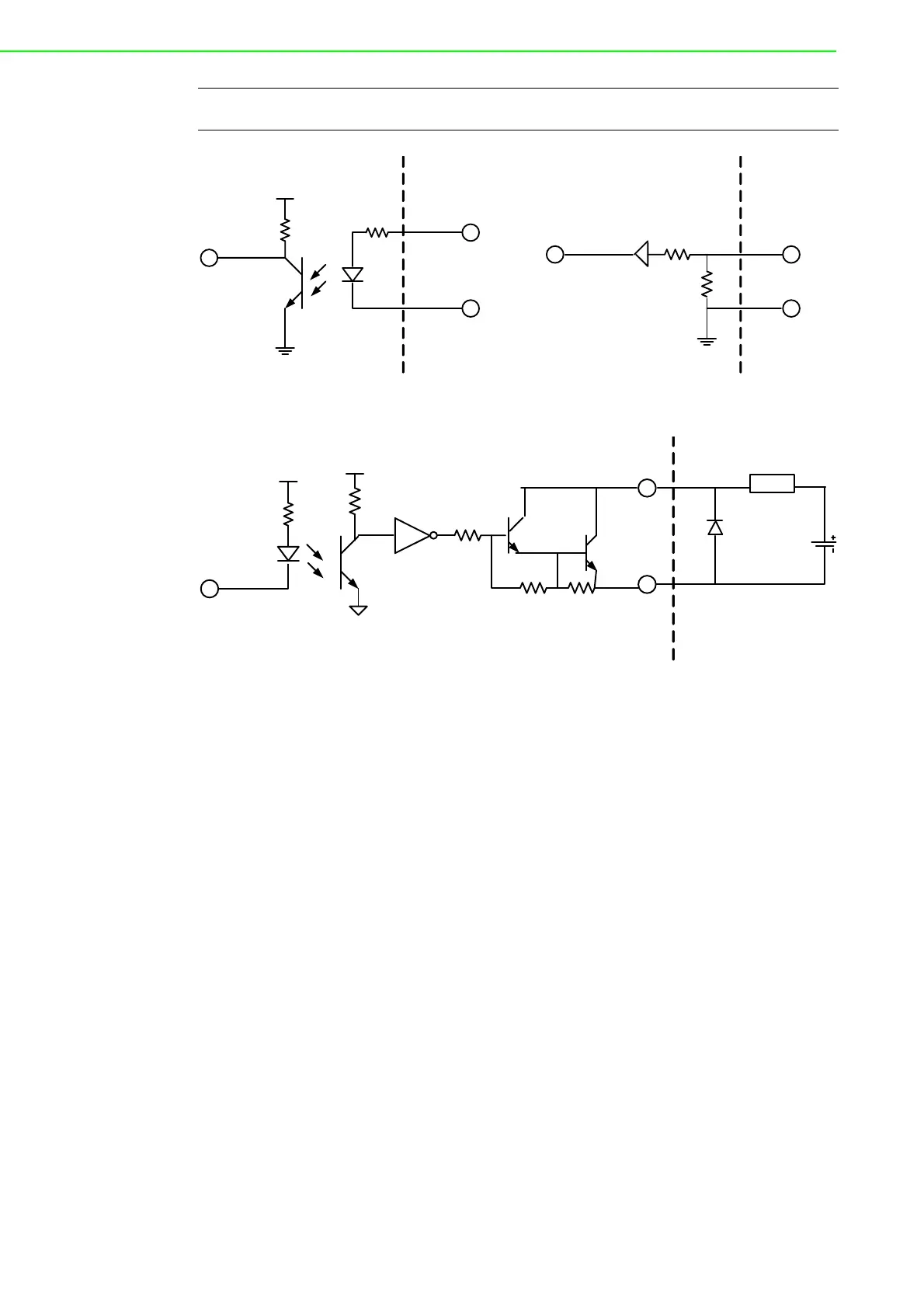

Programmable Digital Noise
Filter
1 ~ 65000 µ sec
VCC
Internal External
10~30V
Cx-
Cx+
Isolated input
Internal External
TTL input
V
TTL
Cx+
Cx-
VCC
GND
DO
Load
Internal External
Isolated DO output
IVCC
*Optional
*Add a diode if load is relay
