DS-085
Series User Manual
17
1.4 Mechanical Specification
1.4.1 Dimension
Small: 180 x 190 x 19mm (L x W x H)
Large: 210 x 178 x 40mm (L x W x H)

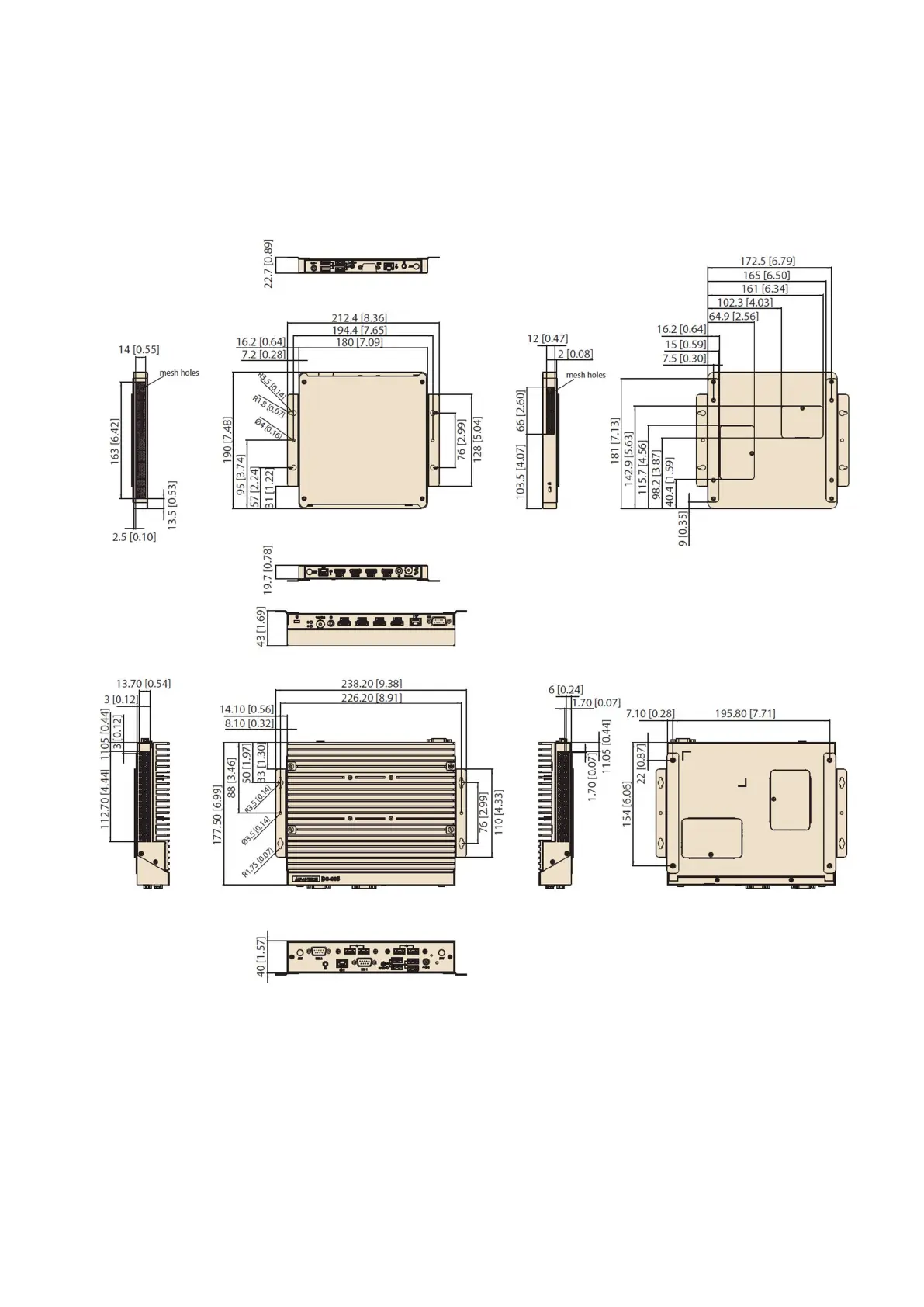

Figure1.1：Diemnsions
1.4.2 Weight
Small: 0.87 kg
Large: 2.1 kg
