Advantech DS-085 Series User Manual

DS-085
Series User Manual
23
USB Port Pin Assignments
Pin Signal
1 VCC
2 USB Data-
3 USB Data+
4 GND
2.2.6 COM Connector
DS-085 Series provides one D-sub 9-pin connectors serial communication interface port.
The ports support RS-232 communications.

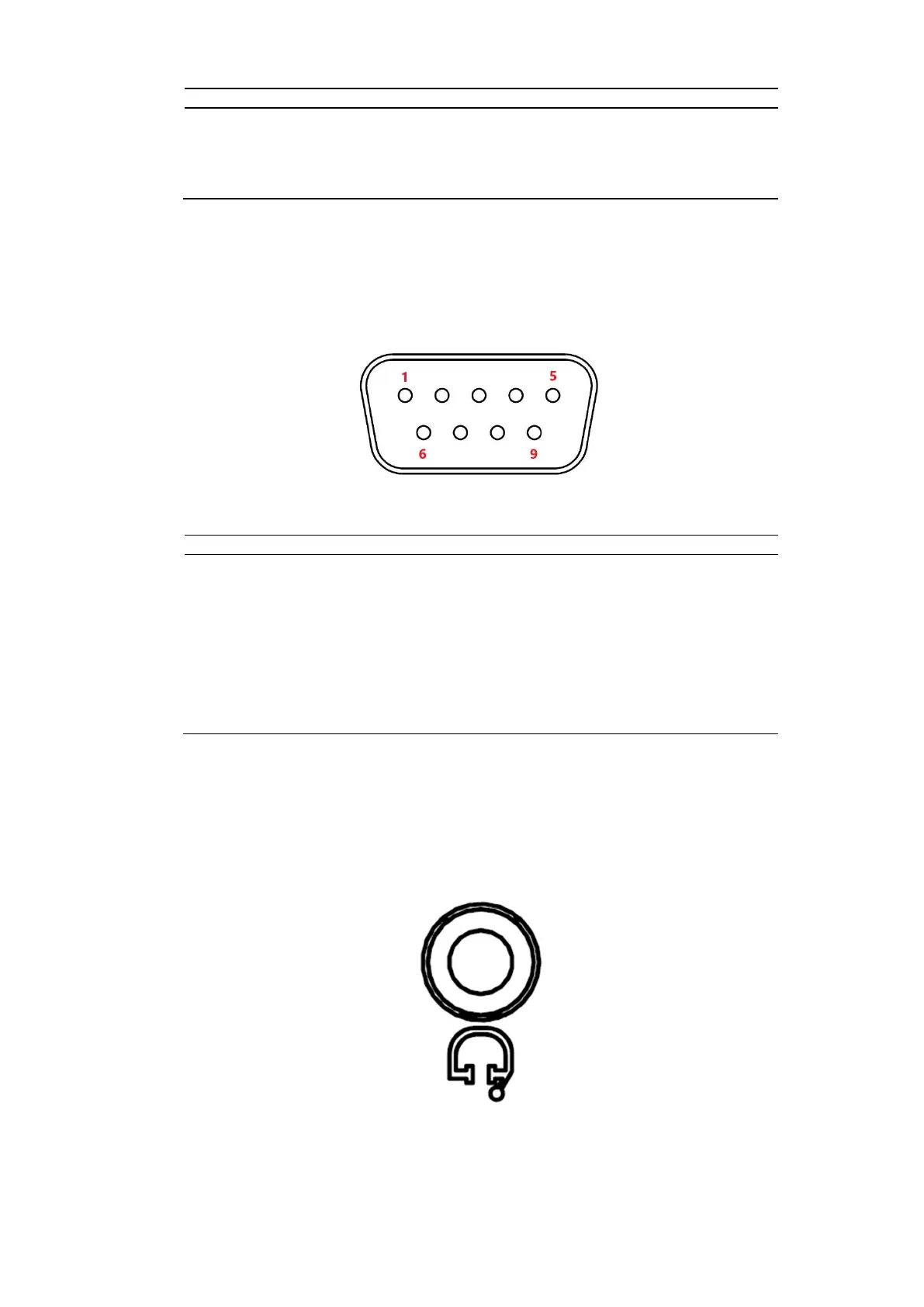

Figure 2.8：COM Connector
COM
Port Pin
Assignments
Pin Signal
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
2.2.7 Audio Connectors
DS-085 Series Audio Jack can be connected to Stereo speakers, earphone or surround
speakers.
Figure 2.9：Audio Connector
