2.2.2 DC Input Connector
DS-085 Series supports 19VDC DC power in.

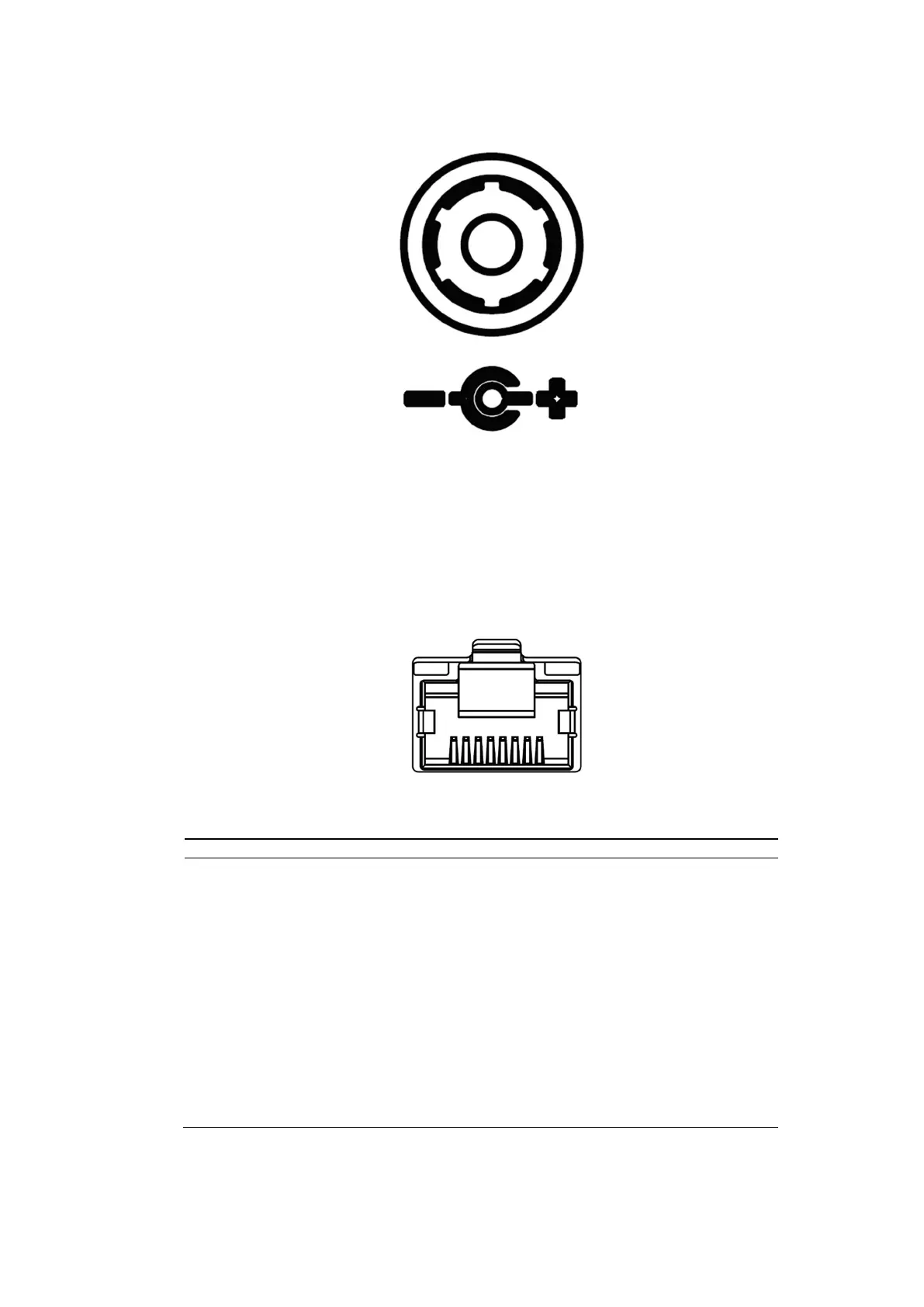

Figure 2.4：DC Input Connector
2.2.3 LAN Connector
DS-085 Series provides one RJ-45 LAN interface connector, fully compliant with
IEEE802.3u 10/100/1000 Base-T CSMA/CD standards. The Ethernet port provides a
standard RJ-45 jack connector with LED indicators to show its Active/Link status and speed
status.
Figure 2.5：LAN Connector
LAN
Port
Pin Assignments
Pin Signal
1 MDI0+
2 MDI0-
3 MDI1+
4 MDI1-
5 GND
6 GND
7 MDI2+
8 MDI2-
9 MDI3+
10 MDI3-
11 VCC
12 ACT
13 +V3.3 & Link1000#
14 +V3.3 & Link100#
