Advantech DS-085 Series User Manual

DS-085
Series User Manual
20

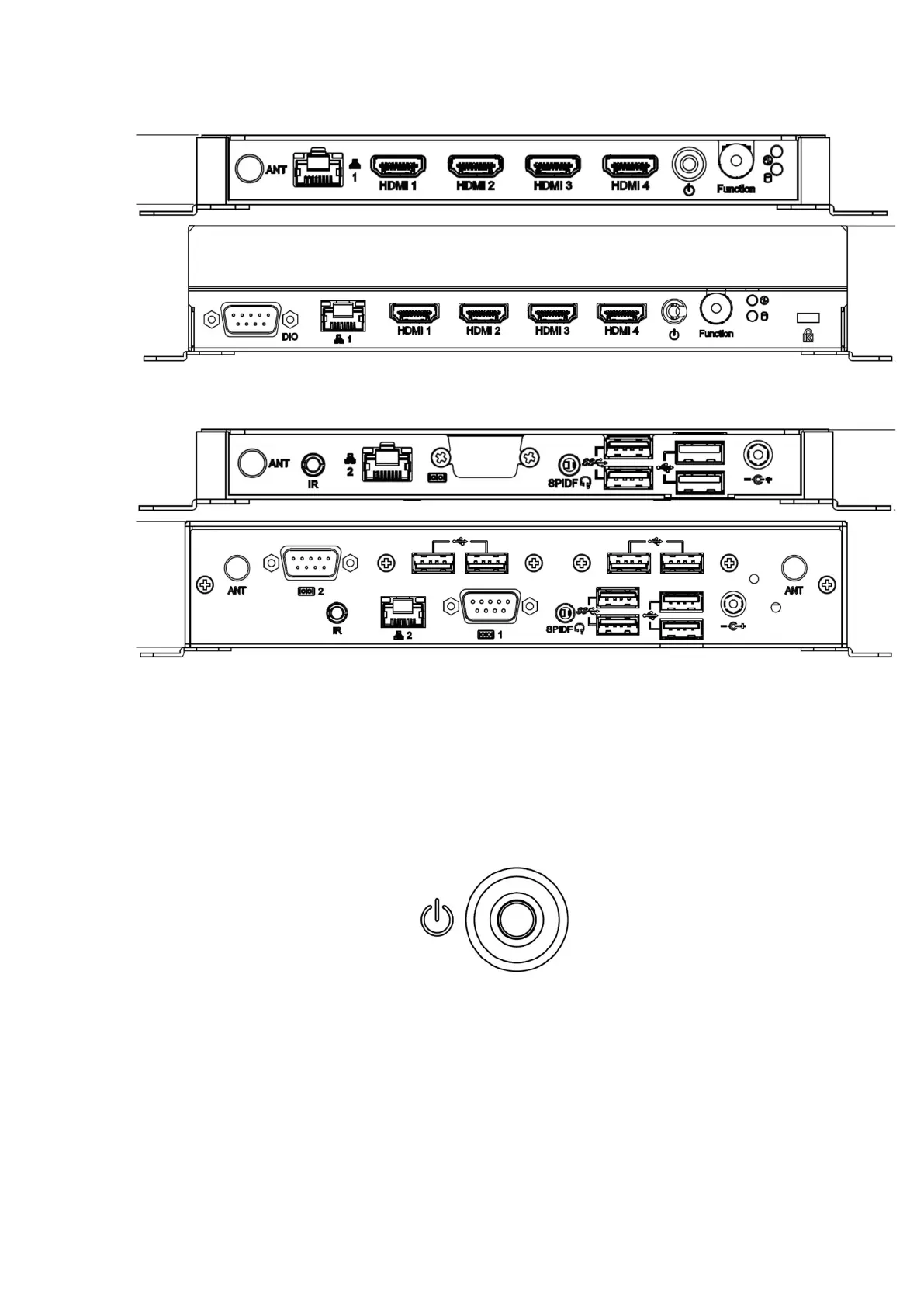

2.1 DS-085 Series I/O Connectors
Figure 2.1：Front View
Figure 2.2：Rear View
2.2 DS-085 Series External I/O Connectors
2.2.1 Power ON/OFF Button
DS-085 Series has a power ON/OFF button on the front side. Push this button to turn the
system ON and OFF. It also supports a 5 second delay soft power off.
Figure 2.3：Power Button

Advantech DS-085 Series Specifications

General

Brand	Advantech
Model	DS-085 Series
Category	Desktop
Language	English
