DS-085
Series User Manual
25
2.3 Hardware Installation (By Skilled Person)
2.3.1 Storage Installation (M.2 2242)

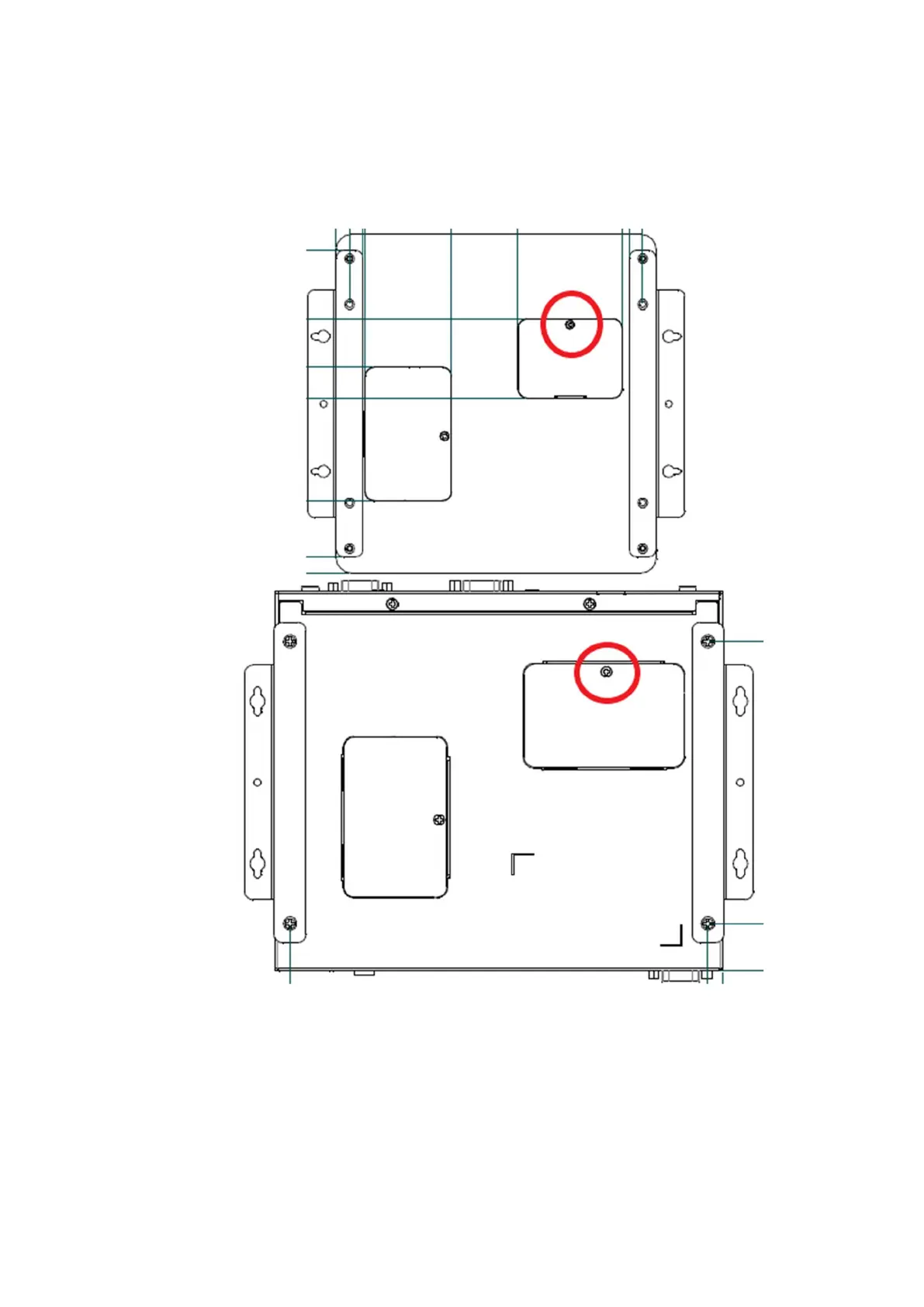

(1) Remove the screw.
(2) Install M.2 2242 module and fix screw
Figure 2.10：M.2 Storage Installation
