PCM-3365 User Manual 4
1.2.4 Electrical Specifications
Power Requirement: 5V ± 5% power input
Power Consumption:
– Max load
* N2930: 1.331A@+5V, 0.009A@+12V, 0.016A@+5VSB (6.843W)
* E3845: 1.493@+5V, 0.008A@+12V, 0.025A@+5VSB (7.686W)
* E3825: 1.107A@+5V, 0.008A@+12V, 0.008A@+5VSB (5.671W)
– Idle mode
* N2930: 0.866A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.417W)
* E3845: 0.923@+5V, 0.007A@+12V, 0.004A@+5VSB (4.719W)
* E3825: 0.877A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.472W)
Power Consumption Conditions:
– Test software: Burn In Test V7.1Pro
– Max. load: Measure the maximum current value which system under maxi-
mum load (CPU: Top speed, RAM &Graphic: Full loading)
– Idle mode: Measure the current value when system in windows mode and
without running any program
RTC Battery:
– Typical Voltage: 3.0 V
– Normal discharge capacity: 210 mAh
1.2.5 Environmental
Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
Operating Humidity: 40°C @ 95% RH Non-Condensing
Storage Temperature: Storage temperature: -40~85°C
Storage Humidity: Relative humidity: 95% @ 60°C
1.3

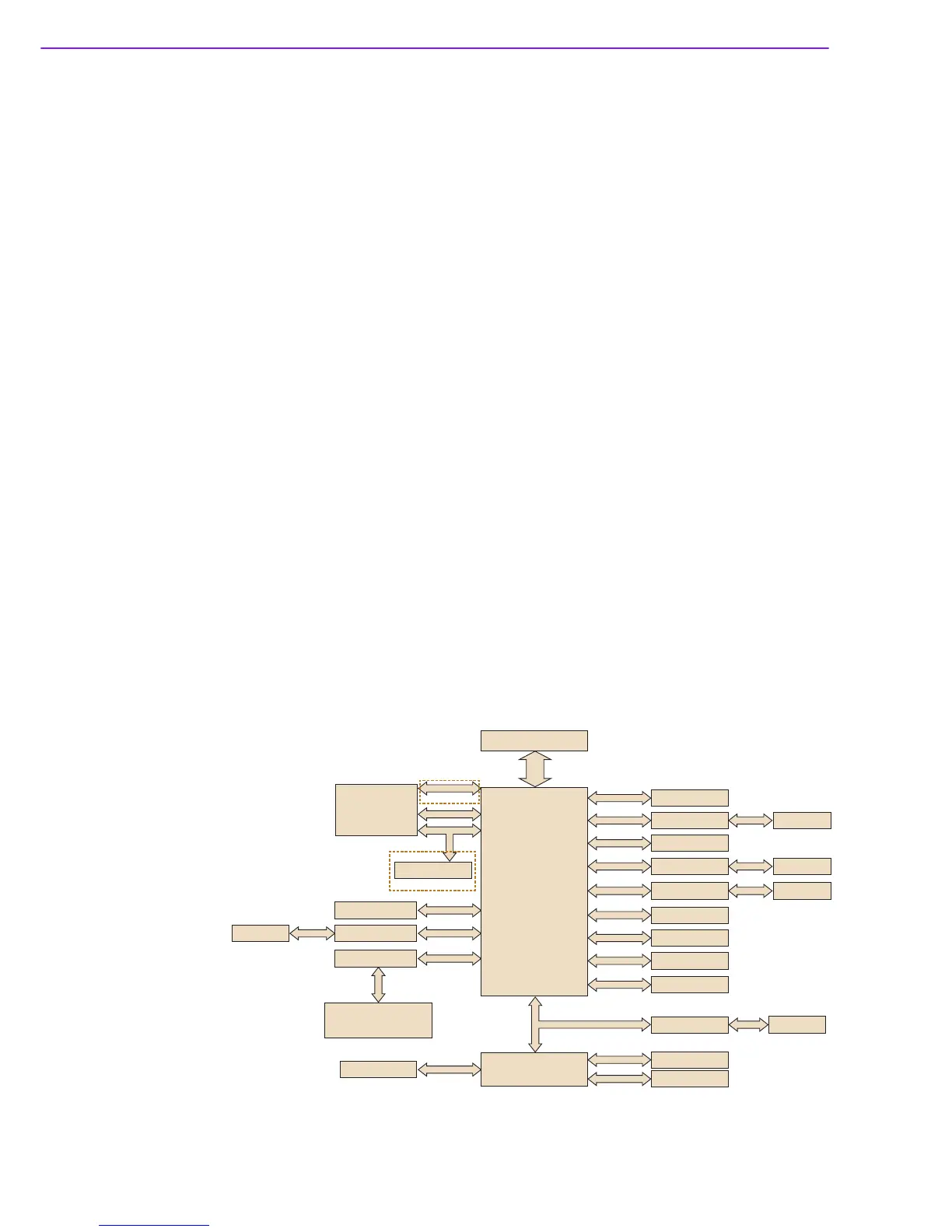

Block Diagram
