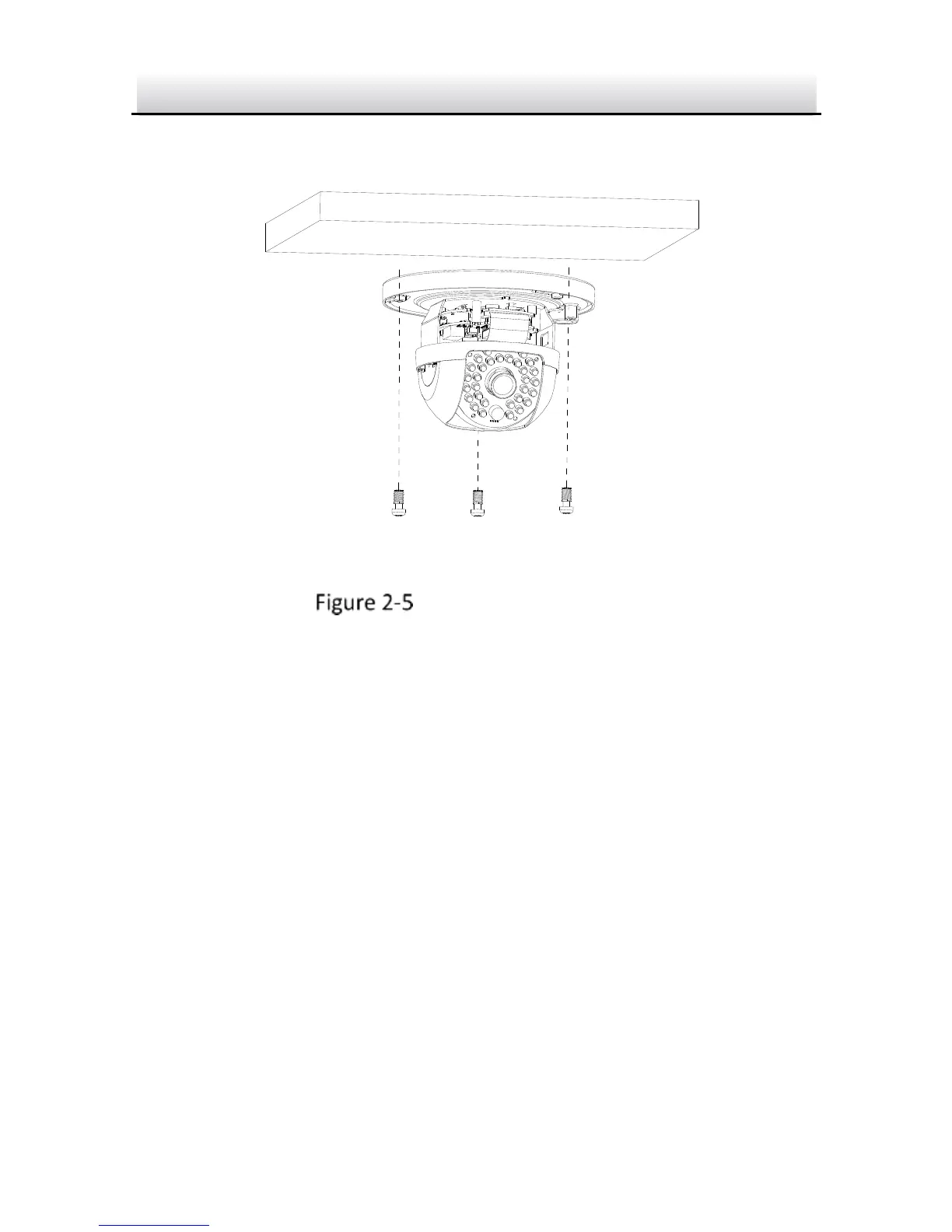

3. Route the cables and fix the mounting base on the ceiling with
three screws.
Fix the Mounting Base
4. Adjust surveillance angle. See the figure of each camera type for
detailed angle adjustment range
1). Loosen one tilting adjust adjusting screw to adjust the tilting
position. Tighten the screw after adjustment.
2). Hold the black liner to adjust the panning position.
3). Hold the lens to adjust the rotating position.
Note:
Rotating position adjustment is not supported by Type I camera.
