9. Hook the back box of the speed dome to the mount with the safety rope. Route the
cables through the mount.
10. Align the direction label of pendant adapter with the label of the back box to install
the speed dome. Rotate the back box clockwise tightly. Secure the back box and the
pendant adapter with two lock screws.
Note: Please remove the protective film on the lower dome after the installation is
finished.

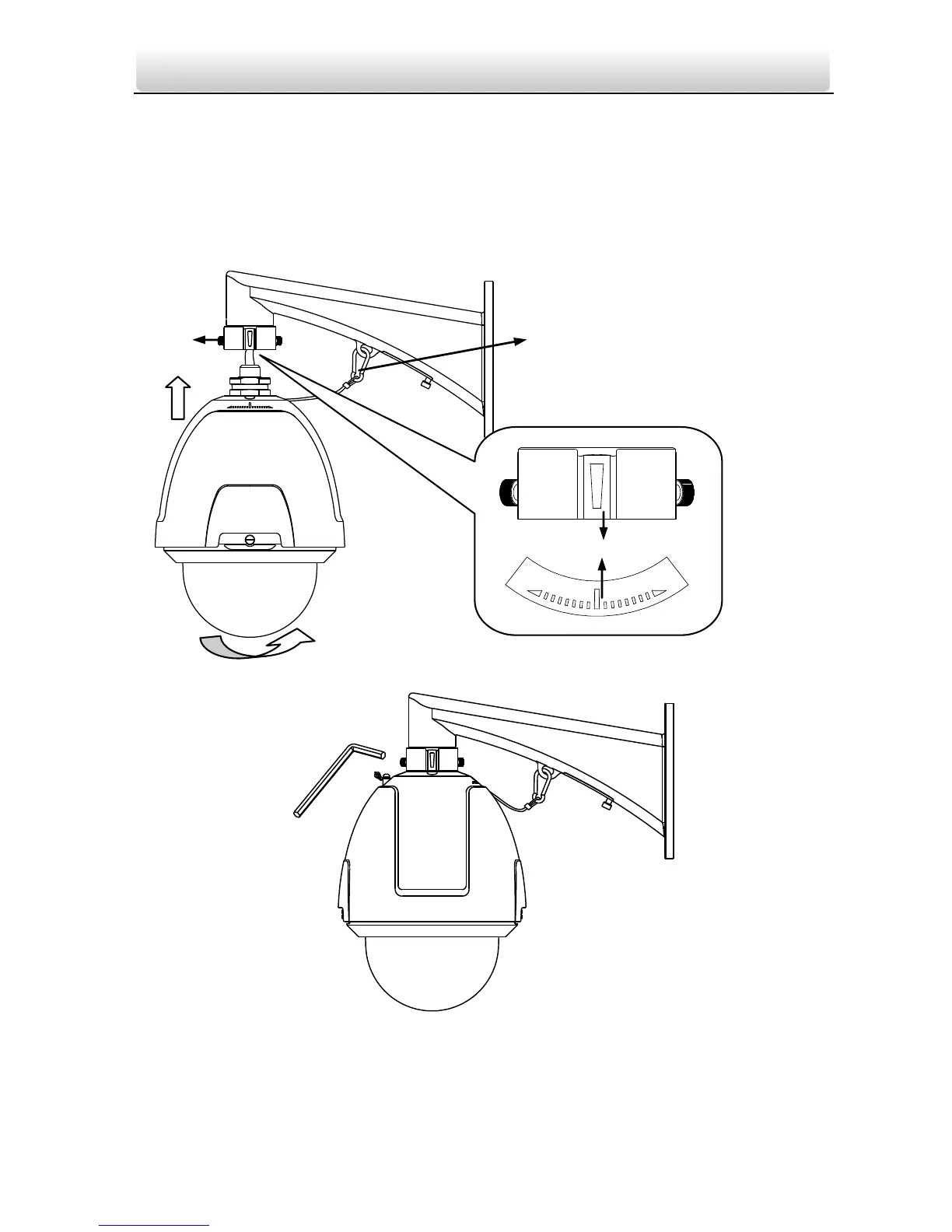

Figure 2-5 Align the Direction Label
2.1.1 Mount the the cement wall, drill three Φ5 screw holes in the wall according
to the hole locations, and then secure the mounting base to the wall with expansion
screws.
Steps:
