Introduction
True Online 1-3k UPS User Manual
3
1 2 3
4
5
6
7
8
9
1 2 3
4
5
6
7
8
11
10
9
3KVA

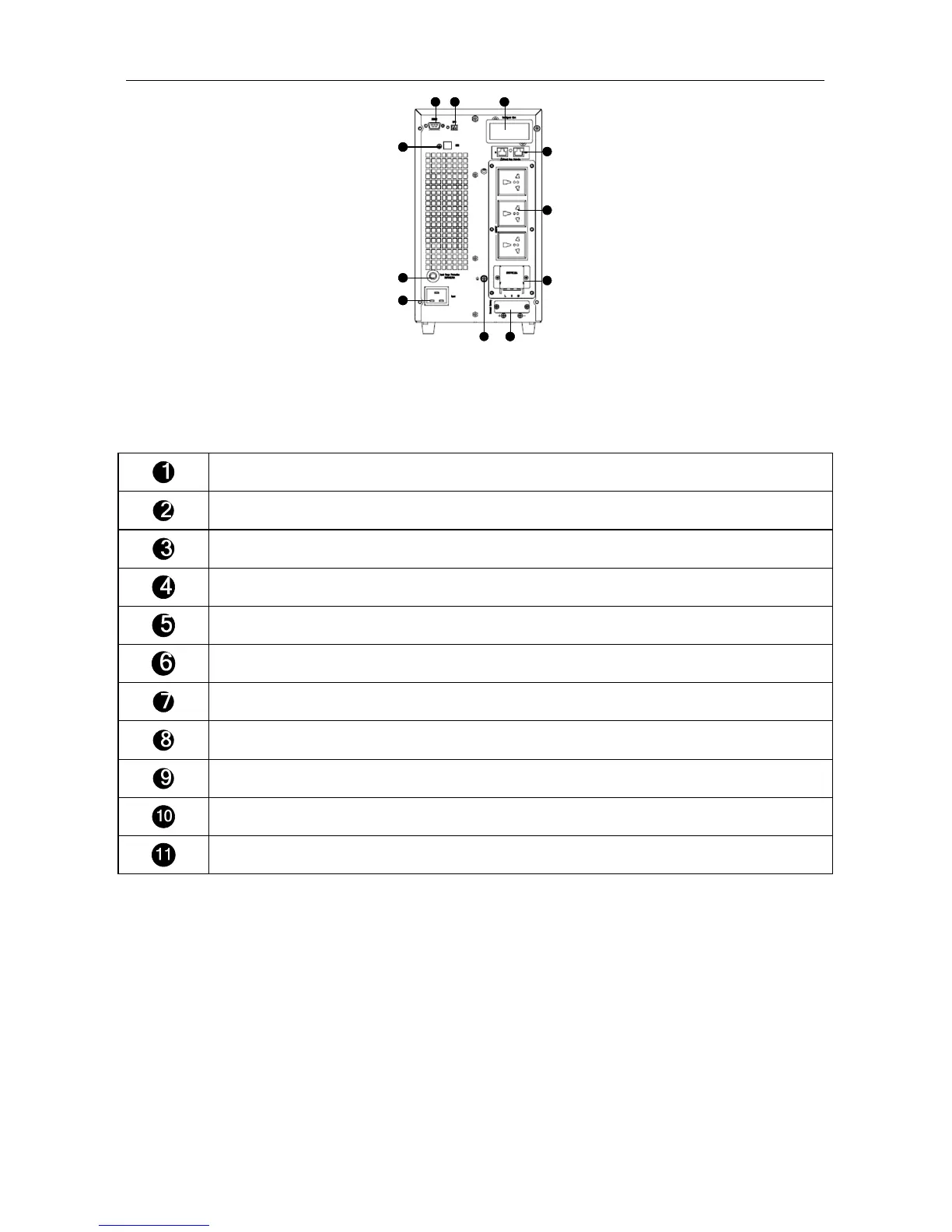

Fig 2. Rear View
RS-232 communication port. DB9 type.
EPO. Short to activate.
Intelligent slot
USB port. B type.
Input surge protection slot.
Input socket. 1KVA: IEC C14, 2K/3K: IEC C20
Network surge protection.
Output Socket
External battery port. Optional for standard model.
Battery ground
Output terminal
