13

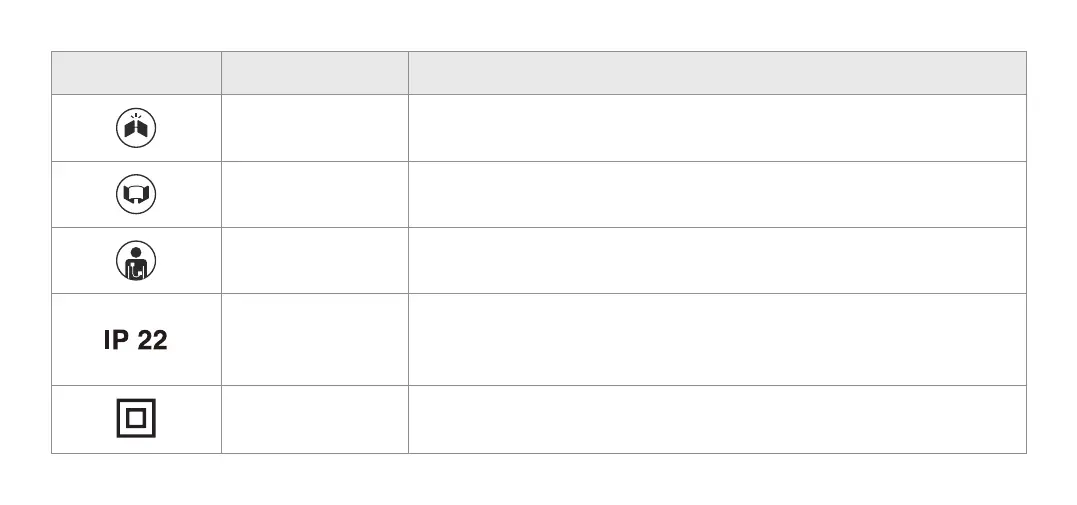

SYMBOLS DESCRIPTION RELATIVE SYMBOL REGULATIONS AND MORE INFORMATION
SNAP
Visually represents the action required to activate the CellAED®. The CellAED® is separated along the
centreline, into two halves. The SNAP simultaneously commences audio (voice) prompts, guiding the
user through the next steps.
PEEL
Visually represents the activation process of the CellAED®. The gel pad liner is removed completely
by separation of the two halves of the CellAED®, exposing the adhesive gel pads and extending the
electrical connecting cable.
STICK
Visually represents the activation process of the CellAED®. Audio (voice) prompts instruct the user to
apply the electrode gel pads of the CellAED® to the patient appropriately.
(Enclosure) Protected from
tools & wires greater than 2.5
millimeters & water spray less
than 15 degrees from vertical
A two-digit number established by the International Electro Technical Commission, is used to provide an
Ingress Protection rating to a piece of electronic equipment or to an enclosure for electronic equipment.
The protection class after EN60529 are indicated by short symbols that consist of the two code
letters IP and a code numeral for the amount of the protection.
Class IIb Medical Electrical
Equipment
Indicates and refers to the level of electrical isolation provided by the part.
(Continued page 14)
