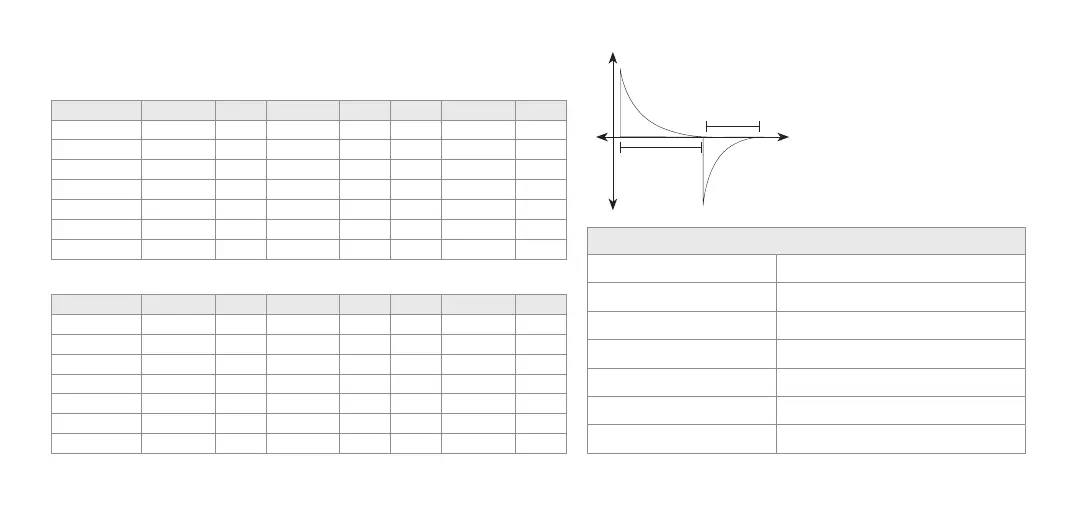

AED CellAED - Biphasic Exponential Waveform

56
IMPEDANCE (Ω) ENERGY (J) V
1
(V) PEAK I
1
(A) T
1
(MS) V
2
(V) PEAK I
2
(A) T
2
(MS)
25 68 1050 42.0 5.2 1005 40.2 2.7
50 75 1150 23.0 9.7 1120 22.4 4.8
75 78 1183 15.8 14.2 1166 15.6 7.0
100 80 1204 12.0 18.8 1190 11.9 10.0
125 80 1212 9.7 20.1 1200 9.6 16.4
150 81 1224 8.2 20.0 1212 8.1 22.1
175 81 1235 7.1 20.0 1221 7.0 22.1
PATIENT WEIGHING GREATER THAN 10 kg (22 lbs)
INFANT WEIGHING LESS THAN 10 kg (22 lbs)
PERFORMANCE
WAVEFORM
Equal leading-edge Biphasic Exponential
ENERGY OUTPUT & DELIVERY
Up to 85 Joules
RESISTANCE MEASUREMENT
25 to 175 Ohms, non-inductive (<2uH)
2-MINUTE STANDARD CPR
AMA standards
SHOCK DELIVERY
Fully Automatic
AUDIBLE VOICE PROMPTS
Up to 16 unique messages
AUDITORY ALARM VOLUME
65dB
V = Voltage t = Time
The waveform is automatically
adjusted to compensate for
patient impedance.
The CellAED® does not detect
patient motion.
10.3 BIPHASIC EXPONENTIAL WAVEFORM
IMPEDANCE (Ω) ENERGY (J) V
1
(V) PEAK I
1
(A) T
1
(MS) V
2
(V) PEAK I
2
(A) T
2
(MS)
25 36 762 30.4 5.2 74 3 29.8 3.1
50 40 835 16.7 9.6 824 16.5 5.5
75 42 861 11.5 14.1 855 11.4 8.0
100 43 876 8.8 18.5 872 8.7 10.6
125 43 885 7.1 20.1 880 7.0 15.6
150 43 891 5.9 20.1 888 5.9 21.9
175 43 896 5.1 20.1 892 5.1 22.2
t
V
V1
V2
T1
T2
