How to install your AEG
Extractor Hob 80 cm
Filter housing assembly
Before first use make sure to place the filter
inside the housing, with the black sides are
facing inwards and the silver sides facing out.
Refer to "Cleaning the hood filter". Once the
filter housing is assembled, put it inside the
hood cavity and place the grid on the hood.
3.5 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. The single wire must have a
diameter of minimum 1,5 mm². Speak to
your local Service Centre. The connection
cable may only be replaced by a qualified
electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.

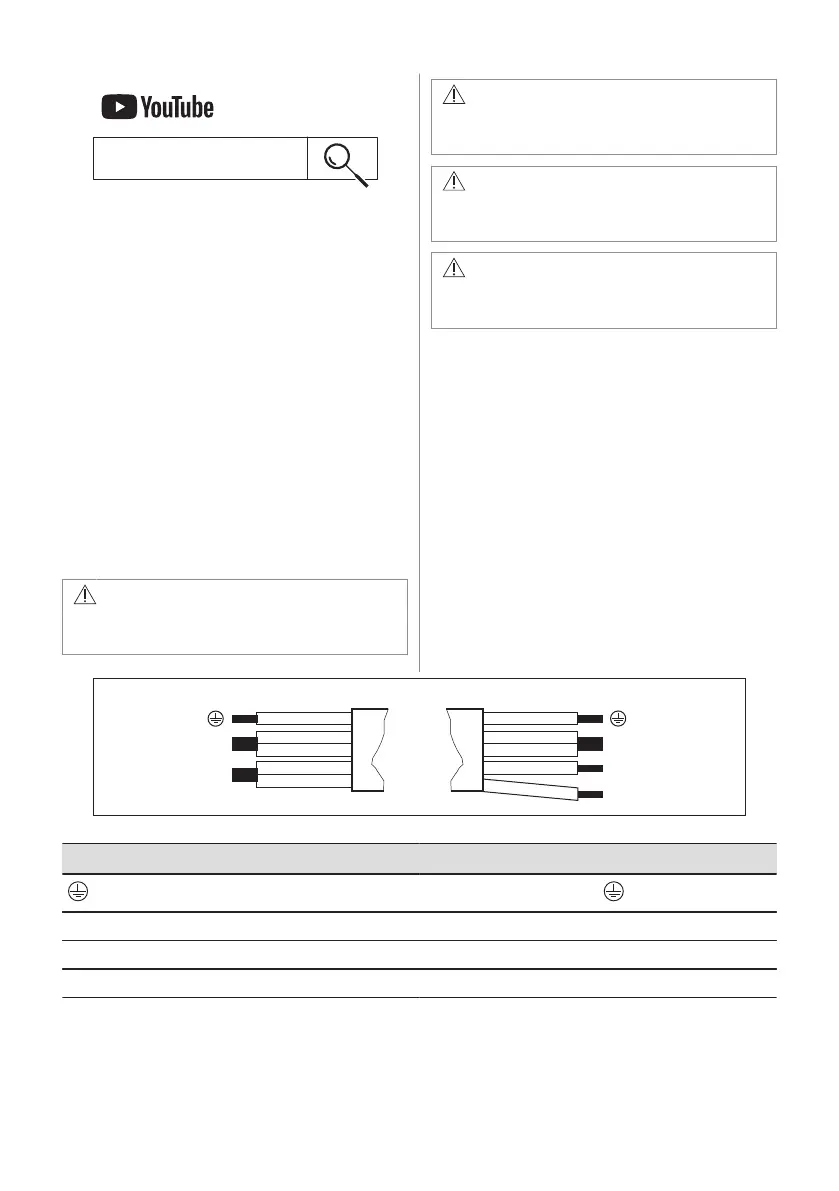

One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove an insulation of the brown and
black cable ends.
3. Merge the black and brown cable ends.
4. Apply a new wire end sleeve on the
common cable end (special tool
required).
Cable cross section 2x1,5 mm²
N
L1
N
L
220-240 V~ 400V 2~N
L2
One-phase connection - 220 - 240 V~ Two-phase connection - 400 V 2 ~ N
Green - yellow Green - yellow
N Blue and blue Blue and blue N
L Black and brown Black L1
Brown L2
10 ENGLISH
