safety reasons and to let easy remove
oven from the unit.
If you install the hob
asymmetrically rightward the
minimum distance between
left edge of the hob and left
support must be 72 mm.
min.
72 mm
CAUTION!
The bottom of the appliance
can get hot. If an oven isn't
installed beneath the hob, a
non-combustible separation
panel must be installed
under the appliance to
prevent access to the
bottom. The position of the
panel is described in the
"Installation" chapter.

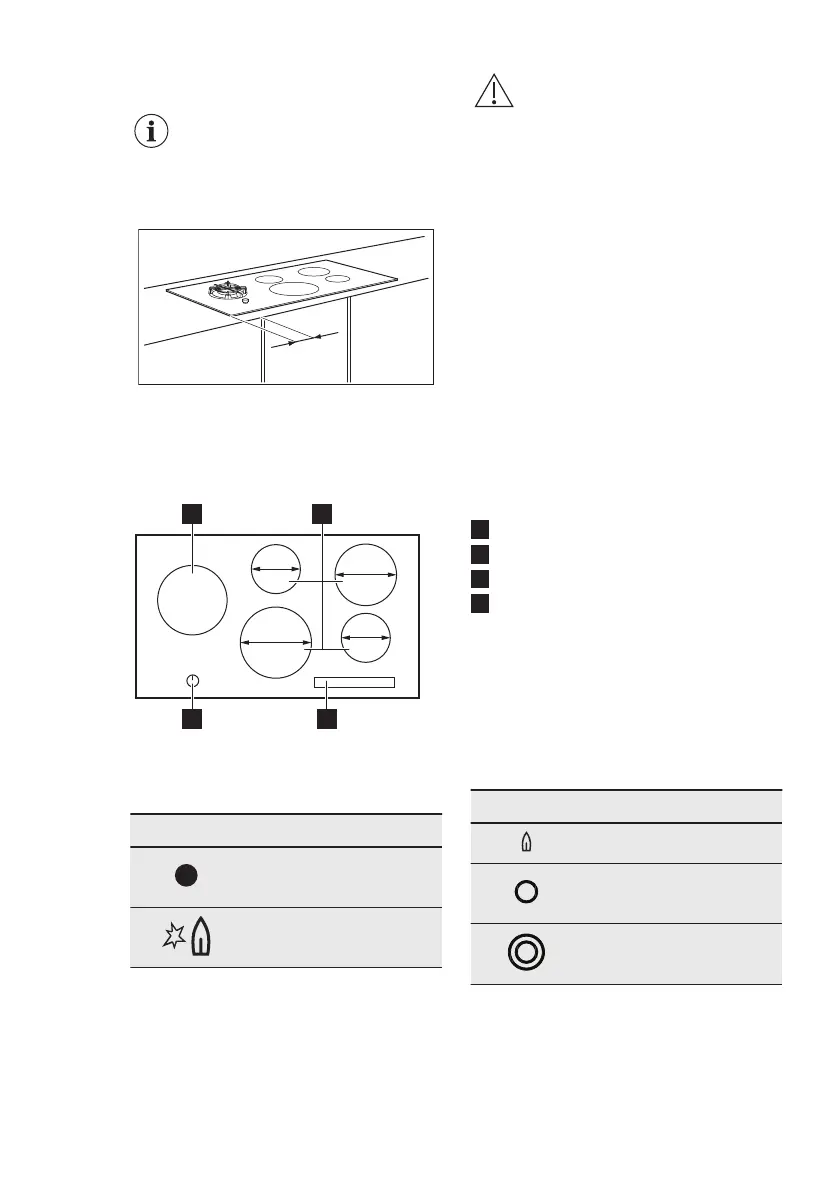

4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
145 mm
145 mm
180 mm
210 mm
4 3
21
1
Dual burner
2
Induction cooking zones
3
Control panel
4
Control knob
4.2 Control knob
Symbol Description
no gas supply / off posi‐
tion
ignition position / maxi‐
mum gas supply
Symbol Description
minimum gas supply
internal crown
double crown
ENGLISH 13
