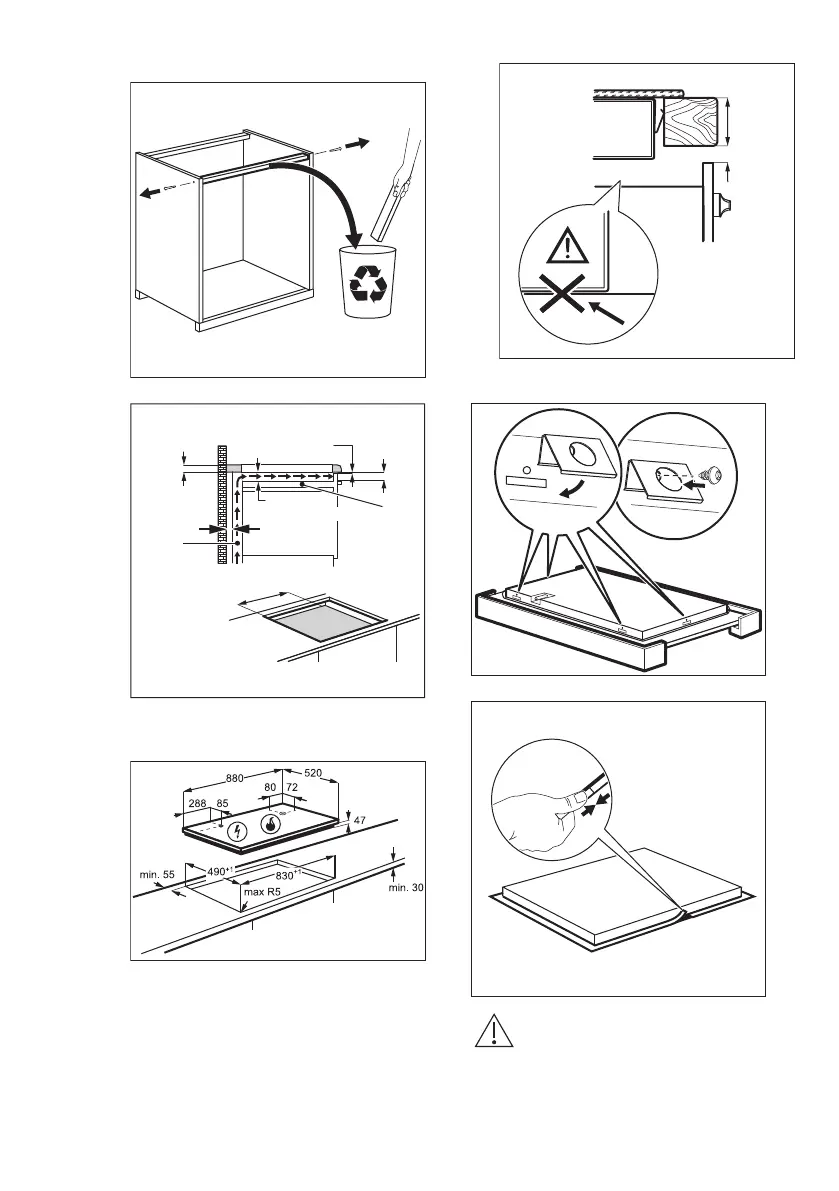

AEG HDB95623NB - Page 13

2.
3.
min. 2 mm
A
B
min.20 mm
(max.150 mm)
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
min. 60 mm
D
C
C. Removable panel
D. Space for connections
4.
5.
min.
38 mm
min.
2 mm
6. Install all four springs using supplied
T20 screws:
7.
CAUTION!
Install the appliance only on
a worktop with a flat surface.
ENGLISH 13
