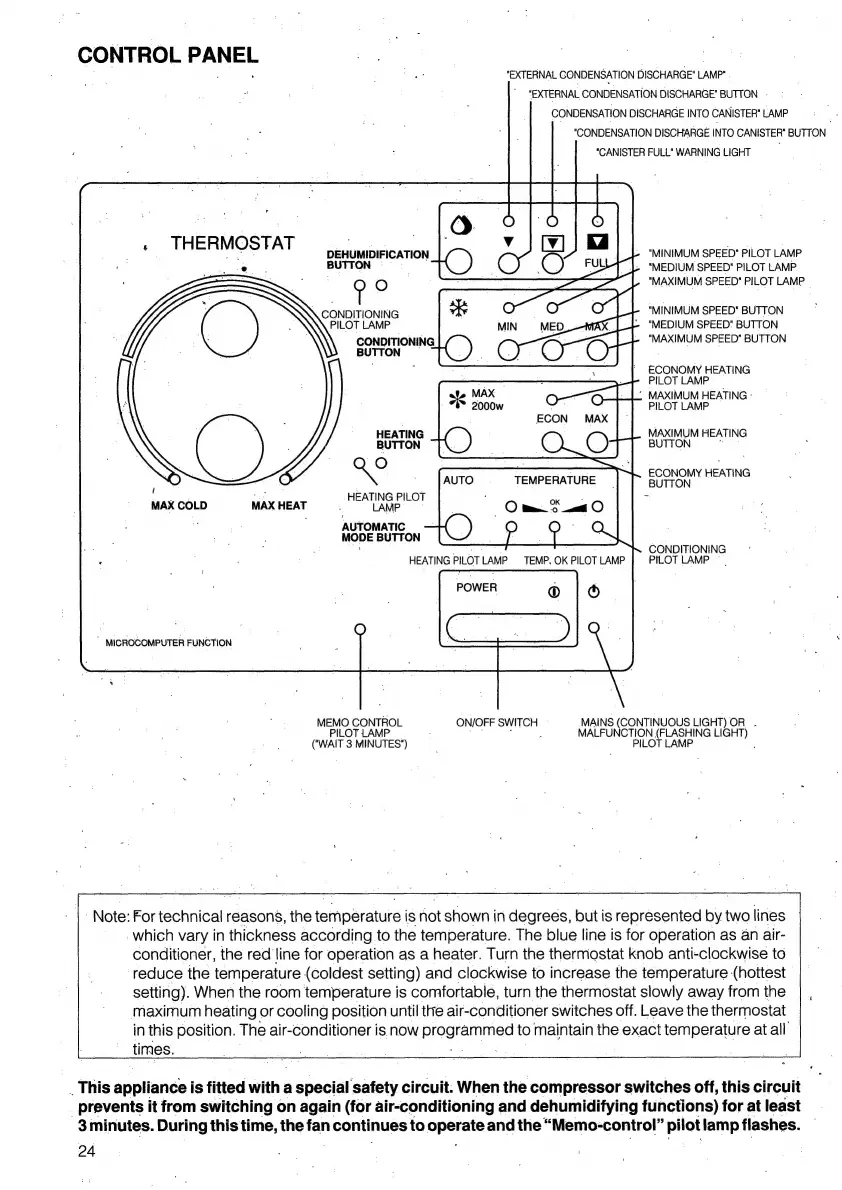

CONTROL PANEL
‘ "EXTERNAL CONDENSATION DISCHARGE" LAMP" .
“EXTERNAL CONDENSATION DISCHARGE" BUTTON -
CONDENSATION DISCHARGE INTO CANISTER" LAMP
"CONDENSATION DISCHARGE INTO CANISTER" BUTTON
"CANISTER FULL" WARNING LIGHT
. THERMOSTAT
DEHUMIDIFICATION * "| "MINIMUM SPEED" PILOT LAMP
eo BUTTON | : » ‘MEDIUM SPEED" PILOT LAMP
9 G “eee ‘MAXIMUM SPEED" PILOT LAMP |
\ CONDITIONING , ‘MINIMUM SPEED" BUTTON
PILOT LAMP — MED—iAX_| - "MEDIUM SPEED" BUTTON
"MAXIMUM SPEED" BUTTON
ECONOMY HEATING
PILOT LAMP
- MAXIMUM HEATING -
PILOT LAMP
HEATING , MAXIMUM HEATING
BUTTON BUTTON *
ne : ———__— SeSnciy UE GING
TEMPERATURE _ BUTTON
a
eh
HEATING
PILOT
:
MAX COLD MAX HEAT LAMP . 0 eae -_ O
: AUTOMATIC
MODE BUTTON
Fa CONDITIONING
HEATING PILOTLAMP TEMP. OKPILOTLAMP | PILOTLAMP
POWER © U)
" MICROCOMPUTER FUNCTION
MEMO CONTROL ON/OFF SWITCH — MAINS (CONTINUOUS LIGHT) OR.
PILOT LAMP - . , MALFUNCTION (FLASHING LIGHT)
("WAIT 3 MINUTES") PILOT LAMP
Note: For sechnieal reasons, the temperature is Aot shown i in degrees, but is Fspresenicd by! two lines
which vary in thickness according to the temperature. The blue line is for operation as an air-
conditioner, the red line for operation as a heater. Turn the thermostat knob anti-clockwise to
‘reduce the temperature. (coldest setting) and clockwise to increase the temperature (hottest
setting). When the room temperature is comfortable, turn the thermostat slowly away from the |,
maximum heating or cooling position until the air-conditioner switches off. Leave the thermostat
in this position. The air-conditioner is. now piosremines to maintain the exact temperature at all
times.
| _ This appliance | is fitted with a vapecia ‘Safety circuit. When the compressor switches off, this circuit
_prevents it from switching on again (for air-conditioning and dehumidifying functions) for at least
3 minutes. During this time, the fan continues to pperate and the “Memo-control” pilot lamp flashes.
24
