Find the video tutorial "How to install your
AEG Extractor Hob 70 cm" by typing out the
full name indicated in the graphic below.
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG
Extractor Hob 70 cm
Filter housing assembly
Before the first use make sure to insert the
long life carbon filters inside the housing with
the handles facing inwards. Refer to
"Cleaning the hood filters". Once the filter
housing is assembled, put it inside the hood
system and place the grid on the hood.
3.5 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type which withstands a
temperature of 125 °C or higher.
• The single wire must have a diameter of
minimum 1,5 mm².
• Speak to your local Service Centre. The
connection cable may only be replaced by
a qualified electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.

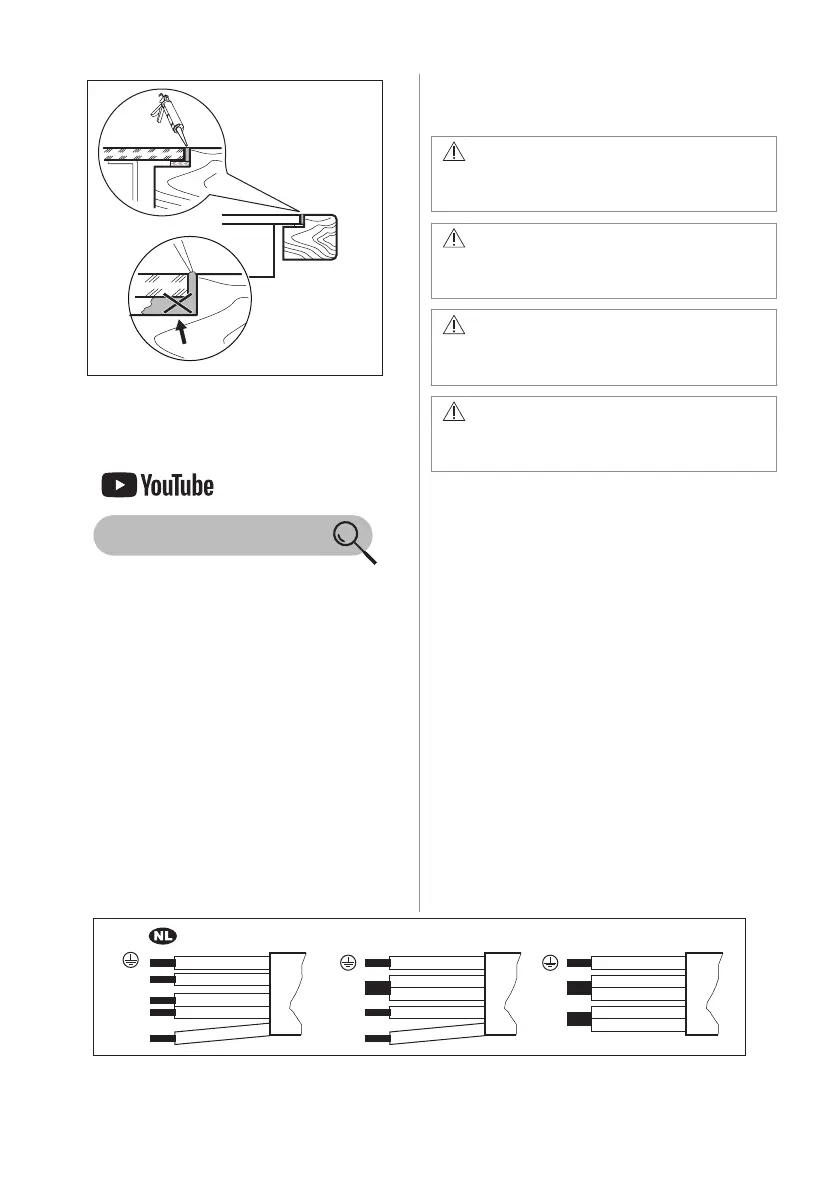

One-phase connection
1. Remove the cable end sleeve from black,
brown and blue wires.
2. Remove a part of the insulation of the
brown, black and blue cable ends.
3. Connect the ends of black and brown
cables.
4. Apply a new wire end sleeve on the
shared wire's end (special tool required).
5. Connect the ends of two blue cables.
6. Apply a new wire end sleeve on the
shared wire's end (special tool required).
Two-phase connection
1. Remove the cable end sleeve from blue
wires.
2. Remove a part of the insulation of the
blue cable ends.
3. Connect the ends of two blue cables.
4. Apply a new end wire sleeve on the
shared wire's end (special tool required).
N
L1
N
L
220-240 V~220-240 V~ 400V2N~
L2
N
N
L1
L2
10 ENGLISH
