3
16 energy storage keeping block
17 energy storage latch
18 closing interlock block
19 handcart interlock block

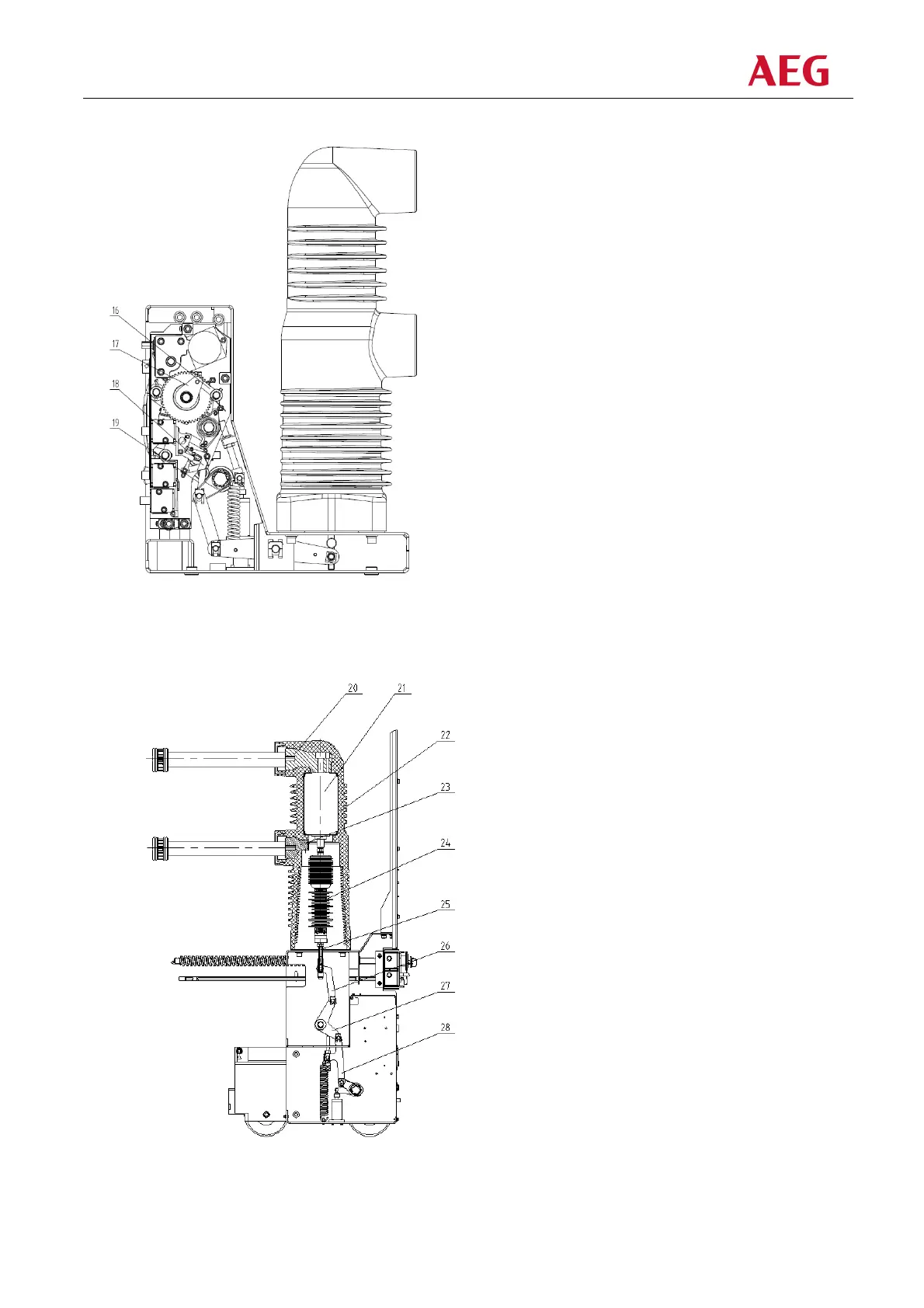

Fig. 2 side view of operating mechanism
20 upper terminal
21 vacuum chamber
22 fixed pole
23 lower terminal
24 insulating pull rod
25 threaded rod
26 connecting plate
27 crank arm
28 connecting plate
Fig. 3 internal structure diagram of circuit breaker (floor type)
