For the Fitter
32

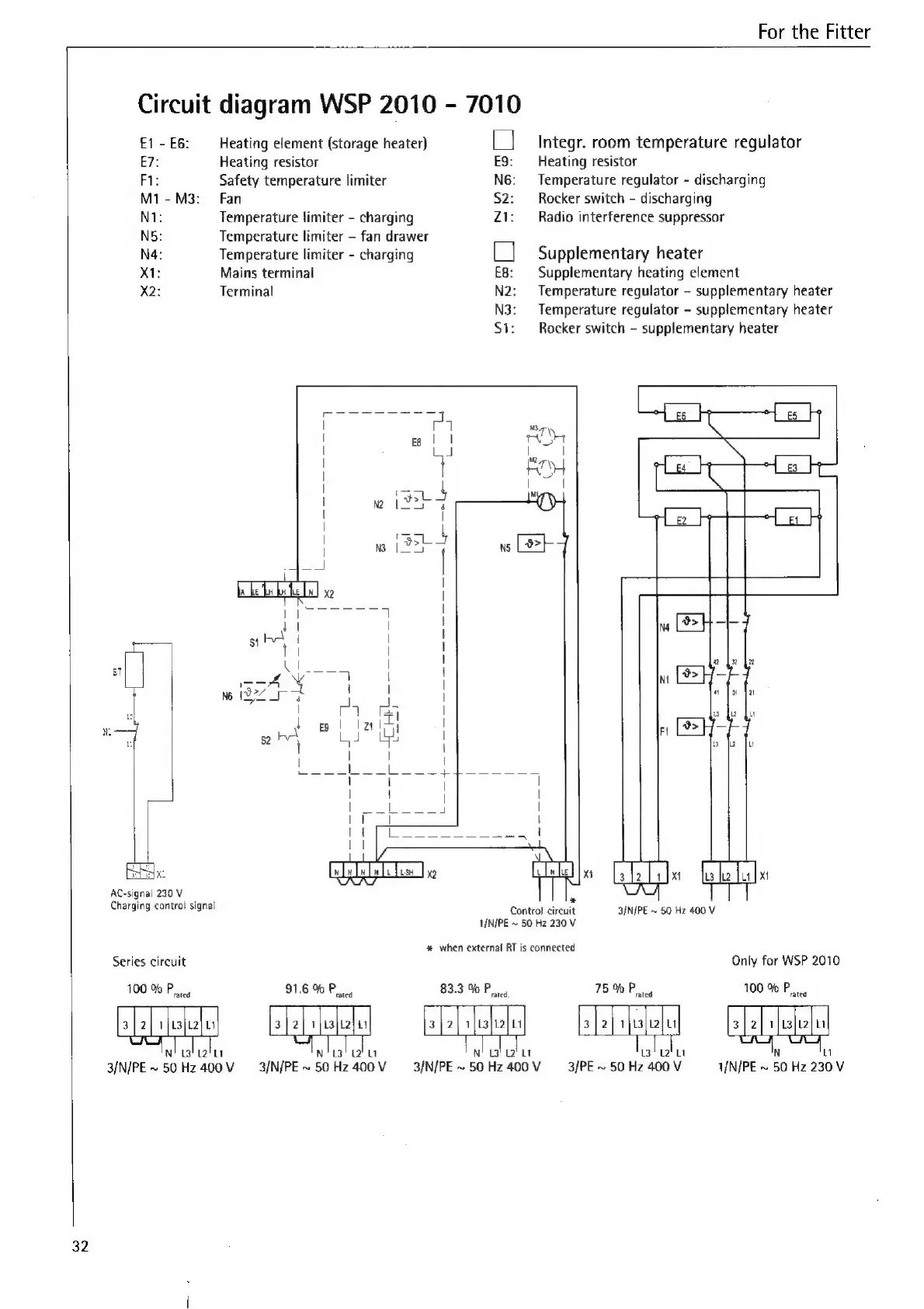

Circuit diagram WSP 2010 - 7010
E1 - E6:
E7:
F1:
M1 - M3:
N1:
N5:
N4:
X1:
X2:
ET
Li
TX:
AC-signal 230 V
Charging contro! signal
Series circuit
Heating element (storage heater)
Heating resistor
Safety temperature limiter
Fan
Temperature limiter - charging
Temperature limiter - charging
Mains terminal
Terminal
L!
Integr. room temperature regulator
E9: Heating resistor
N6: Temperature regulator - discharging
S2: Rocker switch - discharging
Z1: Radio interference suppressor
Temperature limiter - fan drawer
O Supplementary heater
E8: Supplementary heating element
N2: Temperature regulator - supplementary heater
N3: Temperature regulator - supplementary heater
Si: Rocker switch - supplementary heater
pour na
W Fr
EDH
| |
Mi
*
Control circuit
Xi
3ÍN/PE ~ 50 Hz 400 V
1/N/PE ~ 50 Hz 230 V
* when external RT is connected
rated.
100 % Ps 91.6 % P 83.3 % P.
RBBBBB Ë 2) 1)L3)L2} i1 noname
wl ul mia N 13 d u N L3 L2 L1
3/N/PE ~ 50 Hz 400 V
3/N/PE ~ 50 Hz 400 V 3/N/PE ~ 50 Hz 400 V
Only for WSP 2010
75 % Ps 100 % P es
3] 2] 1j13 12[U1 3] 2] |l u
lial ul Li N u
3/PE ~ 50 Hz 400 V 1/N/PE ~ 50 Hz 230 V
