For the Fitter
Caution!
On
a
3/PE
AC
50
Hz
230
V
mains
Rewiring
of
the
storage
heater
load
circuit
necessary!

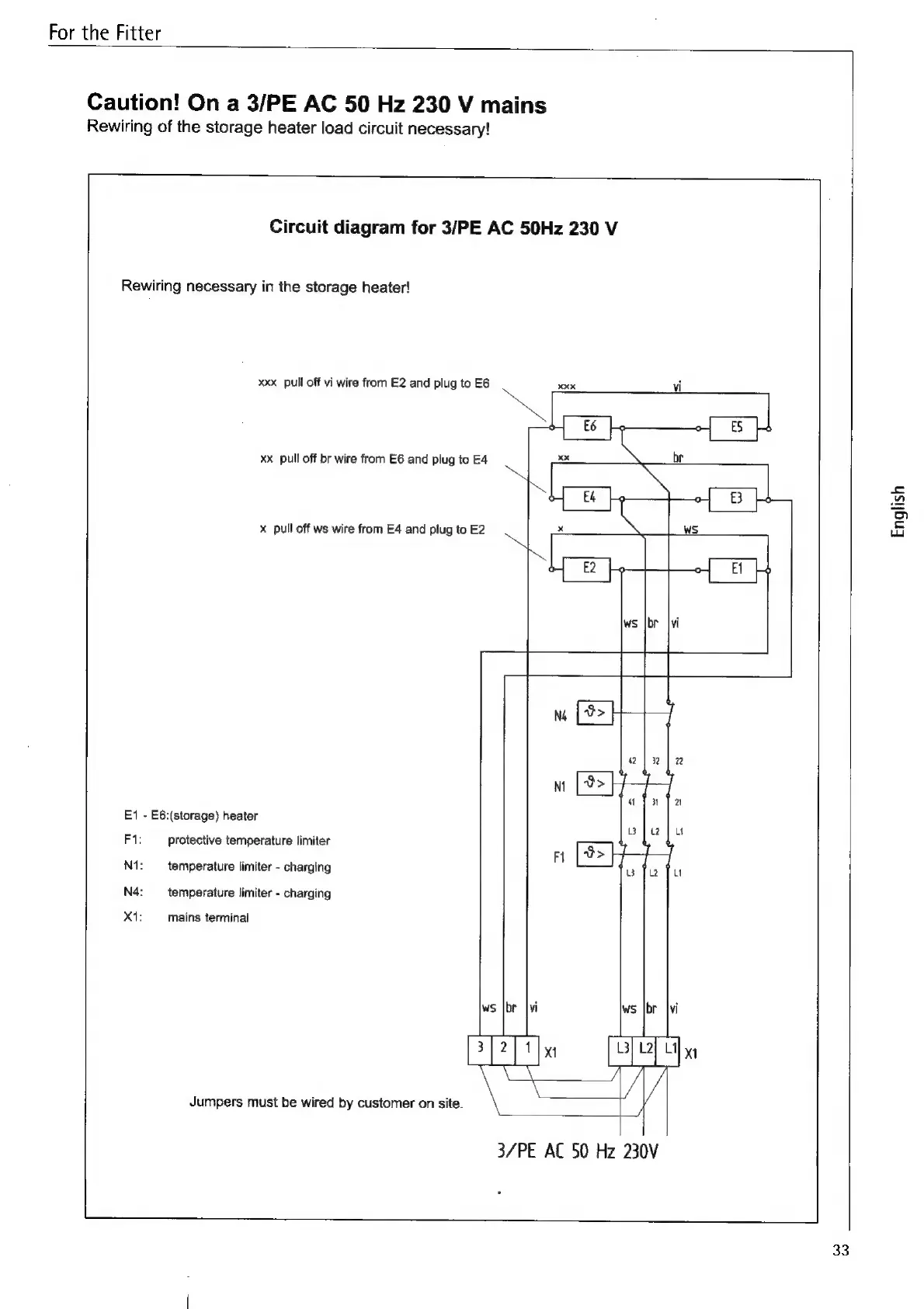

Circuit diagram for 3/PE AC 50Hz 230 V
Rewiring necessary in the storage heater!
xxx
puli
off
vi
wire
from
E2
and
plug
to
E6
xxx
vi
xx pull off br wire from E6 and plug to E4
x pull off ws wire from E4 and plug to E2
E1 - E6:(storage) heater
F1: protective temperature limiter
N1: temperature limiter - charging
N4: temperature limiter - charging
X1: mains terminal
Jumpers must be wired by customer on site.
3/PE AC 50 Hz 230V
33
