530-268
P2008 © Firma WJG, Braunschweig. Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung

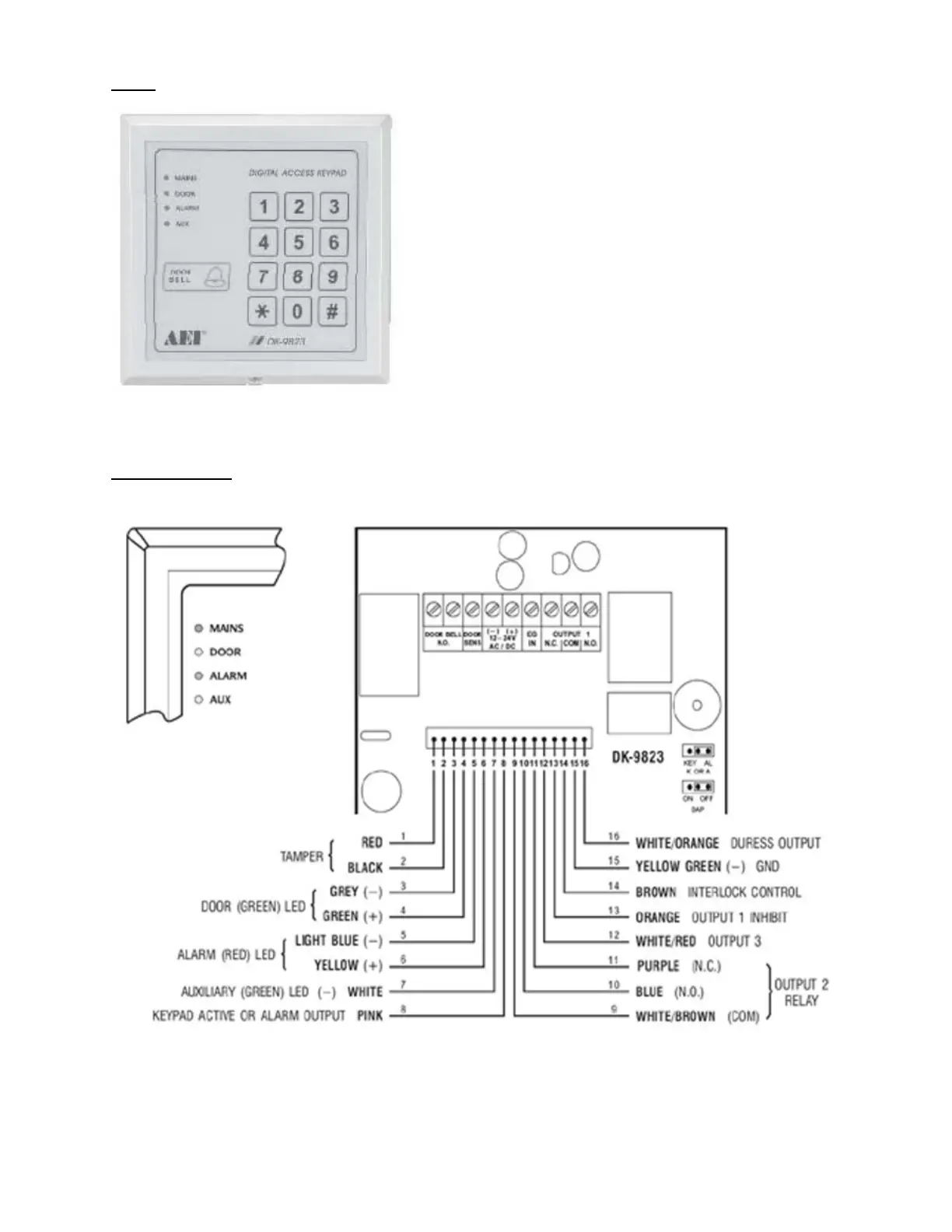

Front:
MAINS: LED (amber) lights when the keypad is active and
shows the current status. It is synchronized with the built in
buzzer.
DOOR: LED (green) lights when a correct code was entered.
ALARM: LED (red) lights when an alarm is set off.
AUX: LED (green). It belongs to the auxiliary contact with
optional purpose.
DOORBELL: Button.
0...9: Numbers of the keypad.
#: Validates code programming.
*: Validates master code programming.
Contact Section:
