AEM 30-0309 - Wiring Installation Diagram; Power and Sensor Connections; Connector A Pinout

2
11/1/2016 - DOCUMENT NUMBER: 10-0309
© 2016 AEM Performance Electronics
30-0309 - BOOST/FUEL PRESSURE 15PSI SAE ONLY

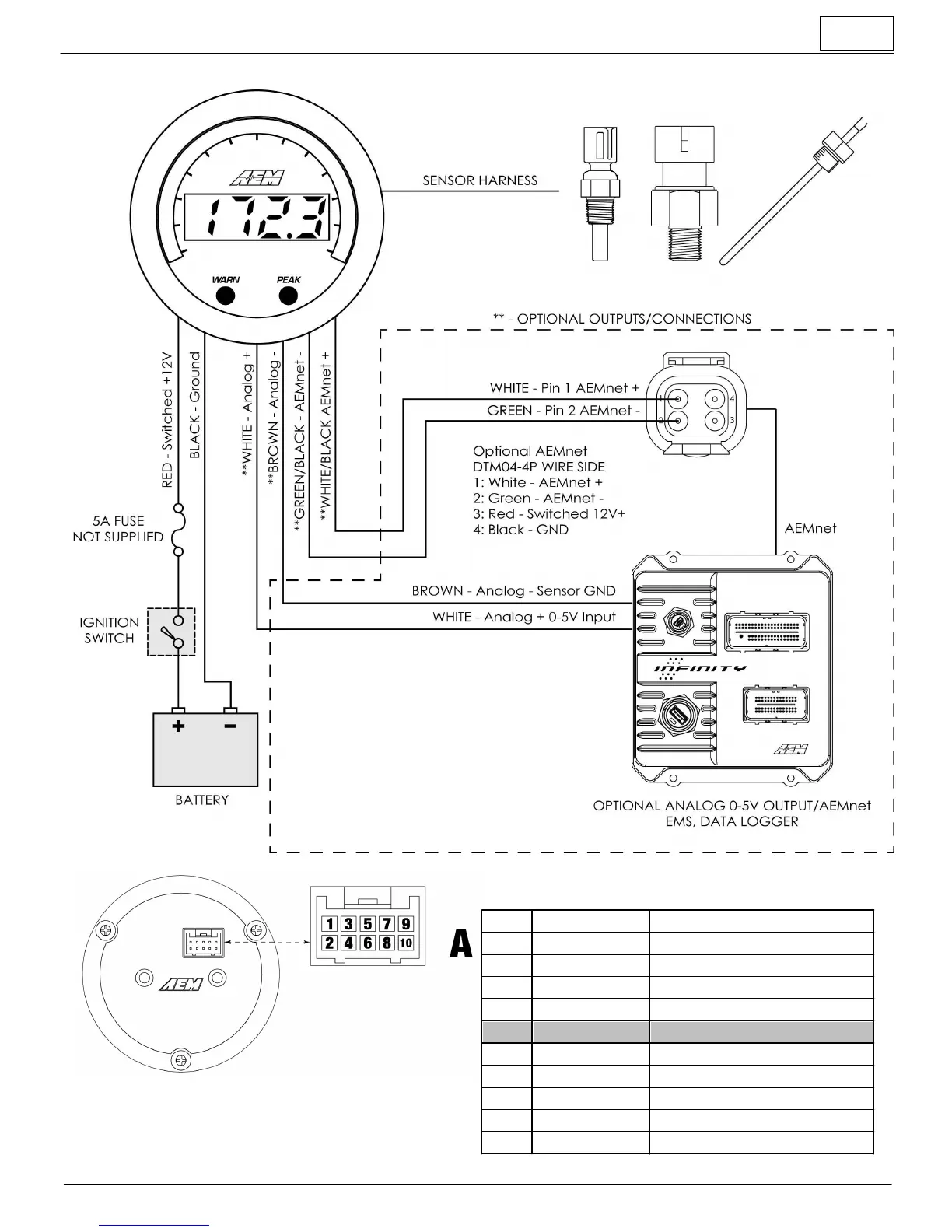

Wiring Installation Diagram
To populate optional extras, use JST P/N: SPUD-001T-P0.5 terminals for 22-26 AWG wire.
Connector A - Power / IO
Pin
Color
Description
1
RED
Switched 12V Power (5A Fuse)
2
BLACK
Power Ground
3
GREEN/BLACK
AEMnet- / CANL
4
WHITE/BLACK
AEMnet+ / CANH
5
NC
NC
6
RED
Sensor 5V
7
GREEN
Sensor Signal Input
8
BLACK
Sensor Ground
9
WHITE
0-5V Analog Output Positive+
10
BROWN
0-5V Analog Output Negative-
