11/1/2016 - DOCUMENT NUMBER: 10-0309

30-0309 - BOOST/FUEL PRESSURE 15PSI SAE ONLY

Gauge Disassembly

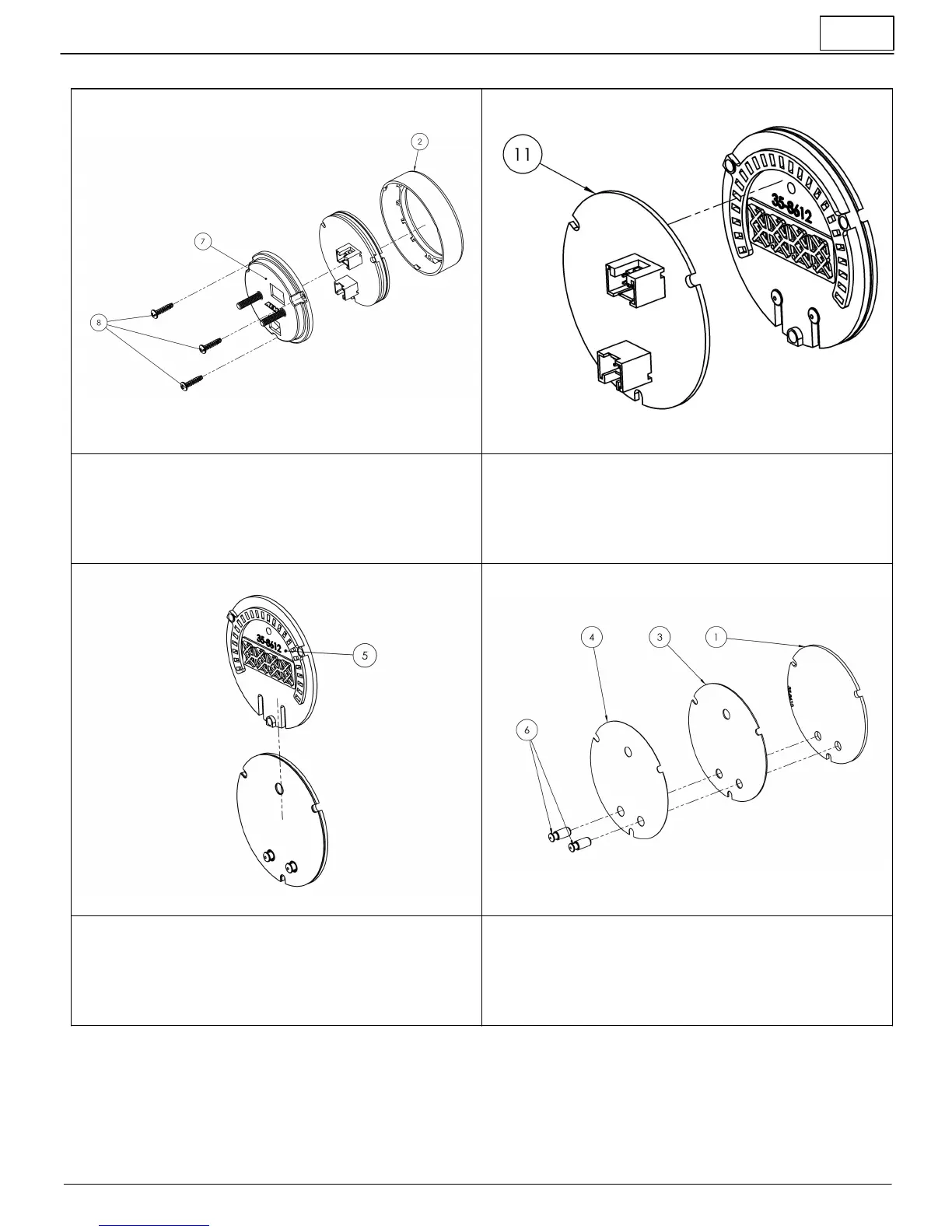

STEP 1 - Remove the three assembly screws (8) using a #1 Phillips

head screwdriver. Separate the bezel (2) and cup (7) from the rest of the

assembly. If you have purchased the optional accessory kit, the silver

bezel may be replaced for the existing bezel at this time

STEP 2 - Separate the PCB (11) from the remaining components

STEP 3 - Slide the light guide (5) upward to remove it, the buttons may

fall out at this time - take care not to lose them

STEP 4 - As you separate the remaining components, diffuser (4),

faceplate (3), lens (1), note the order in which they were assembled.

The faceplate (3) may now be reversed to display an alternate scaling or

replaced for a different color as included in the optional accessory kit
