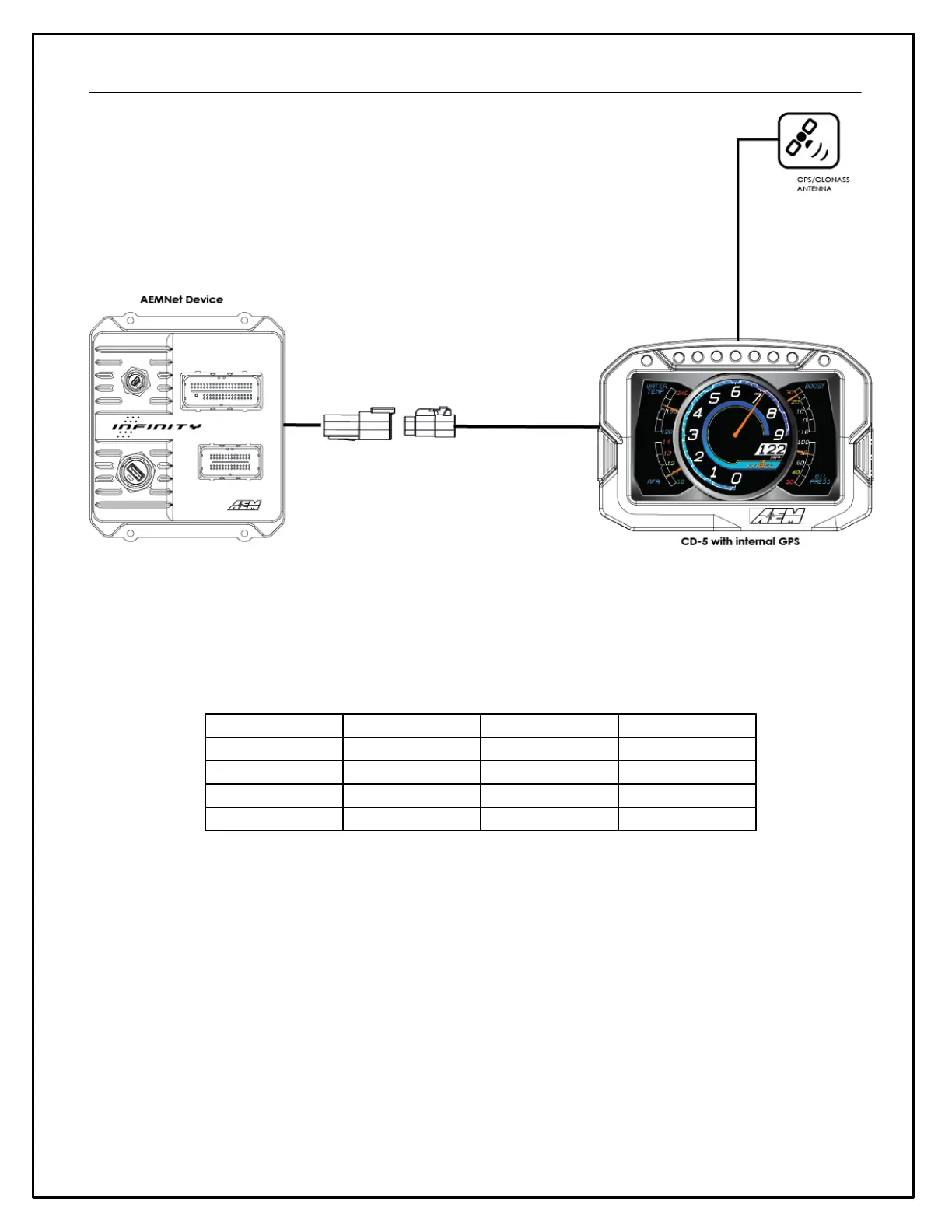

Figure 9 - Track Mapping with CD-5 with internal GPS
If using the AEM 5 Gauge layout file, the GPS channels are already configured and no additional setup is
necessary. To add GPS channels to a layout that doesn’t already have them, start by opening the desired layout
file and then go Setup>Display, click on CAN Receive tab, select Port 1 and then click on Import CAN button.
Locate the VDM/GPS Module dbc file, select either US or SI units and click Open. CAN Import window will open
showing all channels available for import – leave all channels selected and click on Import. All VDM/GPS channels
(listed below) have now been added to the Outputs channel list.
GPS Latitude
GPS Satellite Count
GPS Hours
Acceleration Z*
GPS Longitude
GPS Valid
GPS Minutes
Yaw Rate X*
GPS Speed
GPS Year
GPS Seconds
Yaw Rate Y*
GPS Altitude
GPS Month
Acceleration X*
Yaw Rate Z*
GPS Course
GPS Day
Acceleration Y*
*VDM only
Lap timing can be set up once the GPS channels have been imported. Go Setup>Lap Timing and the software
should automatically recognize the newly added GPS channels and assign them accordingly. If the channels aren’t
set automatically, simply match the following example. If using a product with internal GPS, the GPS channels will
include an "i" suffix after "GPS". For example "GPSi_Speed". The Show Predefined Outputs in the Setup Editor
option must be checked for these channels to appear in the output list. External and internal GPS setup examples
are shown below.
