AEM CD-5 Quick Start Guide

8
Dash Interface

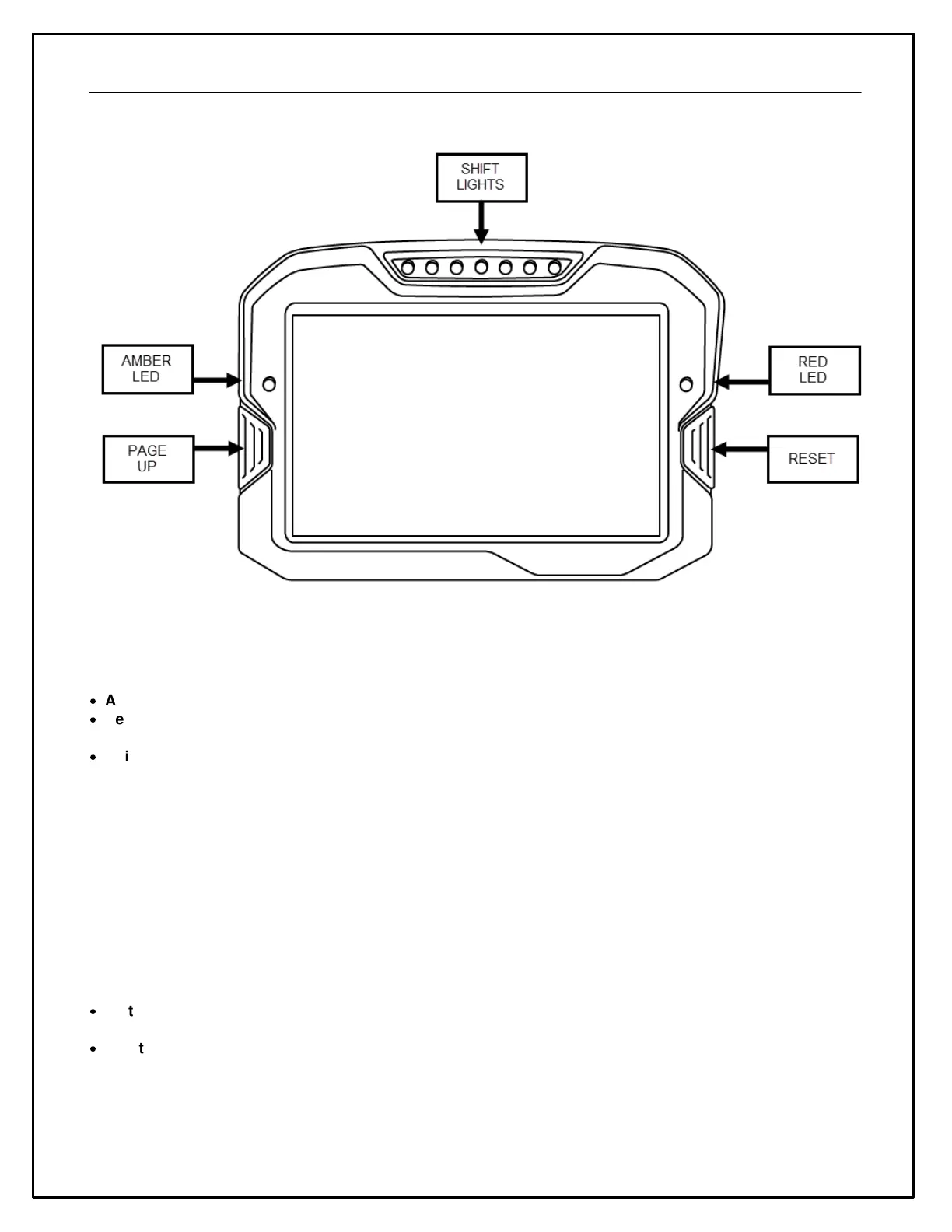

Figure 7 - Dash Interfaces
LEDs
All LEDs are configured by going to Setup>Shift Lights and LEDs.
· Amber - No dedicated function. Is triggered by alarm channels only. Custom triggering criteria possible.
· Red - No dedicated function - is commonly used for MIL/CEL. Is triggered by alarm channels only. Custom
triggering criteria possible.
· Shift Lights - LED color from left to right: green, green, amber, amber, blue, blue blue. To set up shift light, click
on Auto Create Outputs in Shift Light Setup to launch Shift Light Wizard.
o Output - Set to channel to be referenced. This is typically EngineSpeed.
o Start - Set to the rpm at which to light the first green LED
o Offset - Sets the rpm increment to light the next LED.
Shift Light Wizard Example: Take total shift light rpm range (flash rpm - start rpm) and divide by 7 (total number of
LEDs). For instance, to have shift light start at 5000 rpm and flash at 7000 rpm, set offset to 285 (7000-5000/7).
Buttons
Buttons are accessible directly from the face of the dash itself or may be remotely mounted (on steering wheel, etc)
- see Optional Wiring.
· Left - Page Up. Press once to move to next display screen. Press to clear Alarm Screen and return to regular
display pages.
· Right - Reset. Resets any count up, count down or lap timers that are currently being shown on the displayed
screen.
