AEM CD-5 Quick Start Guide

3

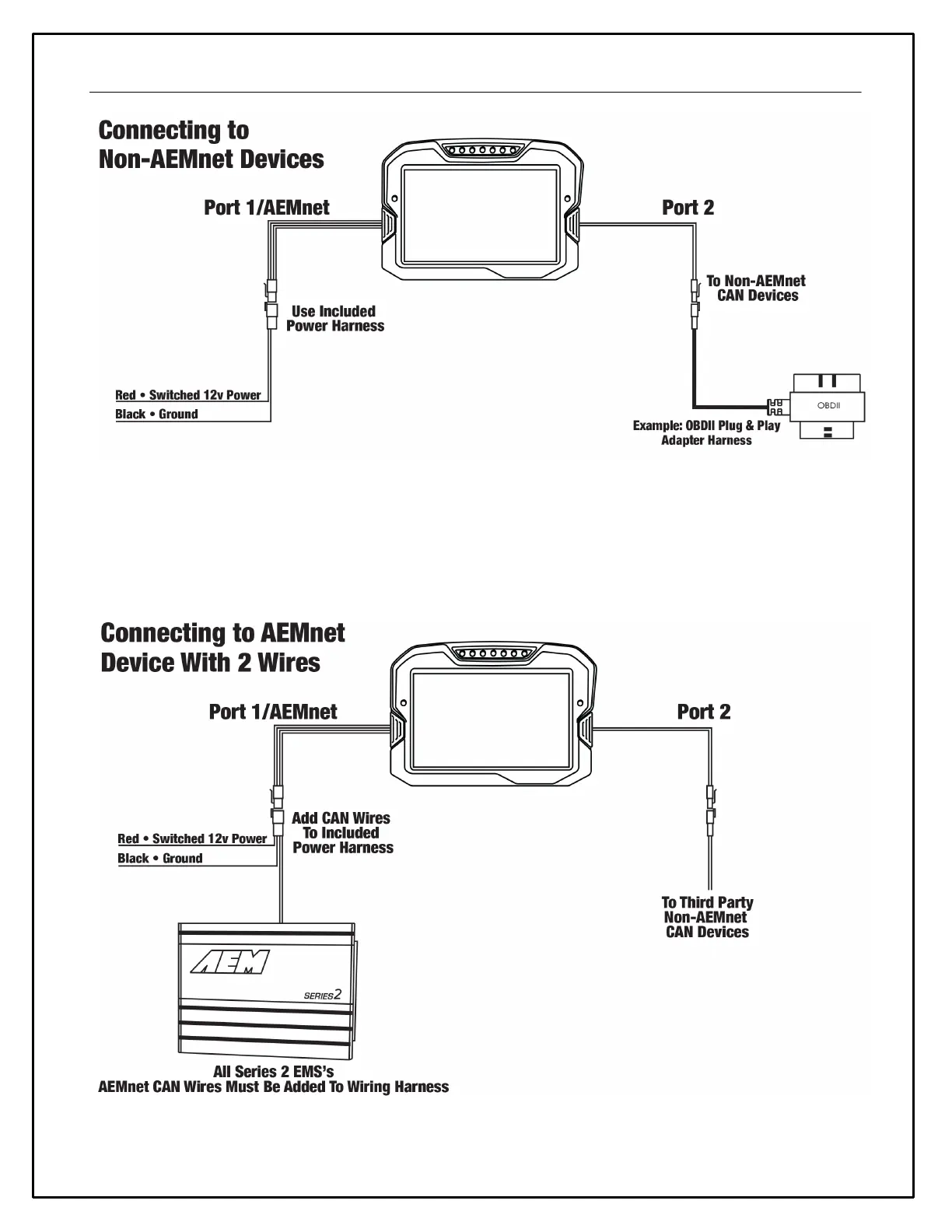

Figure 1 - Connecting CD dash to non-AEMnet devices requires that included power harness be used to supply power and
ground to the dash. Red and black wires from power harness connector should be connected to switched, fused 12v
power and ground, respectively.
Figure 2 - Connecting CD dash to AEMnet devices with only a 2 wire interface requires that the included power harness be
used to supply power and ground to the dash. Add the two CAN signal wires for a complete connection. Red and black
wires from power harness connector should be connected to switched, fused 12v power and ground, respectively.

AEM CD-5 Specifications

General

Brand	AEM
Model	CD-5
Category	Monitor
Language	English
