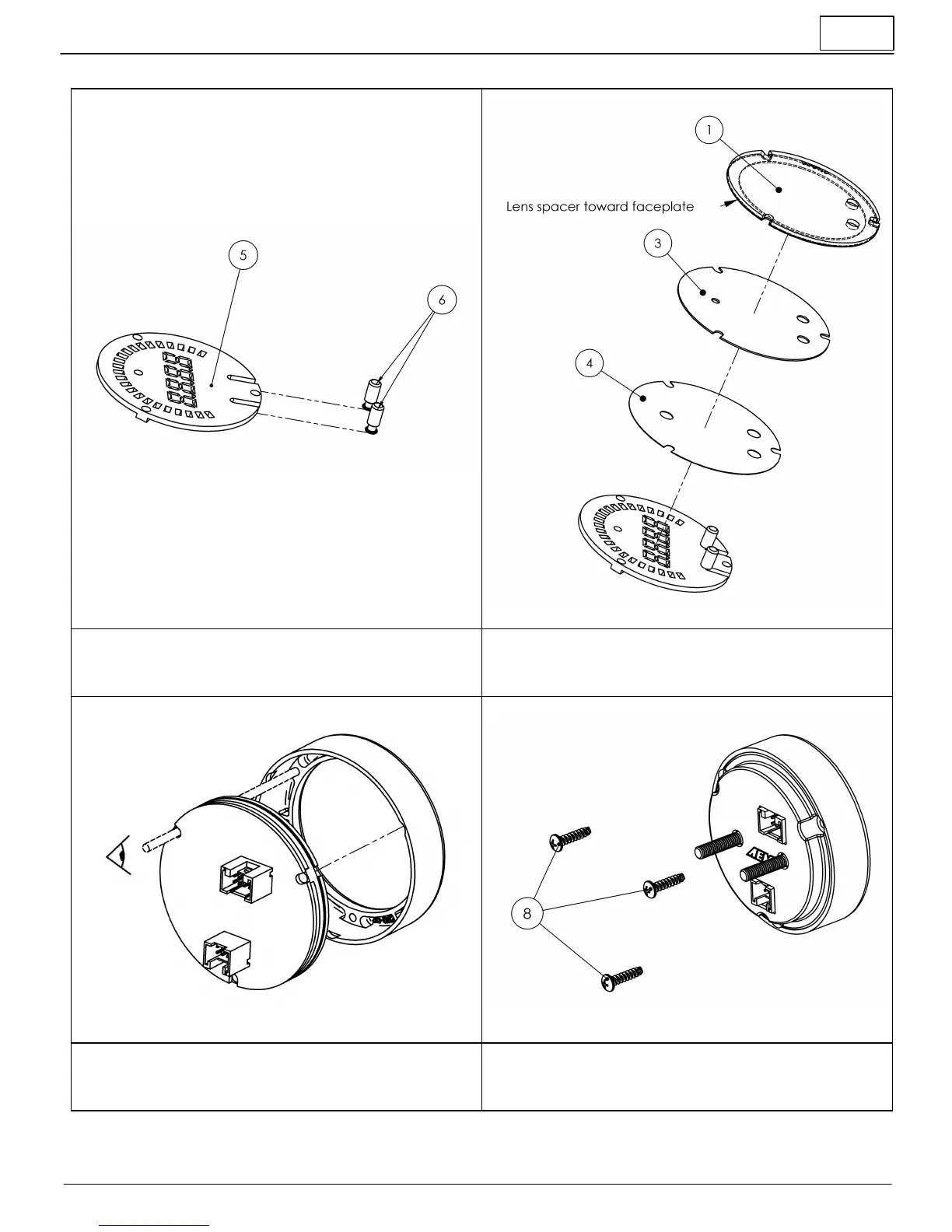

Gauge Assembly

STEP 1 - Place the light guide (5) on a flat surface (black side up) and

slide the buttons (6) into the slots

STEP 2 - Stack the diffuser (4), faceplate (3), and lens (1) in order, over

the buttons, and on to the light guide

STEP 3 - Reassemble the PCB and display stack with the bezel, making

sure screw holes are aligned through the entire assembly

STEP 4 - Reassemble and tighten screws to 2 in-lb (previously

assembled bezel) or 3 in-lb (new bezel). Do not over-tighten!
