AEM X-SERIES User Manual

7

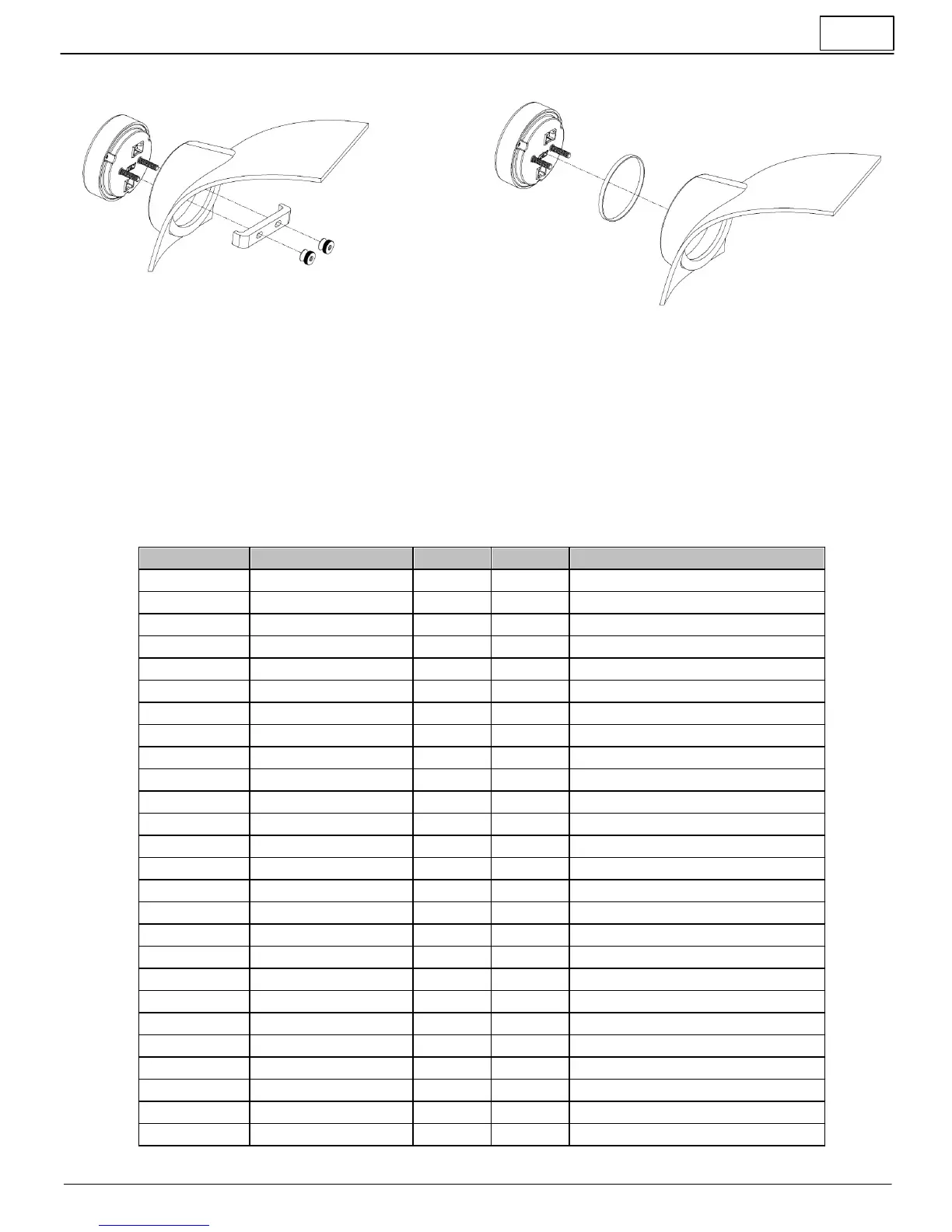

Gauge Installation
Installation using supplied bracket
Installation without bracket, using rubber band
A 2-1/6" (52mm) hole is required to mount the X-Series gauge. A bracket and thumbscrews are provided to facilitate
installation into a panel or gauge pod. In some cases, the gauge cup may be pushed into a mounting hole causing an
interference fit strong enough to retain the gauge; the supplied rubber band may be fit to the gauge to create a tighter fit in
mounting holes slightly larger than 52mm. It is, however, recommended that gauges be mounted securely using the
supplied bracket to ensure they never become loose and cause a hazard during vehicle operation.
Note: The gauge is not water-proof and should not be installed in a location with exposure to water or snow. Damage
caused by water ingress will not be covered under warranty.
AEMnet Channels
Display Label
Description
US
SI
Source
AF.Fb
Inj 1 LambdaFB
%
%
Infinity EMS
AFr.1
Lambda 1
AFR
l
EMS Series 2 / EMS-4 / Infinity
AFr.2
Lambda 2
AFR
l
EMS Series 2 / EMS-4 / Infinity
ALt
Altitude
ft
m
VDM
bAtt
Battery Volts
V
V
EMS Series 2 / EMS-4 / Infinity
bSt.d
Boost Control Duty
%
%
Infinity EMS
bSt.t
Boost Target
psig
kPa
Infinity EMS
CUt.S
SparkCut [RPM]
rpm
rpm
Infinity EMS
CYL.1
Lambda 1
AFR
l
4 Channel UEGO set on MODE 1
CYL.1
Lambda 1
AFR
l
4 Channel UEGO set on MODE 3
CYL.1
Lambda 1
AFR
l
4 Channel UEGO set on MODE 6
CYL.2
Lambda 2
AFR
l
4 Channel UEGO set on MODE 1
CYL.2
Lambda 2
AFR
l
4 Channel UEGO set on MODE 4
CYL.2
Lambda 2
AFR
l
4 Channel UEGO set on MODE 6
CYL.3
Lambda 3
AFR
l
4 Channel UEGO set on MODE 1
CYL.3
Lambda 3
AFR
l
4 Channel UEGO set on MODE 3
CYL.3
Lambda 3
AFR
l
4 Channel UEGO set on MODE 6
CYL.4
Lambda 4
AFR
l
4 Channel UEGO set on MODE 1
CYL.4
Lambda 4
AFR
l
4 Channel UEGO set on MODE 4
CYL.4
Lambda 4
AFR
l
4 Channel UEGO set on MODE 7
CYL.5
Lambda 5
AFR
l
4 Channel UEGO set on MODE 2
CYL.5
Lambda 5
AFR
l
4 Channel UEGO set on MODE 3
CYL.5
Lambda 5
AFR
l
4 Channel UEGO set on MODE 7
CYL.6
Lambda 6
AFR
l
4 Channel UEGO set on MODE 2
CYL.6
Lambda 6
AFR
l
4 Channel UEGO set on MODE 4
CYL.6
Lambda 6
AFR
l
4 Channel UEGO set on MODE 7

AEM X-SERIES Specifications

General

Display	Digital
Accuracy	±0.1 AFR
Outputs	0-5V
Power Supply	12-18V
Diameter	2.0625" (52mm)
Dimensions	2.0625" (52mm) diameter
