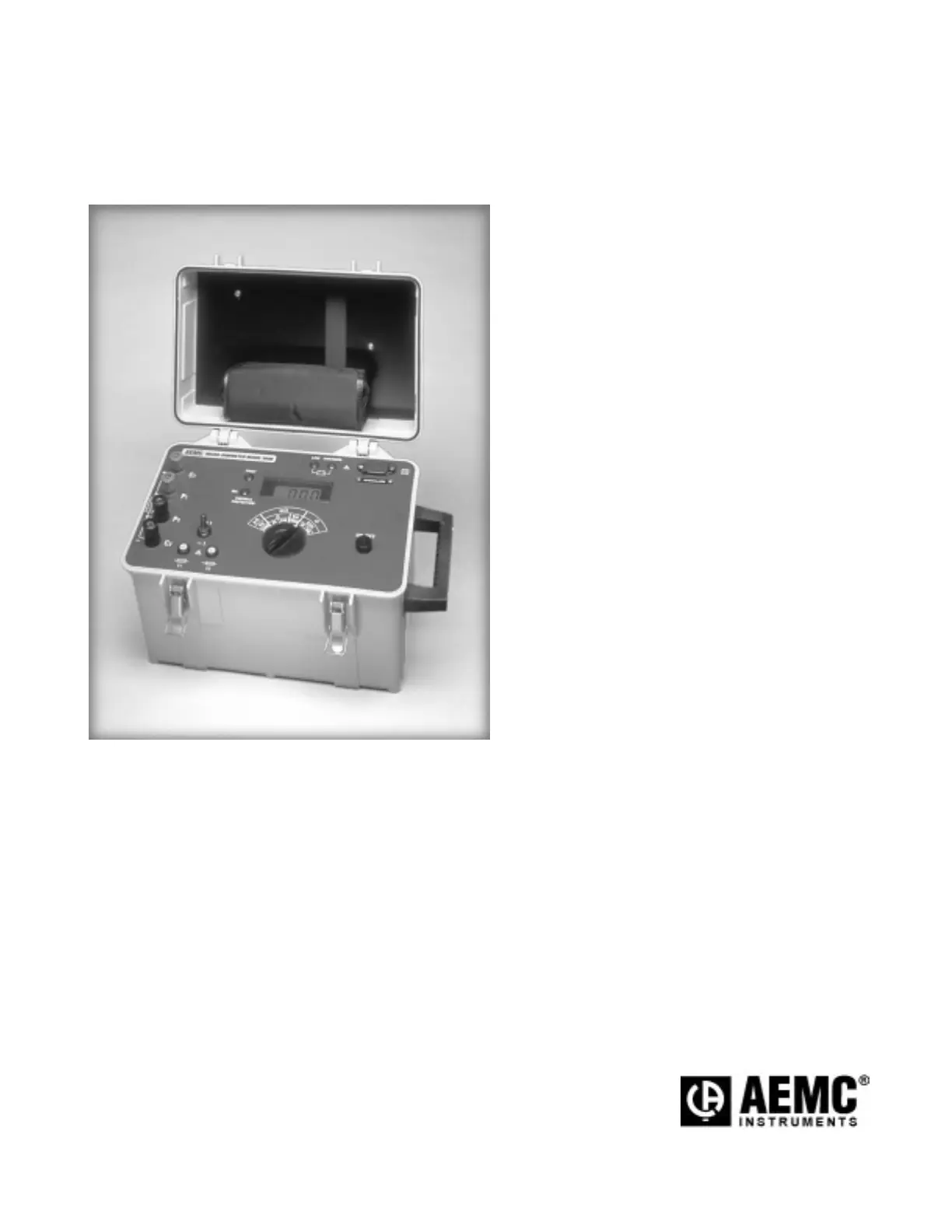

AEMC 5600 Repair And Calibration Manual

Micro-Ohmmeter
Model 5600
•
Digital low resistance ohmmeter
•
Four-terminal Kelvin resistance
measurement
•
10 A regulated test current
•
0.25% basic accuracy
•
1 µ
Ω
resolution
•
Six selectable resistance ranges
•
Reverse polarity switch
•
Rechargeable NiCad battery
with built-in charger
•
Overload and input fuse protection
•
Automatic decimal point and zero
•
Very rugged field case for
industrial applications
MICRO-OHMMETER MODEL 5600 REVISED MANUAL
•
Main Printed Board modified to include all protections
•
Add Resistor R106, R107, R108, C041 and RV1
•
Removed CR03 and CR04
•
Display No. change from 524135A00 to 125135A00A
•
R078 changed from 521938C15 to 521549T00
•
CR16 diode 1N4148 replaced by 1.5KE15V
•
Add CR032

AEMC 5600 Specifications

General

Brand	AEMC
Model	5600
Category	Measuring Instruments
Language	English
