Aeon Labs Aeotec Nano Dimmer - Gang Box Mounting Instructions

25/04/2017 15)43Nano Dimmer user guide. : Aeotec by Aeon Labs
Page 7 sur 11https://aeotec.freshdesk.com/support/solutions/articles/6000162176-nano-dimmer-user-guide-

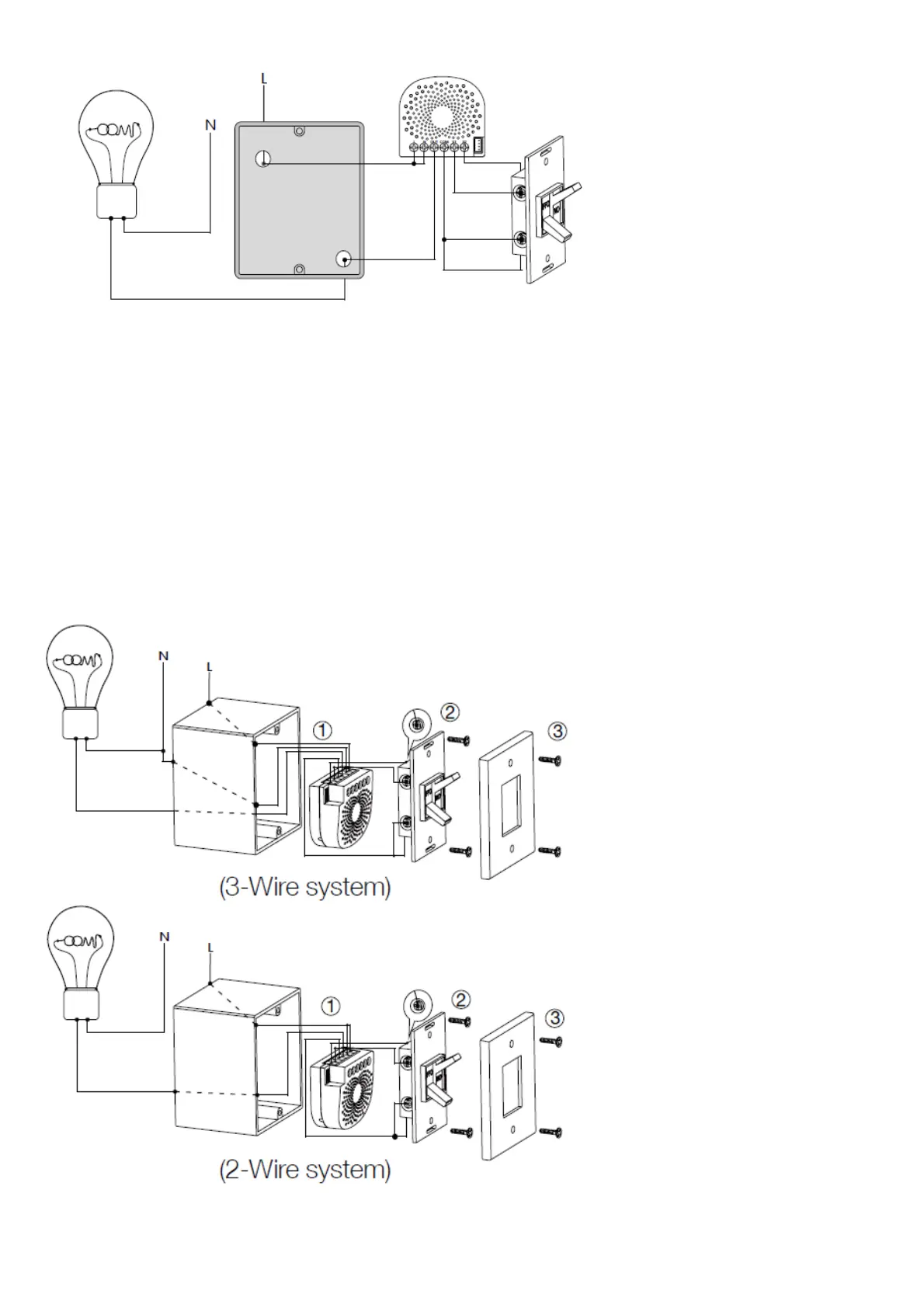

In 2-Wire system, since the power input terminals of Nano Dimmer just need to connect one power wire, so the
terminal of “N” on Nano Dimmer should connect to the “L” on the Nano Dimmer.
4. Mounting the gang box.
a. Position all wires to provide room for the device. Place the Nano Dimmer inside the gang box towards the
back of the box.
b. Position the antenna towards the back of the box, away from all other wiring.
c. Reinstall the Nano Dimmer to the gang box.
d. Reinstall the cover onto the gang box.
