AER Compact Slope - Controls and Connections Overview; Front Panel Controls and Inputs

5
channels 1 + 2
efx
mains & master

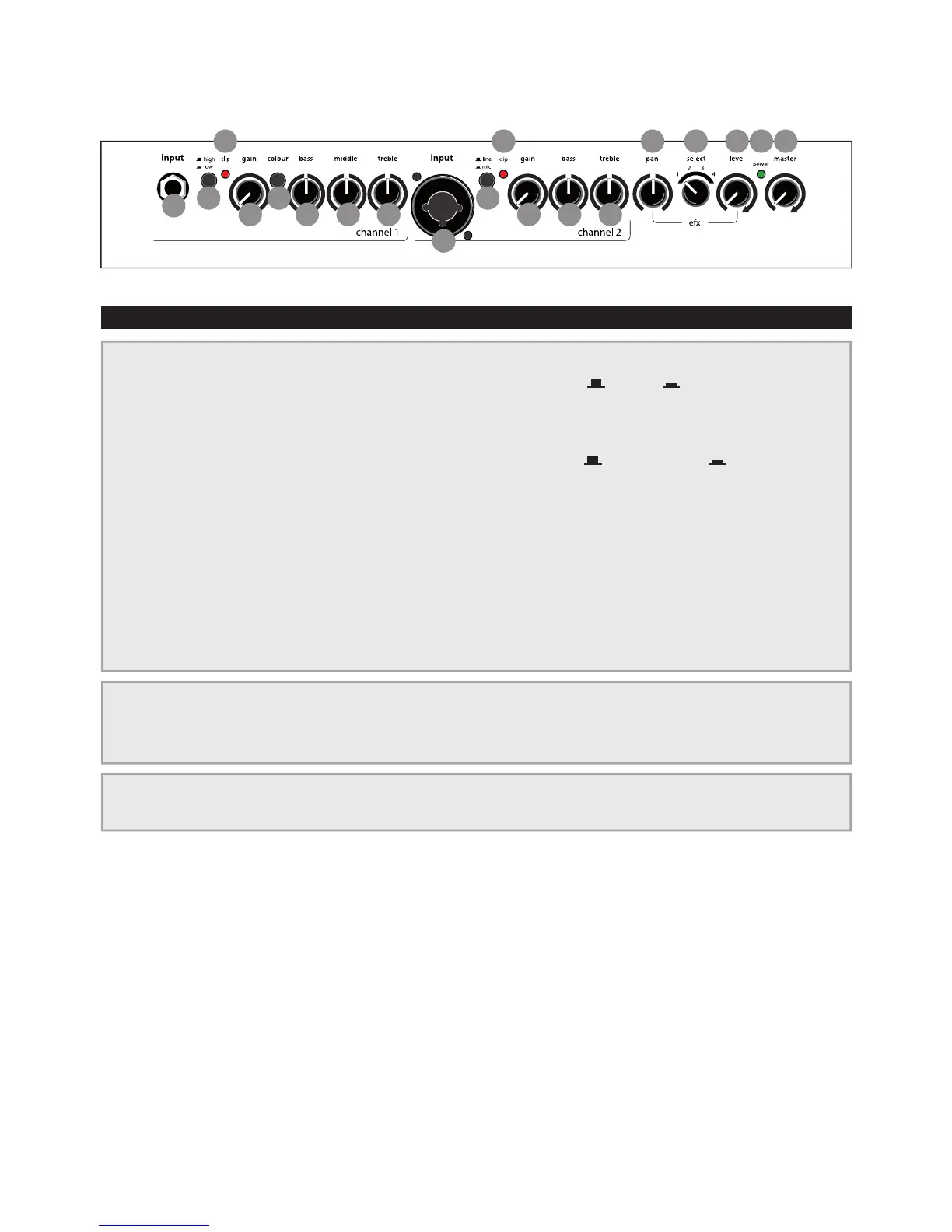

3.1 Front side
1) input (ch. 1) signal input, socket for 6,3 mm mono jackplug
2) high/low input sensitivity switch, attenuator = o  = on
3) clip overload indicator
4) gain input level control
5) colour tone colour  lter activation switch = not active = active
6) bass bass frequency level control
7) middle middle frequency level control
8) treble treble frequency level control
9) input (ch. 2) signal input, combo-socket for 6,3 mm mono jackplug and
XLR-connectors
10) line/mic signal source selector switch: line (only via jackplug)
for instruments (pickup) and other line level sources,
mic (only via XLR-connector) for microphones
11) pan e ect signal distribution control
12) select e ect select switch
13) level level control internal e ect
14) power on/o status indicator
15) master master level control
3. Controls and connections
IF_Compact603_20120529
Compact 603
1
2
3 3
4 4
5
6 6
7
8 8
9
10
11 12 13 14 15
