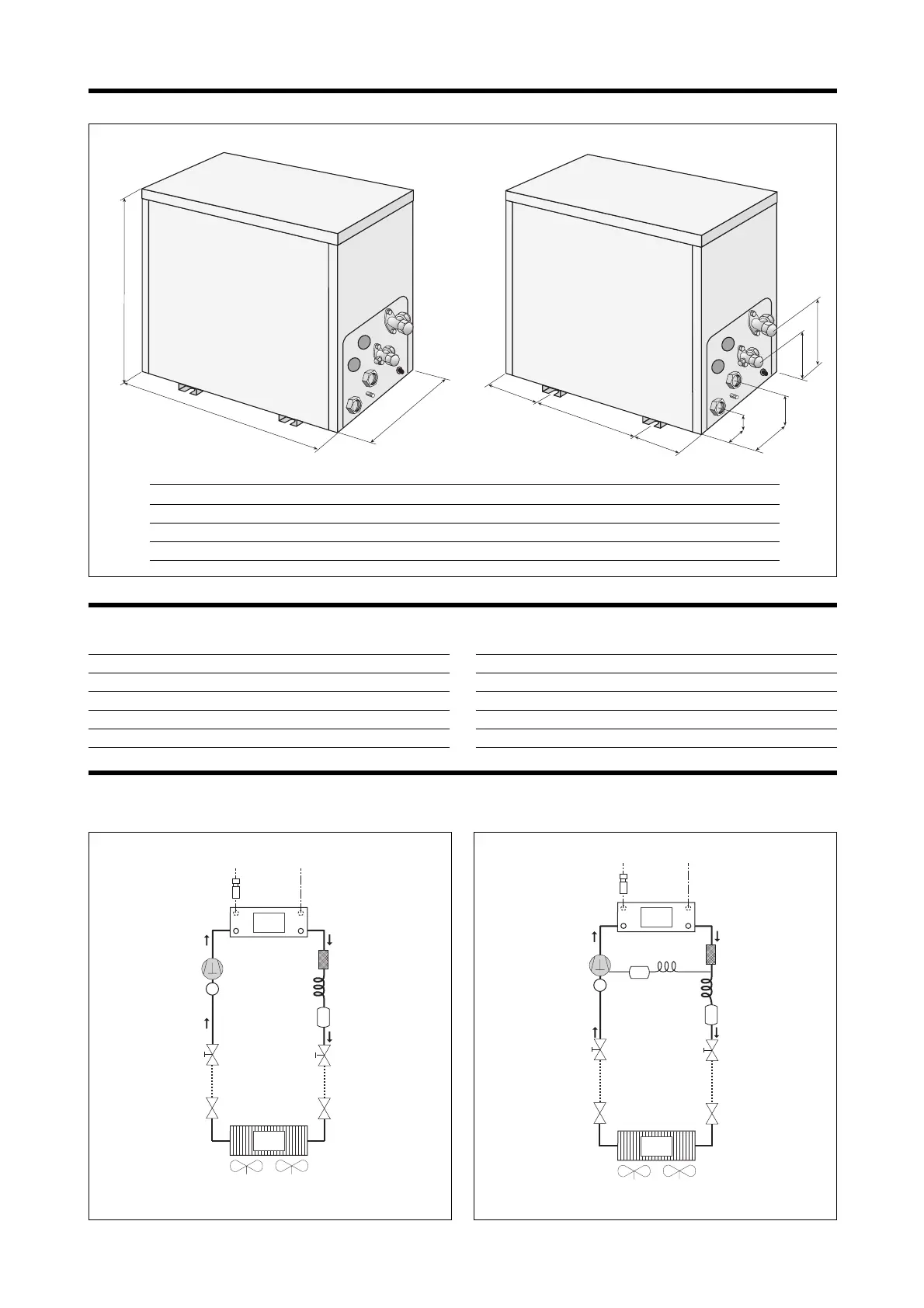

DIMENSIONI • DIMENSIONS [mm]
B
A
C
ABC
CWX 1207 450 470 260
CWX 1807 450 470 260
CWX 2407 570 470 260
267
83
137
41
192
96
54
121
82
LEGENDA PER CIRCUITO FRIGORIFERO • CHILLER CIRCUIT LEGEND
CL = Capillare • Capillary tube
CLI = Capillare iniezione • Injection capillary tube
CN = Condensatore • Heat exchanger
CP = Compressore • Compressor
EV = Evaporatore • Heat exchanger
FC = Raccordo frigorifero • Flare connection
FD = Filtro deidratatore • Filter-drier
FM = Filtro meccanico • Filter
LG = Linea frigorifera • Refrigerant line
RU = Rubinetto • Cock
SEP = Separatore di liquido • Liquid separator
V = Ventilatore • Fan
CP
FD*
CL
SEP
EV
FC
FC
RU
RU
V
V
LG
LG
FM
CN
VP
CWX 1207
CP
CL
SEP
EV
FC
FC
RU
RU
V
V
LG
LG
CLI
FM
FM
FD*
CN
VP
CWX 1807 - 2407
LAY-OUT CIRCUITO FRIGORIFERO E DISPOSITIVI DI CONTROLLO
LAY-OUT OF CHILLER CIRCUIT AND CONTROL DEVICES
