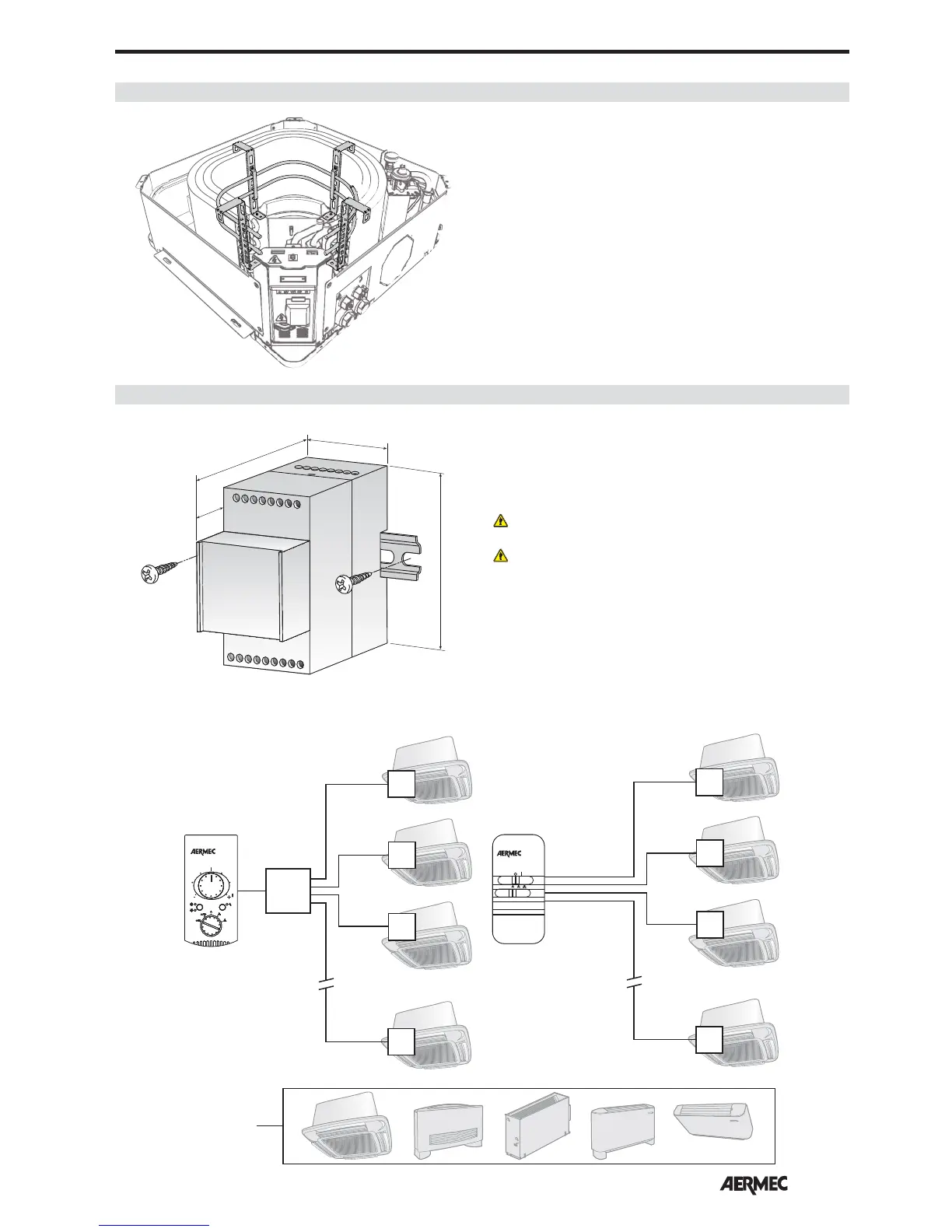

SIT3 - SIT5 INTERFACE CARDS
V1
V2
V3
OUTPUT
N
PH
L
V2
V1
N
V3
INPUT
52
65
90
15
DIN
SIT 3
SIT 5
SIT 3
Each fan coil fitted with a SIT3 card becomes a Slave and can
be controlled from a centralised control panel with electro-
mechanical selector or with a SIT 5. Up to ten (FCX range)
fan coils fitted with SIT 3 can be applied to a single central-
ised control.
The electronic control panels or those with valve control
must be interfaced with a SIT 5.
The electromechanical control panels with just the speed
control can be fitted directly to the SIT 3 without the SIT 5
interface.
SIT 5
The SIT 5 accessory, a Master interface card, connects to the
electronic control panels with or without valve or electric
resistor valve control.
The SIT5 interface card requires all fan coils connected to it
(up to 10 ) to be fitted with SIT3 Slave interface cards.
RXLE - RXLE20 ELECTRIC RESISTOR FOR HEATER SYSTEM
RXLE
RXLE20
Electric resistor for heater system to be installed on FCL
units.
This accessory can only be used with the FCL models fitted
with GLL_M, GLL_R or GLL_N range grilles.
