VMF-E4 / VMF-E4D VMF RANGE THERMOSTAT CONTROL PANEL, WALL MOUNTING
Wired control panel, user interface for thermostats incorporated
in GLL10N and GLL20N grille units, and for all other VMF range
thermostats.
The panel must be used with VMF range thermostats and
operates a single or networked fan coil (see characteristics of the
combined thermostat)
Wall mounting with connection cable.
Digital display, "Touch" keyboard, only 11mm thick and mounted
on the wall in Type 503 recessed electrical boxes and compat-
ible with the Type 502 boxes, M20 (see installation manual).
The following can be selected from the control panel:
- Switching the device on and off
- The ventilation speed, in automatic or manual mode
- The room temperature
- The operating mode
The digital display also shows:
- Thermostat On / Off
- The room temperature / set temperature
-
The ventilation speed with 3 positions displayed by graduated bar
- The operating mode
(Automatic / Heating / Cooling)
- The night-time comfort function (Sleep)
- Supervisor controlled operating mode (VMF-E5B / VMF-E5N)
See the accessories manual for complete information on its
features.
VMF-E4
VMF-E4D
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
MAX 30m
FCL + GLL10N
FCL + GLL20N
VMF-E5B
VMF-E5N
MASTER 1MASTER 2MASTER 3
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
MASTER x
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
VMF-E4
VMF-E4D
VMF-E4
VMF-E4D
VMF-E4
VMF-E4D
ACCESSORIES VMF SYSTEM CONTROL PANELS

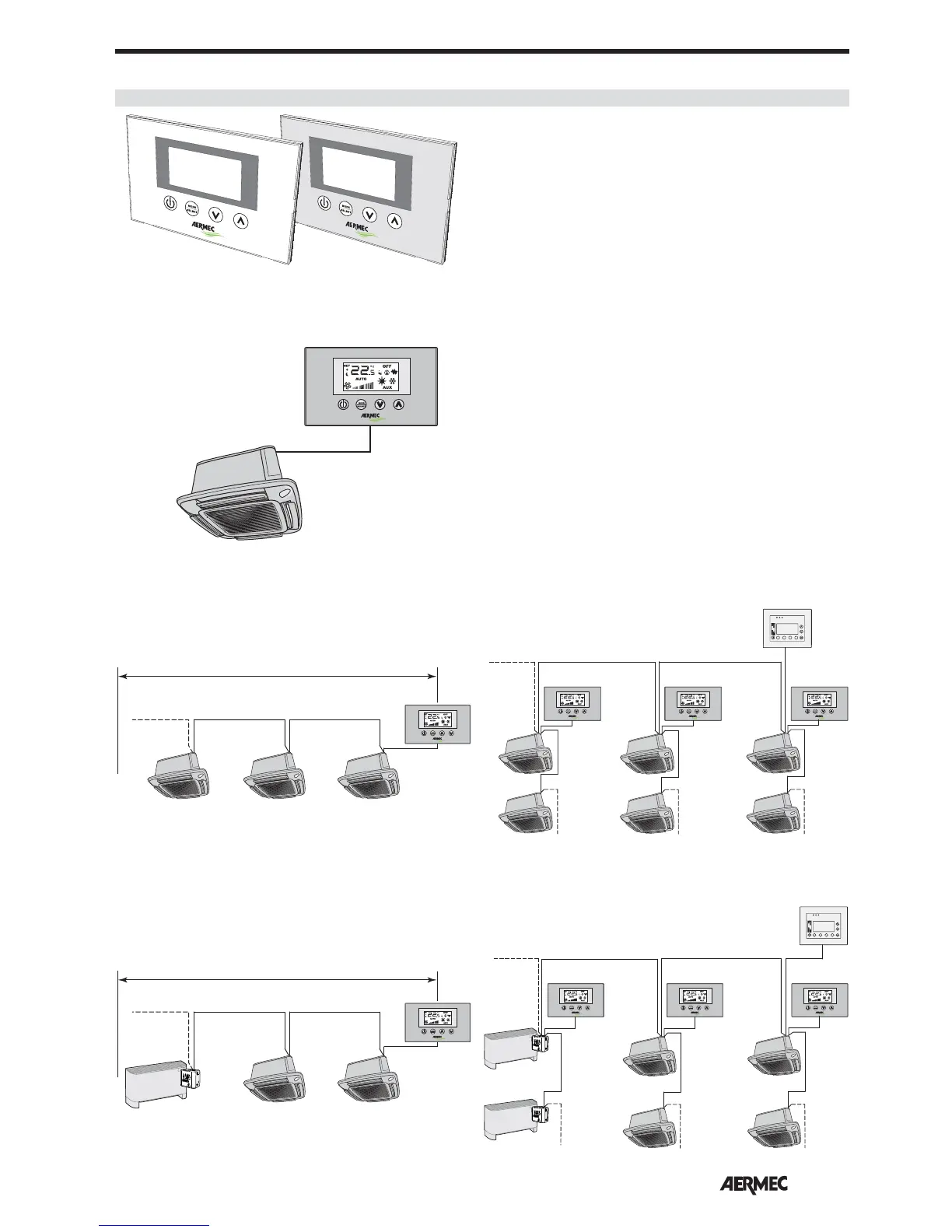

Example of a TTL local network consisting only of FCLs Example of a network with VMF-E5B / VMF-E5N supervisor
consisting only of FCLs
VMF-E4
FCLI + GLLI10N
FCLI + GLLI20N
FCL + GLL10N
FCL + GLL20N
FCL + GLL10N
FCL + GLL20N
FCX + VMF-E1
FCXI + VMF-E18
MAX 30m
VMF-E4D
VMF-E5
FCX + VMF-E1
FCXI + VMF-E18
MASTER 1
MASTER 2
MASTER 3
FCX + VMF-E1
FCXI + VMF-E18
MASTER x
FCLI + GLLI10N
FCLI + GLLI20N
FCL + GLL10N
FCL + GLL20N
FCLI + GLLI10N
FCLI + GLLI20N
FCL + GLL10N
FCL + GLL20N
FCLI + GLLI10N
FCLI + GLLI20N
FCL + GLL10N
FCL + GLL20N
FCLI + GLLI10N
FCLI + GLLI20N
FCL + GLL10N
FCL + GLL20N
VMF-E4
VMF-E4D
VMF-E4
VMF-E4D
VMF-E4
VMF-E4D
Example of a TTL local network consisting of mixed fan coils Example of a network with VMF-E5B / VMF-E5N supervisor
consisting only of mixed fan coils
VMF-E4 / VMF-E4D
FCL + GLL10N
FCL + GLL20N
VMF-E4
PANTONE COOL GRAY 1C
VMF-E4D
PANTONE 425C (METAL)
