AERMEC FCW 522V - Page 45

45
English

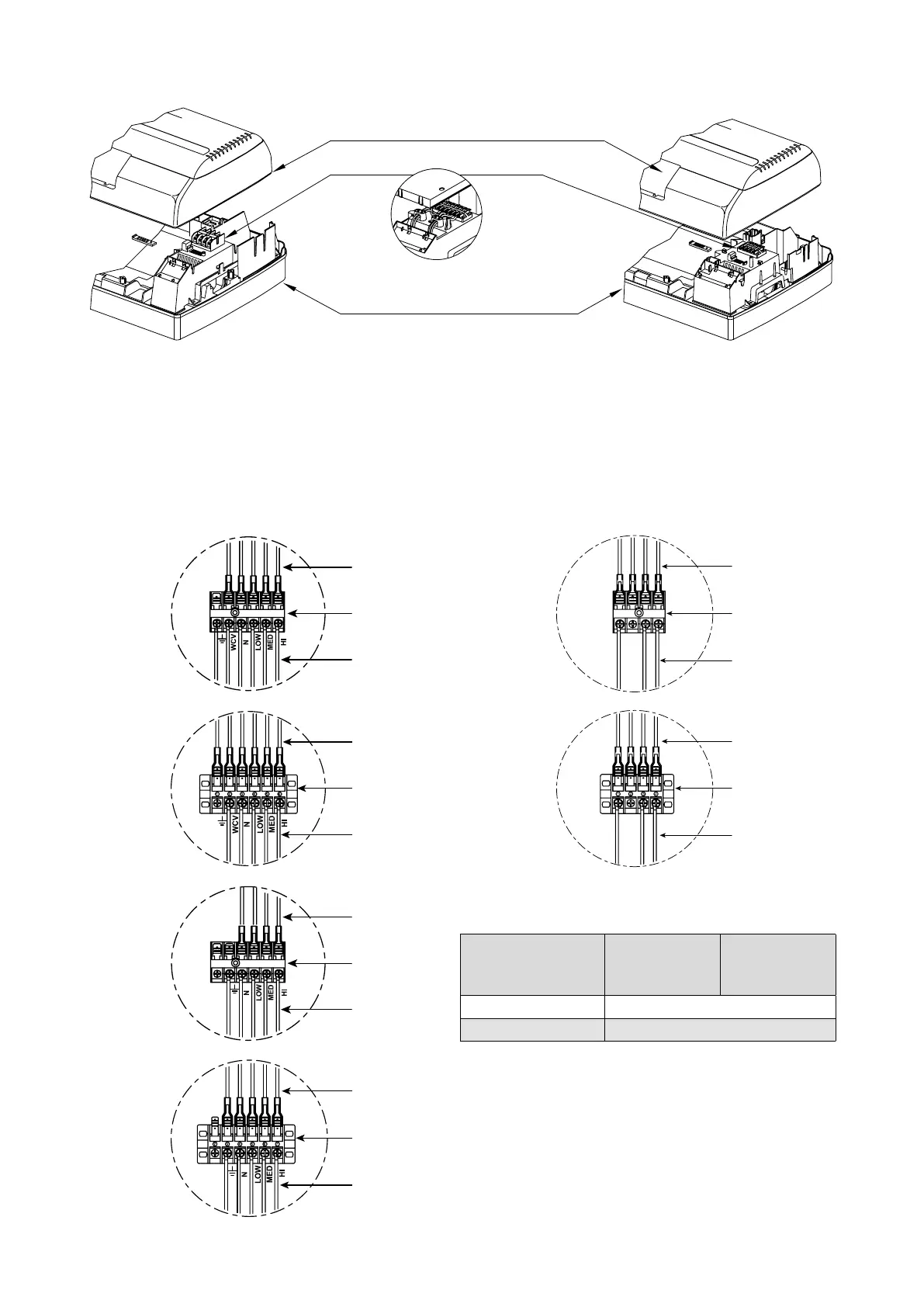

ELECTRICAL WIRING
Front panel
Power supply terminal block
Base

FCW223VN
FCW222VN
FCW323VN
FCW322VN
FCW423VN
FCW422VN
FCW22VLN
FCW32VLN
FCW42VLN
Motor
Terminal block
Connection cable
Motor
Terminal block
Connection cable
Motor
Terminal block
Connection cable
Motor
Terminal block
Connection cable
FCW223V
FCW222V
FCW22VL
FCW323V
FCW322V
FCW32VL
FCW423V
FCW422V
FCW42VL
Microprocess-
or controller
Terminal block
Connection cable
Microprocess-
or controller
Terminal block
Connection cable
FCW_2V
FCW_3V
FCW_VL
FCW_2VN
FCW_3VN
FCW_VLN
IG 2A
 1.5mm
2
WARNING:

operations on the unit.


ent circuit.

To protect the unit against short circuits,



The electrical power cable must be of the
H07 V-K or N07 V-K type with 450/750V
insulation rating if inside a tube or con-
duit. Use cables with double H5vv-F
type insulation for exposed cable instal-
lation.
Follow the wiring diagram supplied with
the equipment and shown in this docu-
ment when making the connections.
Ensure that the installation is wired in
compliance with the laws and standards
in force, and with the instructions in
this manual.
All the parts and materials supplied on
site must comply with the local laws
and regulations.
WARNING


FCW52VLN
FCW523V
FCW522V
FCW52VL
